Rheometer Mooney Viscometer

Rheometer Mooney Viscometer photo-1
Rheometer Mooney Viscometer photo-2
Rheometer Mooney Viscometer photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Application

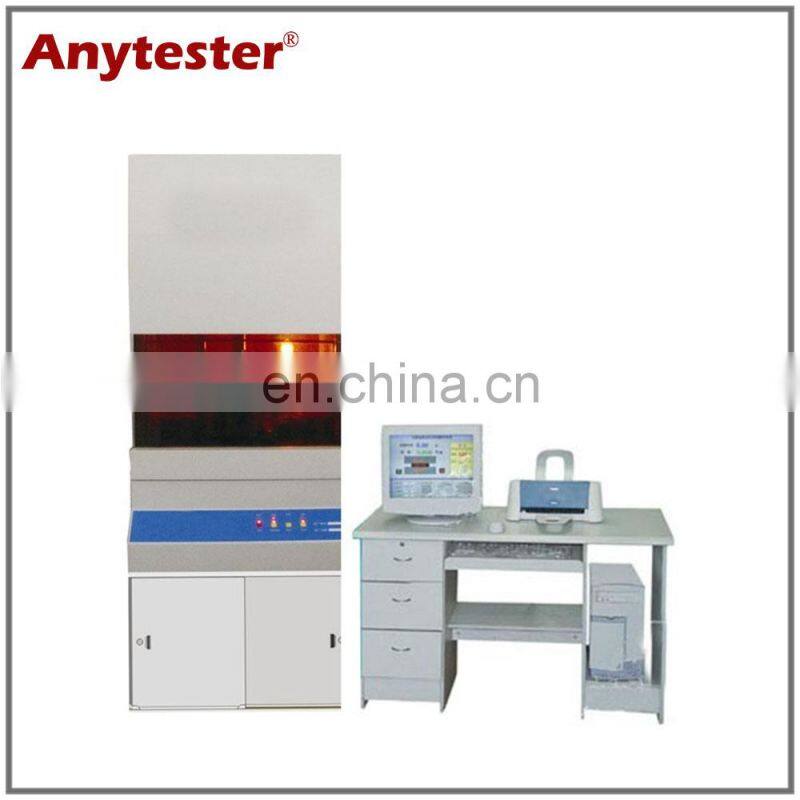

HY3320-II Mooney Viscometer is used to determine the Mooney viscosity, scorch time and vulcanization index of natural rubber, synthetic rubber and regenerated rubber.

Rheometer Mooney Viscometer

Features

High accuracy of temperature control, large temperature range

Imported integrated circuit and control components

Integrated die cavity, high accuracy

Automatically determine the torque, real-time display temperature value and set value After vulcanizing, automatically process, calculate, print Mooney curve, scorch curve and technology parameter

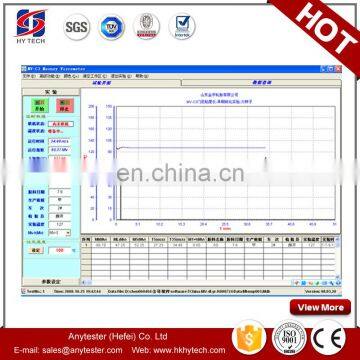

Computer real-time display test process, can directly read the changing process of temperature and time-Mooney viscosity from the computer

 It is a necessary equipment for regenerated rubber, rubber and wire and cable industries

Specification



Model

HY3320-II

Temperature range

RT~200

Temperature accuracy

≤±0.3

Test range

0~200 Mooney value

Calibration accuracy

100±0.5 Mooney value

Rotor speed

2±0.02r/min

Measuring time

Scorch: 0~200min
Viscosity: 4min or 8min

Test pressure

11.5KN ±0.5KN

Air source

0.45~0.6MPa

Power supply

AC220V 50Hz
