ISO ASTM 2000ml Pipe Falling Weight Impact Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Rubber Two Roll Mill for Laboratory Use
-
ISO 18553 Pipe Carbon Black Dispersion Tester
-
Din 53516 Abrasione Tester Rubber Abrasion Resistance Tester
-
ENISO20344 Safety Shoes Impact Tester
-
ASTM D4716 Geotextile Water Permeability Tester
-
ASTM D5994 Textured Geomembrane Core Thickness Tester With Led Display
Product Description
Product Description

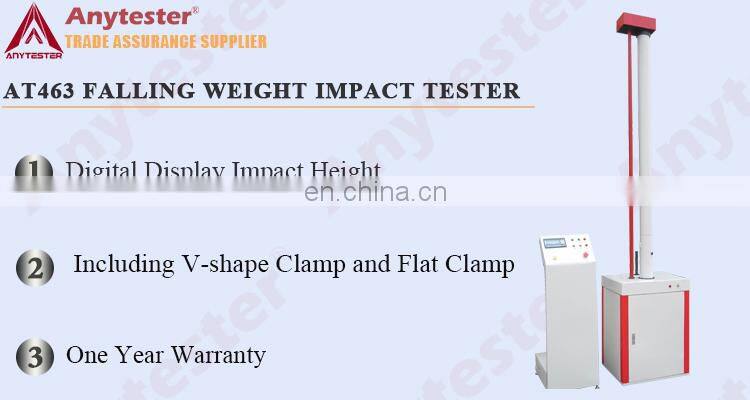

AT463 Falling Weight Impact Tester (original HY4240) is used to determine the resistance to external impact of various pipes. It is also suitable for rigid plastic sheets. Test pieces are subjected to blows from a falling striker, of specified mass and shape, dropped from a known height onto specified positions around the circumference of the test piece.

Standard
ISO 4422, 3127 | BS EN 1411, 744 | GB/T 10002.1, 10002.3, 13664, 16800, 18477 | ASTM D2444 | |||
Note: For more standards, please contact us | ||||||
Specification
Model | AT463A | AT463B | |
Striker mass | 0.250~15.000kg, increment: 0.125kg | ||
Dimensions for the nose of the striker | d25, d90 or customize | R5mm, 6.3mm, 10mm, 12.7mm, 30mm, 51mm | |
Impact height | 50mm-2000mm | 610mm-3000mm | |
Height error | ±2mm | ||
Lifting speed | 12m/min | ||
Specimen specification | Φ10mm~Φ630mm, can be customized | ||
Power supply | AC220V, 50Hz | ||
Dimensions | 800×800×3370mm | 800×800×4380mm | |
Weight | 300Kg | 350Kg | |
Details
★ Digital display impact height
★The working table can be adjusted up and down; the specimen can be automatically pointed to zero position
★ Lifting structure drives by induction brake motor
★ Adopt electromagnet to prevent the second impact
★ Seamless steel pipe structure, not easy to deformation and the resistance during the striker falling down will be smaller

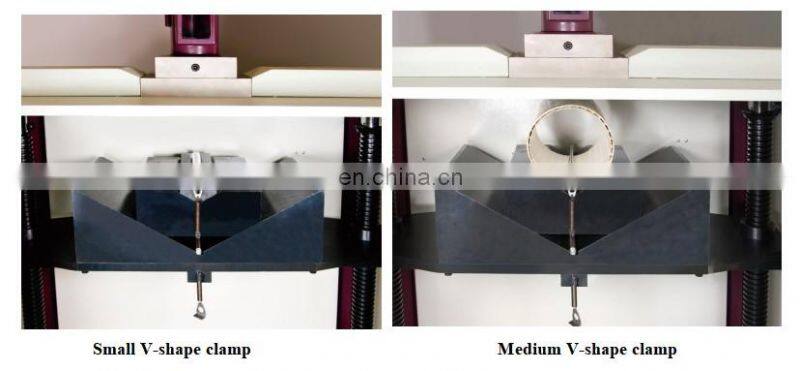

★ Two type clamps available including V-shape clamp and flat clamp

Our Company





History
Since 1982 with more than 20 years’ experience

Warranty
Two Year Warranty for whole product

Training
Video and user manual for training

Onsite service
Installation and training service is available

Testing service
Free sample testing before order is available

Lead time
15 working days lead time for most product
Packing & Delivery

Packaging | ||
Dimensions | 1160x510x1050mm | |
Weight | Approx. 80kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
