Product Description

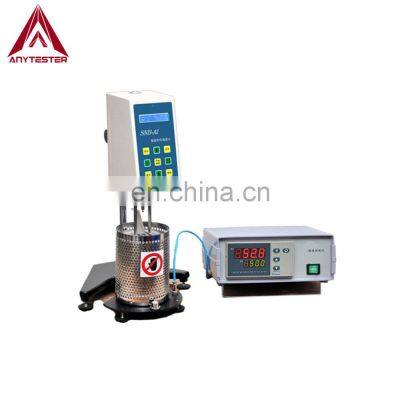

NDJ Series Digital Rotor Viscome
NDJ series Digital Rotational Viscometer is widely used to determine fluid viscosity of all Newtonian and non-Newtonian fluid, such as grease, oil, paint, plastic, food, medicine, cosmetic, glue, ink, latex, etc.
Details and Features
★Stepping motor drive without gear at an accurate and stable rotational speed, no noise, convenient and reliable
★LCD display with blue backlight function, direct display viscosity, rotational speed, percentage torque, the max. viscosity value under current speed
★ With alarm function when viscosity is out of range
★Linear correction for the whole measurement by the computer
★AC adaptor 100V- 240V, wide power input, excellent in interference immunity
★Optional 0# rotor suitable for ultra-low viscosity test, lower limit can reach 1mPa.s
★Optional RTD temperature sensor can real-time monitor sample temperature
★Optional RS232 interface, real-time printout test data through mini-printer, saving labor
★Optional heating device, it control temperature from room temperature to 250℃;
Specification
Model | NDJ-5S | NDJ-8S | |
Viscosity range | 10~100,000mPa.s (cP) (1~100,000mPa.s with 0# rotor) | 10~2,000,000mPa.s (cP) (1~2,000,000mPa.s with 0# rotor) | |
Speed | 6rpm, 12rpm, 30rpm, 60rpm selectable | 0.3rpm, 0.6rpm, 1.5rpm, 3rpm, 6rpm, 12rpm, 30rpm, 60rpm selectable | |

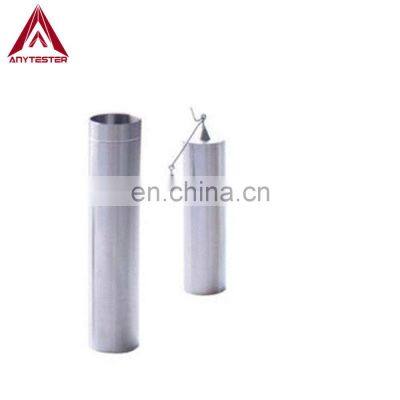

Rotor type | 1#, 2#, 3#, 4# as standard configuration, 0# is optional | ||
Measuring accuracy | ±1.0%F.S. | ||
Repeatability | 0.5% F.S. | ||
Power supply | AC110V/220V, 50/60Hz | ||
