Product Description

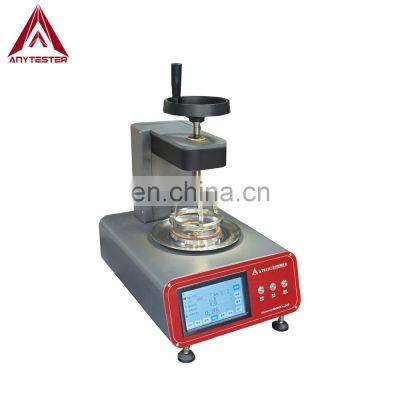

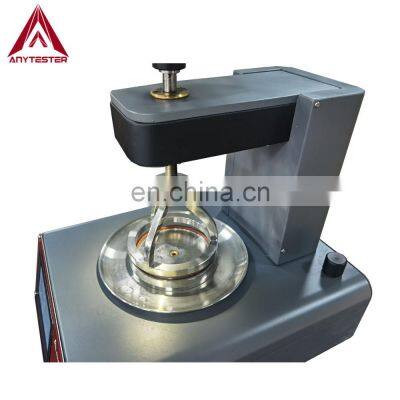

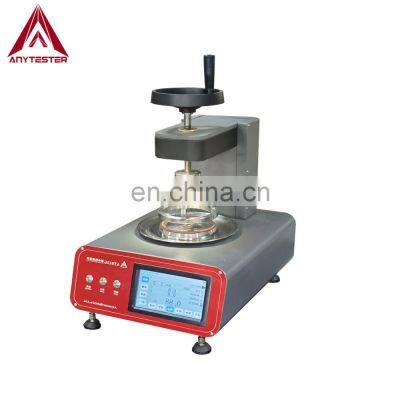

AT012G Series Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.
Specification
Model |
AT012G-5 |
AT012G-10 |
AT012G-30 |
||
Test ring diameter |
113mm |
||||
Test area |
100cm2 |
||||
Measuring range |
0 ~ 50kPa (30mH2O) |
0 ~ 100kPa (10mH2O) |
0 ~ 300kPa (5mH2O) |
||
Resolution |
0.01kPa |
||||
Measuring accuracy |
≤±0.5% F•S |
||||
Water pressure rising rate |
0.5～50kPa/min（50～5000mmH2O/min）, digital setting |
||||
Timing |
0～9999999.9 |
||||
Timing accuracy |
±0.1S |
||||
Test unit |
kPa, mmH2O, mmHg, mBar selectable |
||||
Water tank capacity |
1500ml |
||||
Power supply |
AC220V±10%, 50Hz |
||||
Power |
250w |
||||
Dimensions |
380×480×460mm |
||||
Weight |
25kg |
||||
