Product Description

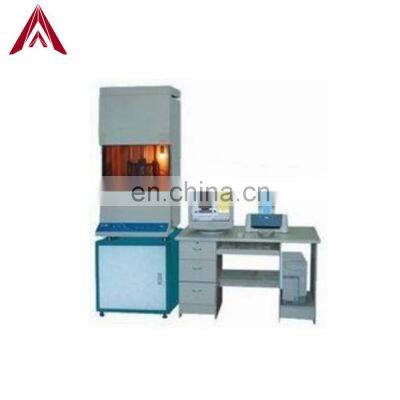

AT330 Rotorless Rheometer is used to determine the vulcanization characteristics of a rubber compound. It can dynamically display temperature curve and curve of shear modulus- vulcanization time under set temperature and pressure. It consists of main machine, temperature determination and control system, sensor, computer, data collector, printer and electrical components.
Standard
ISO 6502 | ASTM D5289 | GB/T 16584 | ||
Note: For more standards, please contact us | ||||
Specification
Model | AT330 |
Temperature range | RT+5℃~200℃ |
Temperature accuracy of die cavity | ≤±0.1℃ |
Heating time | ≤10min |
Temperature compensation rate | Within 15min to reach to set temperature after putting the specimen into die cavity |
Torque range | 0-10 Nm |
Torque resolution | 0.001 Nm |
The frequency of oscillation | 1.7Hz (100r·min-1) |
The angle of oscillation | ±0.5°, ±1° |
Power supply | AC220V 50Hz |
Dimension | 625mm×600mm×1250mm |
Weight | 240kg |
Details & Features
★ A necessary equipment to optimize formula, make production parameters and improve quality of rubber product
★ High accuracy, good repeatability and stability, convenient and practical, it can precisely find out the best vulcanizing time
★ Imported intelligent digital meter, easy to adjust and set, large temperature control range, high accuracy
★ Computer (optional) control, collect, save and save test data, printout test result
★ Test curves can be magnified and compared
★ Windows operation platform to make date processing more accurate
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
