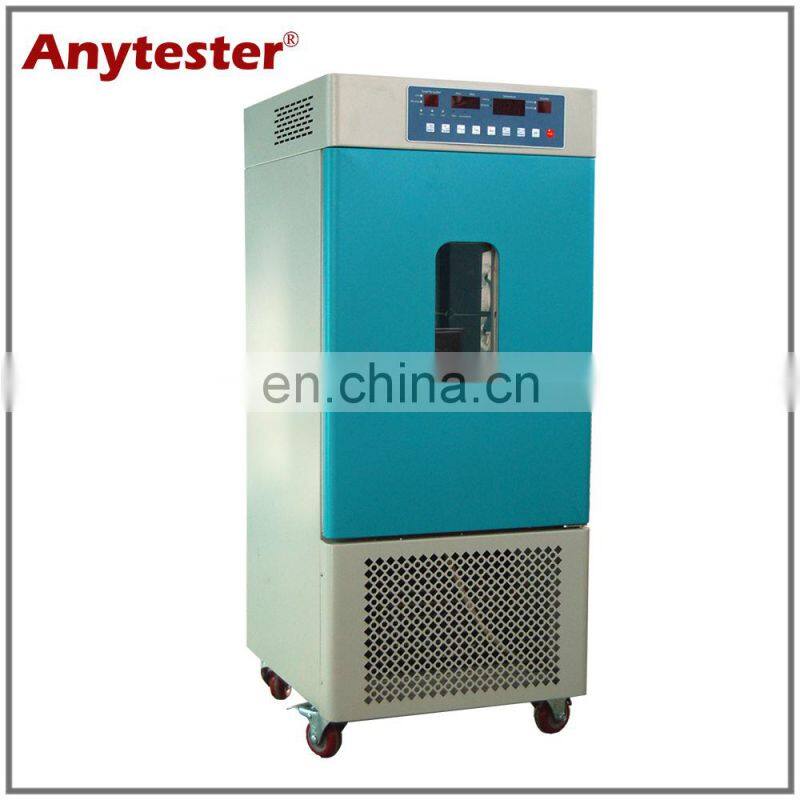

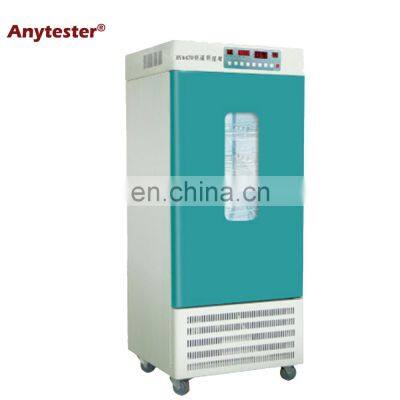

HY4470 Temperature & Humidity Chamber with precise temperature and humidity control system, is suitable for compatibility test of rubber, plastic, leather, home appliances, instrument, meter, component and other product on the condition of high temperature, low temperature and humid environment. This machine conforms to GB/T 2423.1, GB/T 2423.2, GB/T 2423.4, etc.
Note: this Temperature & Humidity Chamber can conform to but not limit to all the standards above, for more standards conformance, please contact us.
1. HY4470 Temperature & Humidity Chamber using mirror stainless steel liner, four corners of the semi-circular arc, easy to clean, the box compartment spacing is adjustable;2. With microcomputer temperature controller, temperature control is accuracy and reliability; Controllers, compressors and other key components use imported products;
3. With temperature deviation sound and light alarm function, low temperature automatically stop humidification function;
4. There is a 50mm diameter test hole in side, easy to test operation and measurement of temperature;
5. With ground protection, compressor delay protection, over current protection;
6. With over-temperature alarm prompt function;
7. With work ending alarm;
|
HY4470-50 |
HY4470-100 |
HY4470-150 |
HY4470-250 |
HY4470-150D |
|
|
Temperature range |
4~60℃ |
-8~60℃ |
|||
|
Temperature resolution |
±0.1℃ |
±0.1℃ |
|||
|
Temperature uniformity |
±2℃ |
±2℃ |
|||
|
Humidity range |
50%-95%RH |
60%-85%RH |
|||
|
Humidity fluctuation |
±3%~±5%RH |
±3%~±5%RH |
|||
|
Dimensions of working chamber(mm) |
350×360×400 |
450×450×505 |
500×370×800 |
550×445×1100 |
500×370×800 |
|
External dimensions(mm) |
475×630×1135 |
475×630×1135 |
620×600×1480 |
680×680×1750 |
620×600×1480 |
|
Input power |
400W |
500W |
500W |
680W |
800W |
|
Power supply |
220V 50Hz |
||||
