Help CenterHydrostatic Pressure Resistance Test Apparatus For Geomembrane
Related Products
-
Water Tank for the Hydrostatic Pressure Tester With Refrigerating SystemNegotiableMOQ: 1 -
Thermal Cycling TesterNegotiableMOQ: 1
-
ISO 527 Plastic Film Strip Sample CutterNegotiableMOQ: 1
-
ISO 60 Plastic Apparent Density TesterNegotiableMOQ: 1
-
ASTM D1693 Environmental Stress Cracking TesterNegotiableMOQ: 1

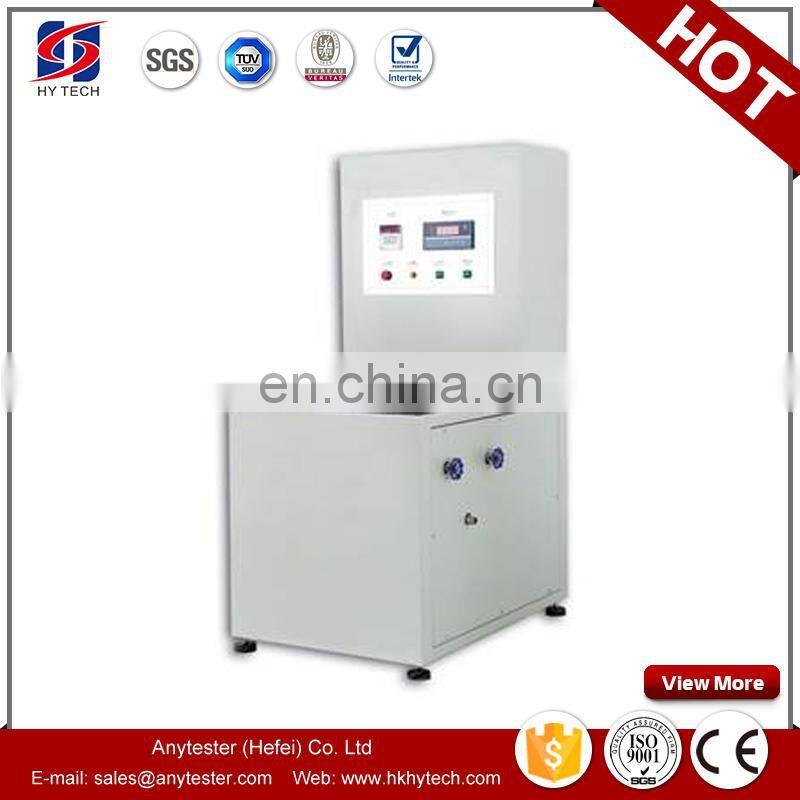

HY2360 Hydrostatic Pressure Resistance Test Apparatus is used to determine the resistance to hydrostatic pressure and the permeability coefficient of geomembrane, geocomposites consisting of one or two layers of non-woven geotextile and one layer of membrane and other waterproof membrane materials under specified hydraulic pressure differences.
|
JTG E50 T1142 |
GB/T 19979.1, GB/T 19979.2 |
|
Note: this Hydrostatic Pressure Resistance Test Apparatus can conform to but not limit to all the standards above, for more standards conformance, please contact us.
1. 2 test item: resistance to hydrostatic pressure and permeability coefficient
2. 2Cr13 stainless steel clamps and porous board
3. Three time units: hour, minute and second, selectable
4. Pressure mode: Hydraulic pressure and air pressure
5. High-precision pressure measuring device
|
Model |
HY2360 Hydrostatic Pressure ResistanceTest Apparatus |
|
Capacity of permeated water collection tube |
15ml |
|
Readability of permeated water collection tube |
0.1ml |
|
Inner diameter of catchment |
¢200±5mm |
|
Diameter of holes on porous board |
3±0.05mm |
|
Space between holes on porous board |
6mm |
|
Pressure measuring range |
0~2.5Mpa |
|
Pressure measurement resolution |
0.01Mpa |
|
Accuracy of pressure control |
±2% |
|
Power supply |
AC 220V 50Hz |
|
Dimensions |
600×850×1360mm (L×W×H) |
