Product Description

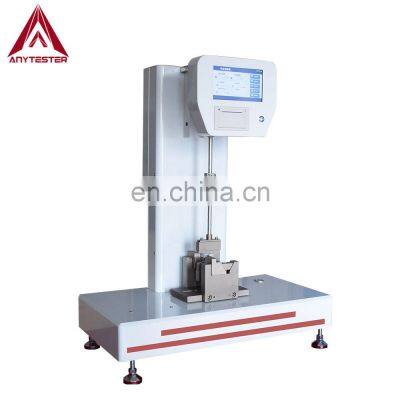

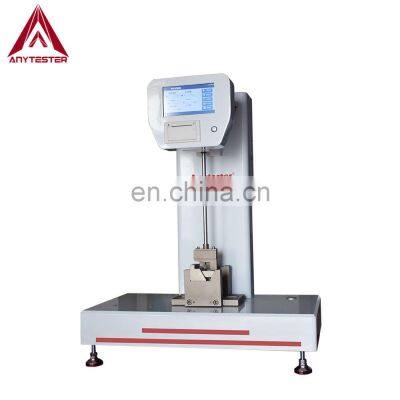

Series Digital Izod Impact Tester
AT422D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.
Features
Model | AT422DA | AT422DB | |
Impact velocity | 3.5m/s | ||
Impact energy | 2.75J, 5.5J | 11J, 22J | |
Impact center distance | 335mm | ||
Pendulum angle | 150° | ||
Distance between striking edge and top surface of jaw | 22.0mm±0.2mm | ||
Corner radius of striking edge | R=0.8mm±0.2mm | ||
Power supply | AC220V, 50Hz | ||
Dimensions | 700*350*850mm | ||
Weight | 120kg | ||
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Packing & Delivery
Packaging | ||
Weight | 120kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
