Product Description

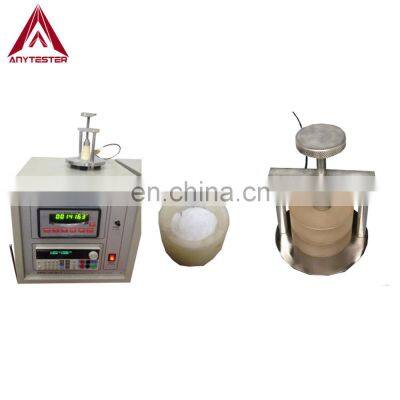

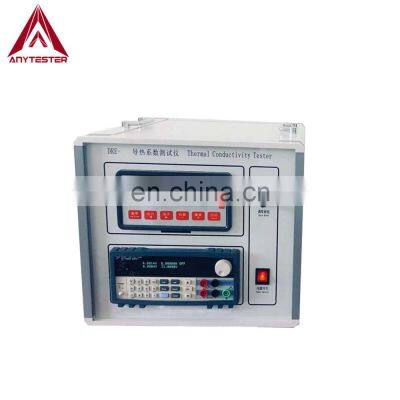

DRE-III High Temperature Heat Conductivity Coefficient Tester is used to determine the heat conductivity coefficient, temperature conductivity coefficient(Thermal diffusivity) and specific heat capacity of solid or powder materials. With high-precsion, high-resolution and excellent repeatability, it is widely used in research universities, quality inspection departments and other departments. This tester adopts the transient plane heat source method, based on the TPS transient plane heat source technology, and uses a Hot Disk probe.
Standard
ISO 22007-1, 2 | GB/T32064 |
Specification
Model | DRE-III | |
Thermal conductivity measuring range | 0.001～500 w/(m.k) | |
Thermal diffusivity measuring range | 0.1～100 m2/s | |
Heat storage coefficient range | 0.1～30 w/(m2.k) | |
Specific heat capacity range | 0.1～5 kJ/(kg.℃) | |
Thermal resistance range | 0.5～0.000005 mm2.k/w | |
Sample test ambient temperature range | RT(-40~150℃ can be customized) | |
Temperature accuracy | ≤0.001℃ | |
Measurement relative error | ≤3% | |
Repeatability error | ≤ 3% | |
Test time | 1～120 seconds | |
Probe configuration | diameter Φ15mm(standard configuration) | |
Power supply | AC220V 50Hz, single-phase 500w | |
Specification of Hot Disk probe | ||
Heating material | Metal nickel | |
Operating temperature | -50～150℃ | |
Maximum power | 20w | |
Maximum voltage | 20V | |
Maximum current | 1A | |
Protective layer material | Polyimide film(Kapton) | |
Nickel wire specification | thickness 0.01mm | |
Details & Features
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 420×260×630mm | |
Weight | 60kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
