Product Description

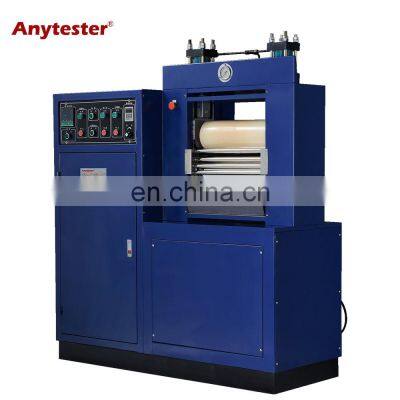

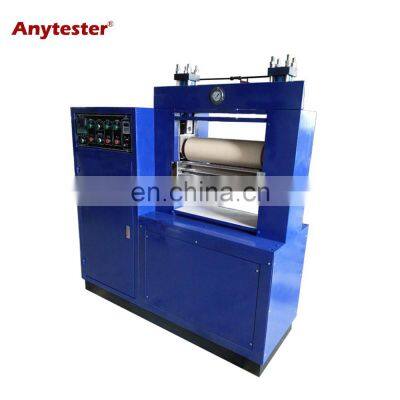

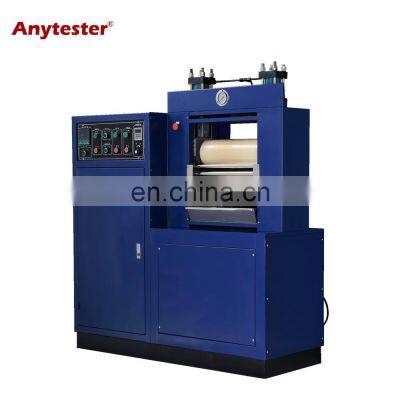

HY0131 Laboratory Calender is specially designed for calendaring test in laboratory. It is a finishing machine for various textiles after printing and dyeing, such as pure cotton, chemical fiber, hemp, wool spinning and blending fabrics. It can make fabric luster and smooth.
Specification
Model |
HY0131 |
Roller
|
2pcs
width:400mm, dia.:150mm
|
Max. working width |
500mm |
Working speed |
0~6m/min |
Max. temperature |
180℃ |
Max. pressure |
100T, hydraulic type |
Heating method |
Electric heating, 3kw |
Power supply |
380V, 50Hz |
Max. Power |
4kw |
Dimensions |
1430×600×1650mm |
Weight |
1200kg |
Details
1.It consists of roller driving system, hydraulic loading system, roller cooling device, etc.

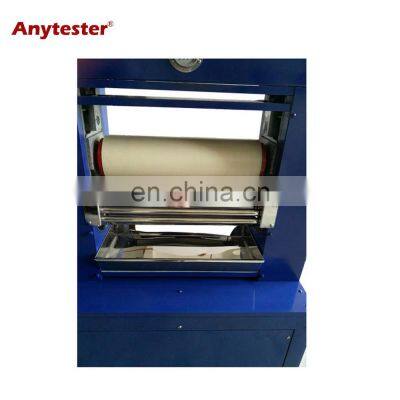

2.Upper roller is gravity nylon roller and lower roller is chrome plated heating roller treated with mirror grinding.
3.It’s equipped with emergency stop button on the control panel. The motor has reverse function, once the machine stop after pressing safety button, the motor will turn back.
4.The roller running speed and work pressure between the rollers are all adjustable.
