Help CenterLab Salt Spray Test Chamber Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM Plastic Pipe Pressure Testing Hydrostatic Pressure Tester With 6 PositionsNegotiableMOQ: 1 -
25T Rubber Hydraulic Vulcanizing Press MachineNegotiableMOQ: 1
-
Apparent Density Meter Plastic Bulk Density TesterNegotiableMOQ: 1
-
ASTM D1693 Environmental Stress Cracking Tester uo to 95 DegreeNegotiableMOQ: 1
-
Capillary Viscometers Viscosity TesterNegotiableMOQ: 1
Product Description

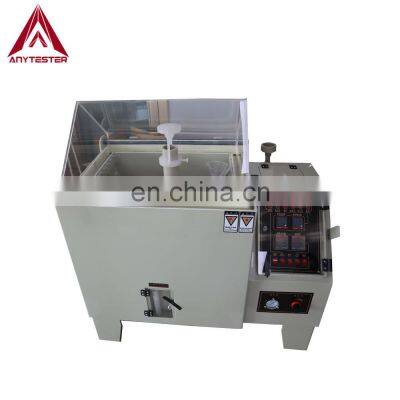

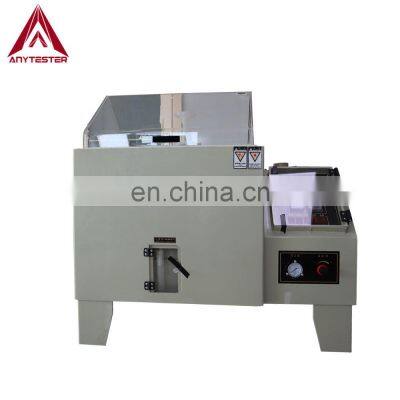

AT-YW Series Salt Spray Chamber is used to determine the corrosion resistance to salt fog of specimens. It is used for evaluating the quality and the uniformity of materials surfaces.
This machine conforms to ISO 9227, ASTM B117, DIN 50021, GB/T 2423.17, GB/T 2423.18, etc.
Schematic diagram:
The chamber adopts high quality material and advanced technology, corrosion resistant, smooth and easy to clean, no leakage phenomenon.
It equipped with a variety of specimen supports, convenient for placement of all kinds of specimens to test.
Specification
Model |
AT-YW60 |
AT-YW90 |
AT-YW120 |
AT-YW160 |
AT-YW200 |
||||
Inner dim. (cm) |
60×45×40 |
90×60×50 |
120×85×50 |
160×100×50 |
200×100×60 |
||||
External dim. (cm) |
110×67×118 |
141×91×122 |
200×115×145 |
240×135×145 |
280×135×155 |
||||
Test chamber volume |
108L |
270L |
600L |
680L |
800L |
||||
Salt water tank volume |
15L |
25L |
40L |
40L |
60L |
||||
Material Thickness |
5mm |
6mm |
8mm |
8mm |
10mm |
||||
Test chamber temp. |
RT＋5℃~50℃ |
||||||||
Fog quantity |
1～2ml/h.80cm2 |
||||||||
Temp. fluctuation |
≤±0.5℃ |
||||||||
Spray tower |
Independent designed acrylic conical disperser, can adjust the flow of the spray, and can make the fog uniform |
||||||||
Spray nozzle |
PYREX glass precision nozzle |
||||||||
Spraying mode |
Continuous and intermittent spray selectable |
||||||||
Timing range |
0-9999.9h |
||||||||
Interval time |
0~99.9 h |
||||||||
Power supply |
AC220V, 50Hz |
||||||||
Details & Features
★ Innovative design, chamber structure, easy to install and maintain, stable and reliable;
★ Chamber cover adopts transparent acrylic sheet, 5mm thick, high temperature resistant;
★ Adopts U-shaped alloy heating tube, fast to heat, with resistance to acid and alkali corrosion, long service life;

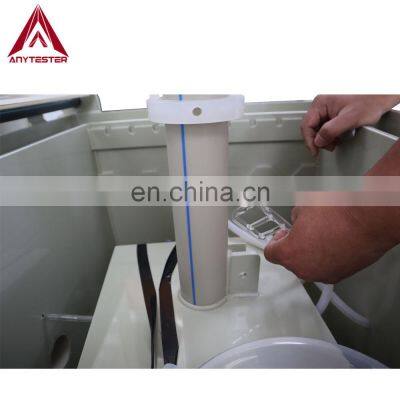

★ Independent designed acrylic conical atomizer, can adjust the flow of the spray, and can make the fog uniform;
★ Pressure regulating valve adopt concave type design, to prevent wrong operation, and save space.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging |
||
Dimensions |
3100×850×1750mm(L×W×H) |
|
Weight |
Approx.1000kg |
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
|||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd
|
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
