Product Description

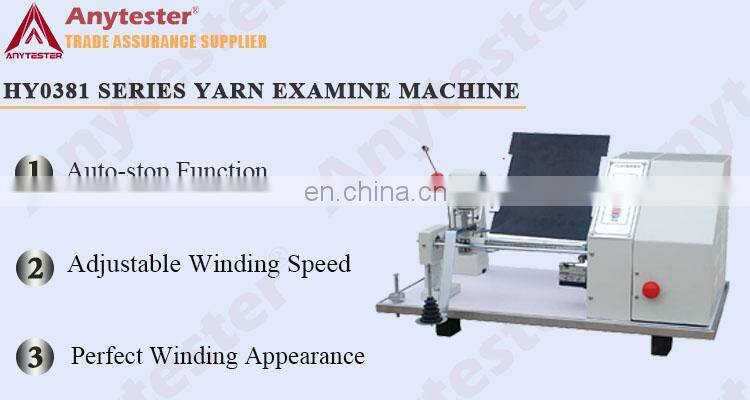

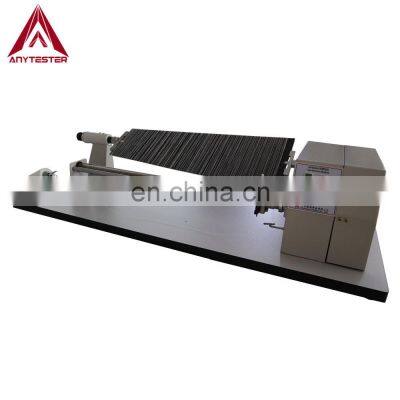

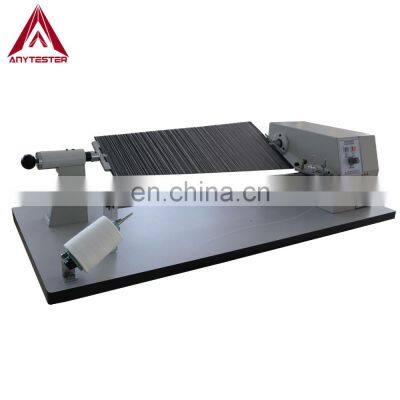

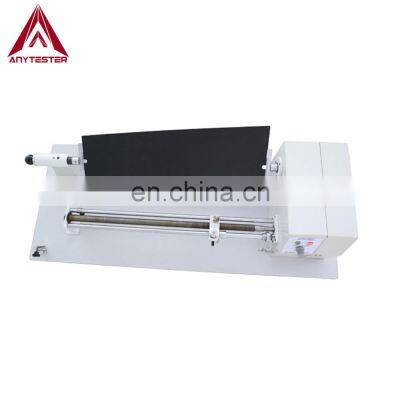

HY0381 Series Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.
Standard
ASTM D2255 | GB/T 398, 5324, 9996 | FZ/T 32004, 32005 |
Specification
Model | HY0381 | HY0381A | HY0381M | ||
Board size | 220×250mm (L×W) | 575mm×250mm×160mm (L×W1×W2) | 300×225mm (L×W) | ||
Board shape | quadrate | tapered | quadrate | ||

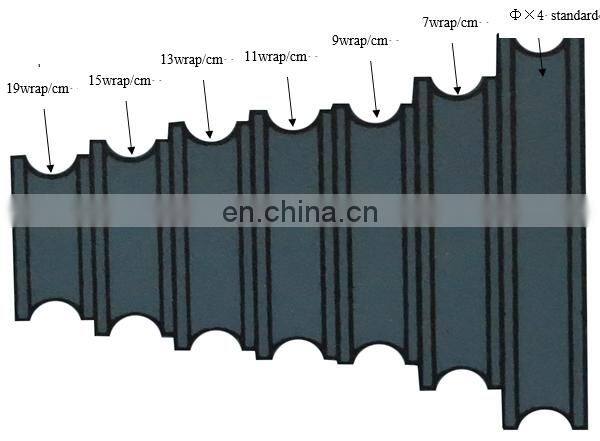

Yarn winding density | 7, 9, 11, 13, 15, 19wraps/cm | 35, 40, 45, 50wraps/10cm | |||
Rotational speed | 10~400RPM (adjustable) | ||||
Power supply | AC220V 50Hz, 55W | ||||
Dimensions (L×W×H) | 620×370×340mm | 1000×370×300mm | 620×370×340mm | ||
Weight | 30Kg | 35Kg | 30Kg | ||
Details & Features

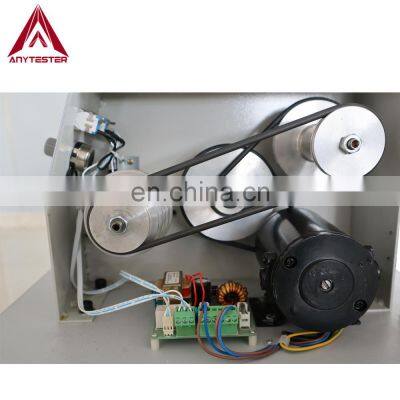

★ Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test
★ Various pitches to satisfy comprehensive requirements of different yarn linear density;
★ Two type board for selection, white board for black yarn (HY381A)

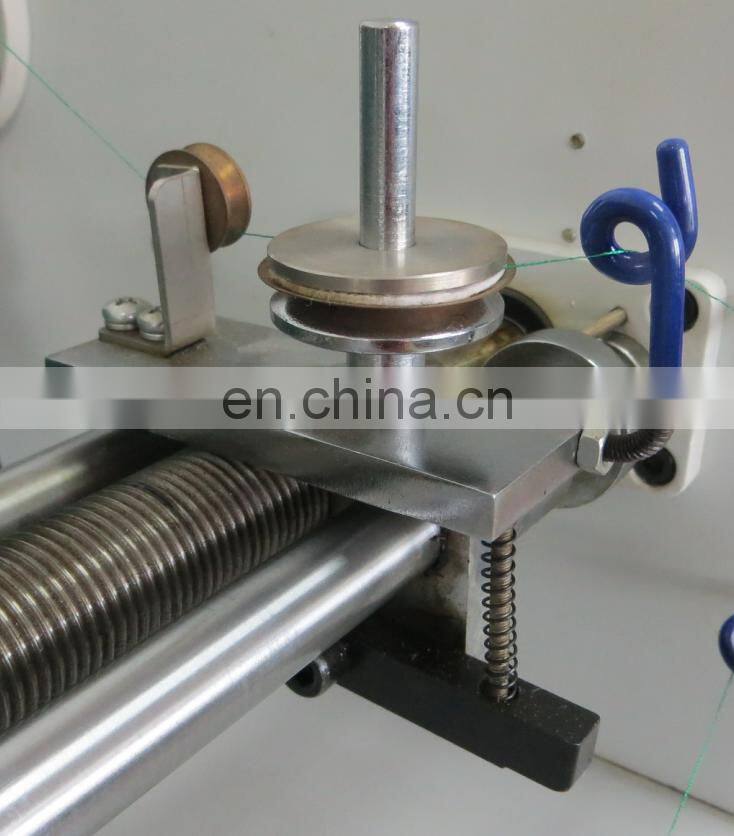

★ Equipped with alternative pre-tension device
★ Auto-stop function
★ Adjustable winding speed
★ The material of board is aluminum, it’s more durable.

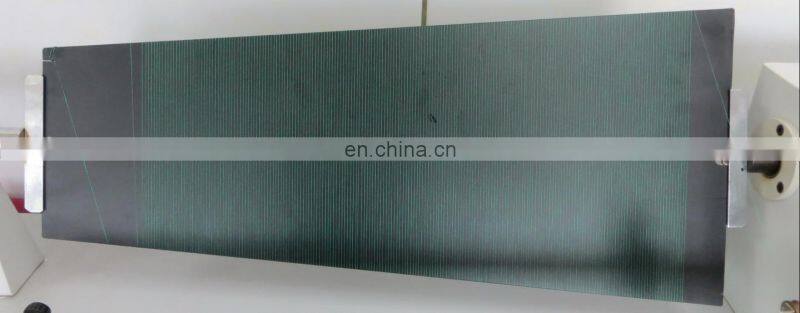

★ Perfect winding appearance
