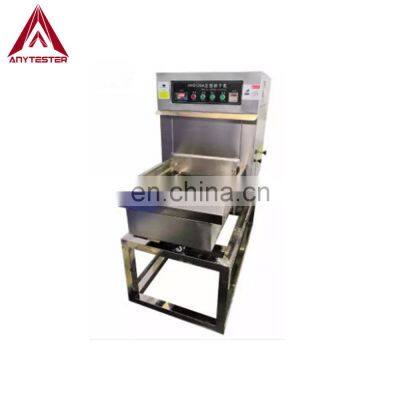

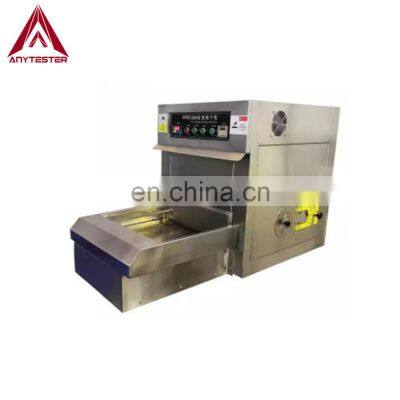

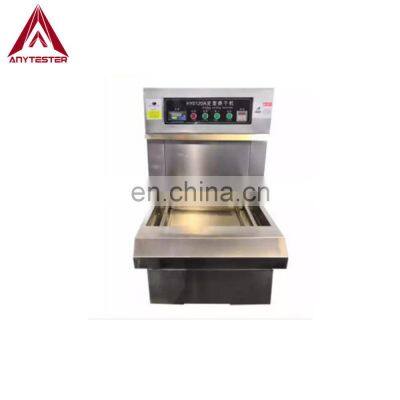

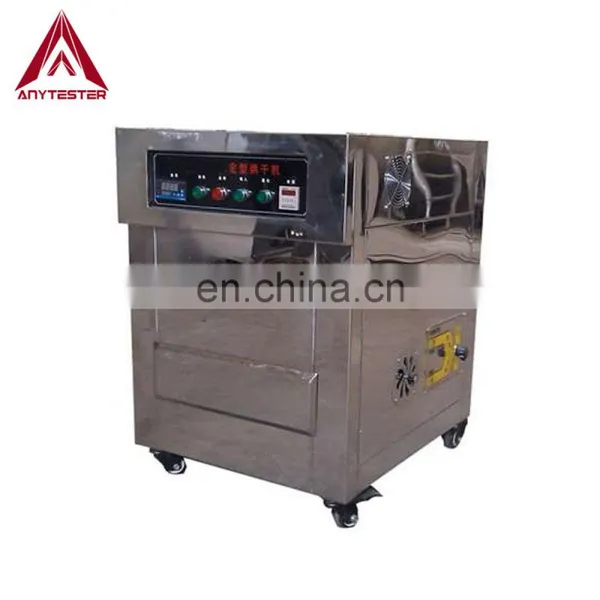

Small Laboratory Use Mini Dryer Stenter for Pneumatic Heavy Duty Padder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM D1630 Color Assessment CabinetNegotiableMOQ: 1 -
High Quality Laboratory Tanning Dye Machine for LeatherNegotiableMOQ: 1
-
Easy Operate Notched Constant Tensile Load TesterNegotiableMOQ: 1
-
ASTM D1630 Color Assessment CabinetNegotiableMOQ: 1
-
Electronic Textile Count Balance Capacity 500gNegotiableMOQ: 1
Product Description
AT289 Series Mini Dryer/Stenter can be used with lab padder and applicable for all labs dyeing, setting, resins baking colors and some other process. It can simulate spot conditions to test the hardness and quality influence of dyes, auxiliaries and finishing auxiliaries.
Working Process:
Prepare sample and frame → feed in sample automatically → Machine working and timing → Discharging sample, machine stop working and alarm ring.
Specification
Model |
AT289A |
AT289B |
|||
Temperature range |
RT.~ 2500C |
||||
Temperature accuracy |
±2% |
||||
Humidity range |
15%-100% |
||||
Time range |
0.1 ~ 999s |
||||
Pin frame |
300mm*400mm |
||||
Effective size |
300mm*350mm |
||||
Water consumption |
30kg/hr |
||||
Power supply |
380V, 50Hz |
||||
Dimensions |
730*1360*840mm |
900*1360*1000mm |
|||
Weight |
120kg |
180kg |
|||
Details & Features
★ Drying time is settable
★ Automatically feeding sample and discharging
★ Precision temperature control system with cyclic hot air system, hot air flow can be control
★ Special designed needle frame is applied for both plain stitch cloth and knitted fabric
★ The tension of warp and weft direction both can be adjusted.
★ AT289B equipped with steamer generator
★ Machine frame is made from SUS304
★ Machine equipped with alarm when program finish
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging |
||
Dimensions |
720×360×1450mm |
|
Weight |
85kg |
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
|||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd
|
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
