Product Description

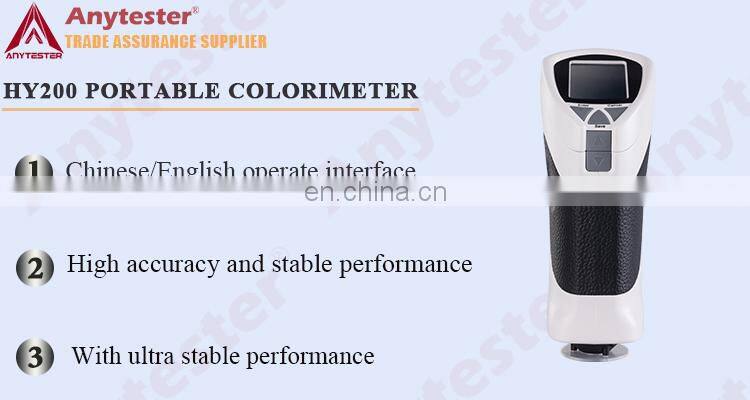

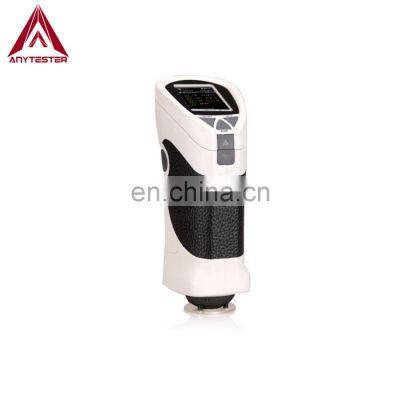

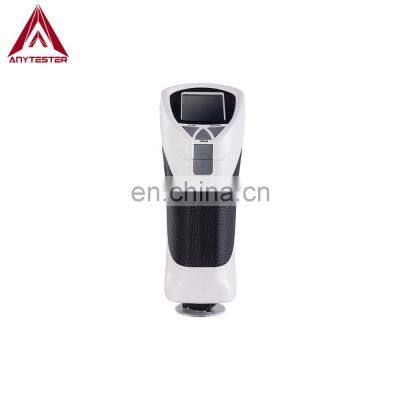

HY200 Portable Colorimeter is used to measure the color difference of samples with the standard sample. It is widely used in plastic, rubber, coating, spray paint, metal spraying, electroplating, leather, building material, printing, fittings and other industries.
Specification
Model | HY200 |
Illumination System | 8/d (8。I diffused illumination), specular component included (SCI) |

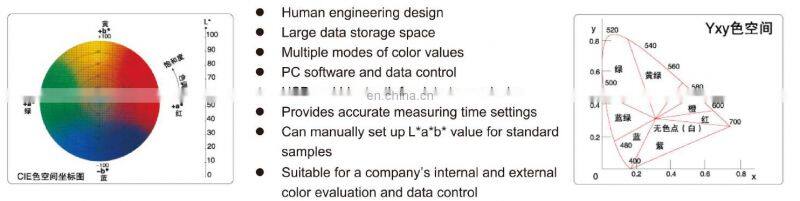

Display modes | Colorimetric values: L *a*b, ΔL*c*h , ΔE*ab, XYZ, relative RGB values; Colorimetric values: L *a*b, ΔL*c*h , ΔE*ab, XYZ, relative RGB Whiteness values: Hunter whiteness, Ganz whiteness Yellowness value: YI |
Measuring caliber | About φ8mm |
Measuring conditions | CIE10° standard observer; CIE 065 light source |
Measuring range | L*· 1~100 |
Repeatability | Standard deviation within ΔE*ab 0.08 (condition: measure the white calibration board 30 times for average) |
Storage | 100 sets of standard samples; up to 100 sets of test sample under each standard sample |
Measuring time | About 0.5 seconds |
Measuring light source | LED |
Interface languages | Chinese, English |
Power source | Four AA 1.5V Alkaline battery or nickel metal hydride batterys Exclusive DC5V adapter |
Port | USB2.0, printer |
Size | 77×86×210mm |
Weight | 550 |
Details & Features
★ Obtained Chinese Metrology Accreditation
★ High performance-price ratio among similar products
★ Both Chinese and English language options
★ High accuracy and stable performance
★ PC software for data and statistical management
★ Suitable for a company’s internal and external color evaluation and data control
★ Energy saving design, USB and Bluetooth (optional) data connection
★ Yellowness and whiteness measurement
★ Multi-point measurement for averaging
★ Large data storage space
★ Ultra stable performance
★ Display precision 0.01
★ Repeatability precision ΔE ’s standard deviation 0.08
★ Can measure whiteness or yellowness

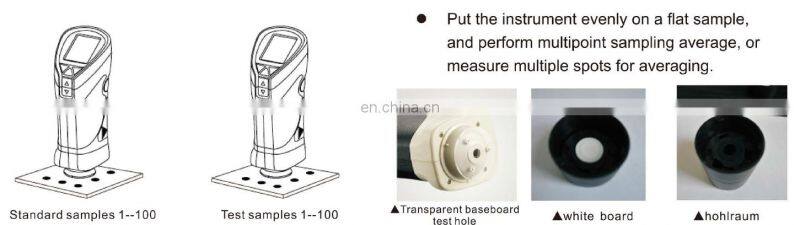

★ Measure at multiple spots for average
★ Enhance the measure accuracy through white and black calibration
★ Professional design, powerful instrument functions
★Measure in multiple spots and calculate the average
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
