High Quality Vertical Horizontal Type Pneumatic Heavy Duty Padder for Dyeing
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Fiber Yarn HTHP Jet Hank yarn Dyeing Machine
- High Temperature High Pressure Bobbin Yarn and Fabric Sample Dyeing Machine
- sock knitting machine hosiery Circular hosiery knitting machine Up to 13 colors
- Cotton Wool Yarn Evenness and Hairiness Tester
- lab single yarn sizing machine
- 12 Spindles Laboratory Twisting Machine with Touch Screen
Product Description
Product Description

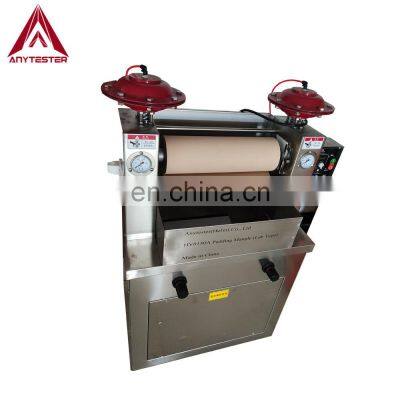

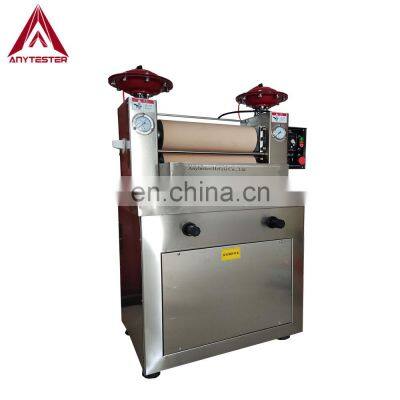

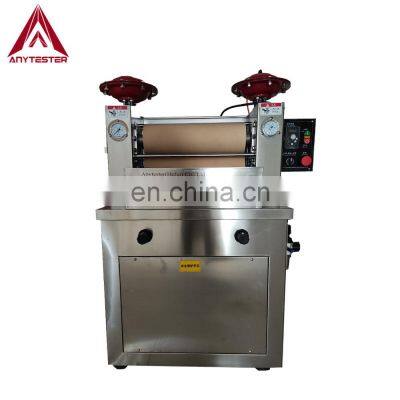

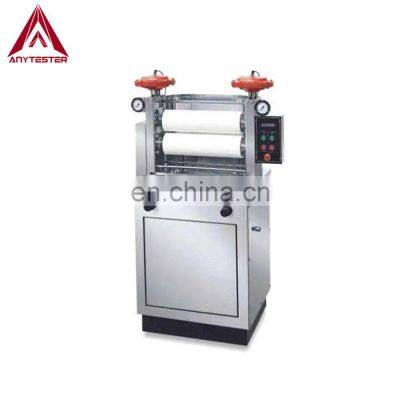

HY0130 Series Pneumatic Heavy Duty Padder is used to check the quality of auxiliary can is widely used in dyeing and finishing plant, manufacture of auxiliary and dye.
Nowadays customer has a high requirement on textile quality, not only the precise color but also the comfortable hand-feeling. You can use this padder to simulate the real production environment and get high repeatability sample. Also you can use this machine to develop more dyeing technology such as fireproofing, dust-resistant, oil-resistant, water-repellent, breathable etc. This padder is an ideal solution to cut down the waste of time and invest due bad dyeing technology.
Specification
★ High quality NBR rubber and stainless steel ensure a long time life, also have a good appearance
★ Use two separate pneumatic cylinders to drive the membrane to provide uniform pressure to the roller.
★ NBR rubber and pressure-absorbing rate 20 ~ 110% make the machine can be widely used for most textile
★ Better safety system. It’s equipped with Knees touch stop button and emergency stop button on the control panel. The motor has reverse function, once the machine stop by safety button, the motor will turn back.
★ It equipped with cleaning spray gun to clean the padder, make it expediently
★ Removable liquor tank make it easy to change and clean.
Details & Features
Model | HY0130A | HY0130B | |
Type | Vertical | Horizontal | |
Roller length | 420mm | ||
Roller diameter | 130mm | ||
NBR Rubber hardness | 700shore | ||
Roller speed | 0 ~ 18RPM adjustable | ||
Max. pressure | 0.6MPa | ||
Pressure division | 0.01MPa | ||
Power supply | 220V, 50Hz | ||
Dimensions | 900*800*1230mm | 900*650*1200mm | |
Weight | 160kg | 160kg |
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container |
