lab single yarn sizing machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- 12 Spindles Laboratory Twisting Machine with Touch Screen
- portable digital-type shore hardness tester
- electronic yarn count system
- AATCC 195 Textiles Liiquid Moisture Management Tester MMT
- ASTM D2255 Textile Yarn Examining Machine with Factory Price
- Lab Yarn Weaving Machine Full Automatic Rapier Sample Loom
Product Description
Product Description

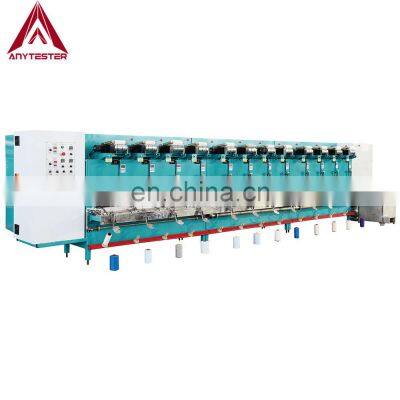

AT240 Series Single Yarn Sizing Machine is suitable for yarn sizing of cotton, flax, silk, wool, synthetic filament, etc.
As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specification
Model | AT240 |
Number of spindles | 2, 4, 8, 12 or customized |
Sizing speed | 20~300m/min controlled by invertor and adjustable according to yarn kind |
Heating method | Steam heating or electric heating (optional) |
Applicable yarn density | 5~500tex, cotton, wool silk or chemical fiber |
Motor power of rotation frame | 0.18KW per spindle |
Motor power of grooved drum | 0.75KW per spindle |
Heating power of oast | 1.8KW per spindle |
Motor power of heat circulation | Approx.1.lKW |
Power supply | AC380V 50Hz, three-phase |
Dimensions | 3100×850×1750mm(L×W×H) for 4-spindle machine |
Weight | 1000kg for 4-spindle machine |
Details & Features
Overview of AT240

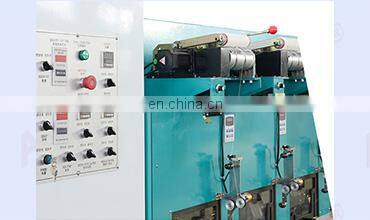

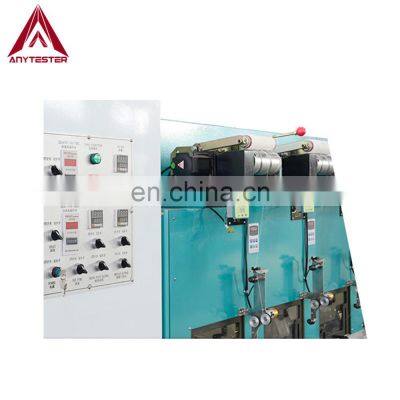

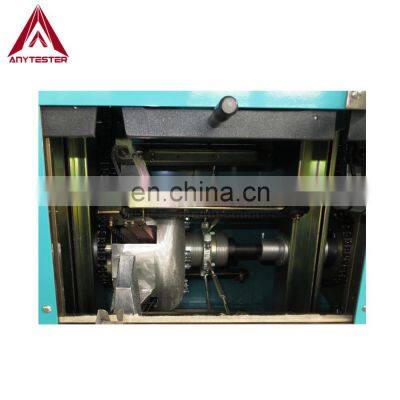

★Independent control of each spindle, digital display of tension index and digital display of speed of rotating frame and counting of length. And rotating frame storing 160 turns of yarn on it to increase the drying time
Automatic Tension Control

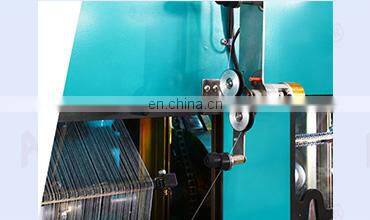

★single spindle control, the frequency controller or steeples controller is used for cabbage rotational motor in drying room. The yarn guide cylinder is traced by the servo.
Automatic Speed Control

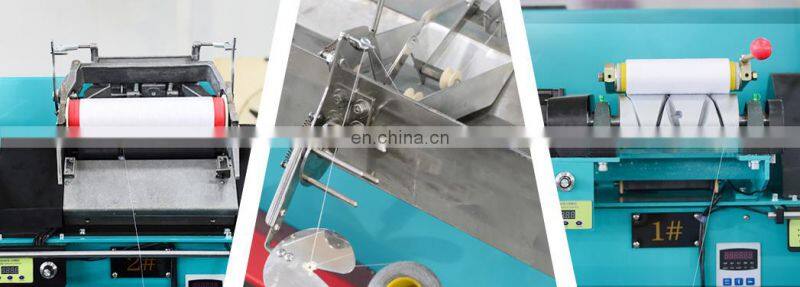

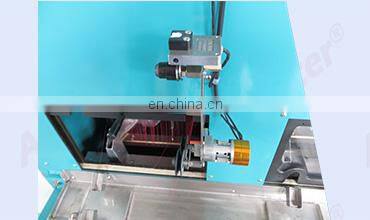

★Grooved drum controlled by servo motor and its rotation speed is automatically adjusted according to the speed of rotating frame to control the yarn tension
★Independent control of each spindle with digital display of speed and length;
★Motor of rotating frame controlled by interver or stepless-adjustable speed controller and grooved drum controlled by servo motor tracing the speed of rotating frame for automatic tension control;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 3100×850×1750mm(L×W×H) | |
Weight | Approx.1000kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container |
