ASTM D3787 Electronic Tensile Yarn Strength Tester 3 KN With Two Load Ranges
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Vertical Horizontal Type Pneumatic Heavy Duty Padder for DyeingNegotiableMOQ: 1 -
Fiber Yarn HTHP Jet Hank Yarn Dyeing MachineNegotiableMOQ: 1
-
High Temperature High Pressure Bobbin Yarn and Fabric Sample Dyeing MachineNegotiableMOQ: 1
-
Sock Knitting Machine Hosiery Circular Hosiery Knitting Machine Up to 13 ColorsNegotiableMOQ: 1
-
Cotton Wool Yarn Evenness and Hairiness TesterNegotiableMOQ: 1
Product Description

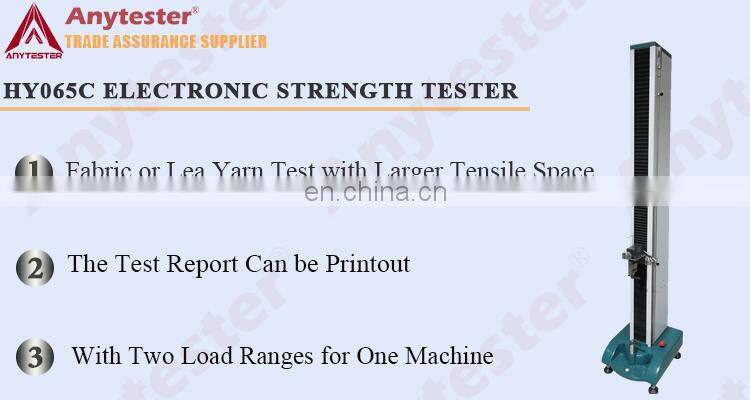

HY065C Electronic Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials, such as yarn, fabric, geotextile.
Standard
ASTM D3787, 4964,5034, 5035 | ISO13937, ISO 5081 | DIN 53859, DIN 53858 | ||
BS3320, BS4303, BS2576 | GB/T 3923.1, GB/T 3917 | JIS L1096 | ||
Note: For more standards, please contact us | ||||
Specification
Model | HY065C |
Load range | 120N, 3000N, changeable |
Gauge length | 25~500mm, adjustable |
Tensile speed | 2mm/min～1200mm/min, settable |
Return speed | 2mm/min～1000mm/min |
Timing stretch | 20s±3s, 30s±5s |
Test times | 99times max. |
Elongation range | 350% max. while set 200mm gauge length |
Power supply | AC220V±10%, 50Hz |
Dimensions | 380mm×480mm×1450mm (L×W×H) |
Weight | 122kg |
Details & Features
★ It is not only used for fabric test (standard configuration), but also for lea yarn test with larger tensile space (optional configuration)
★ Adopt CRE measurement mechanism, micro-computer control, large LCD display, automatic data processing
★ Can be connected with computer to achieve more analysis function, real-time display test curve, breaking force, elongation, yield stress, yield elongation, force at rupture, initial modulus, CV value, etc.

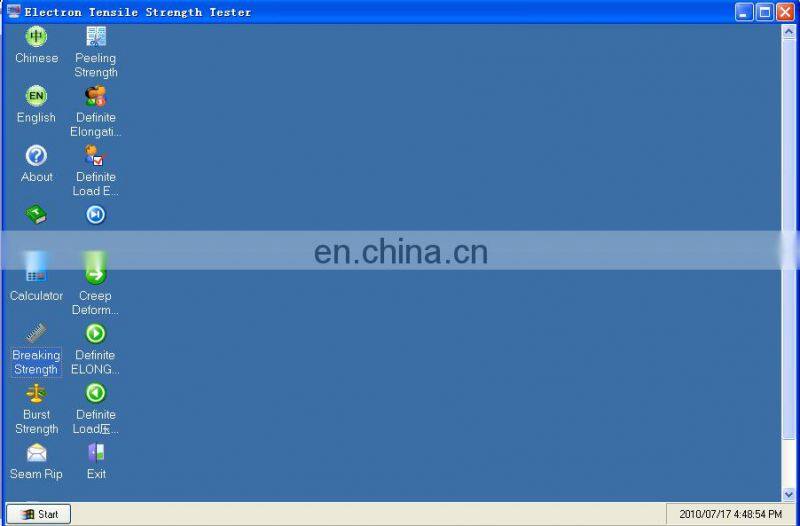

Figure 1: On-line software interface

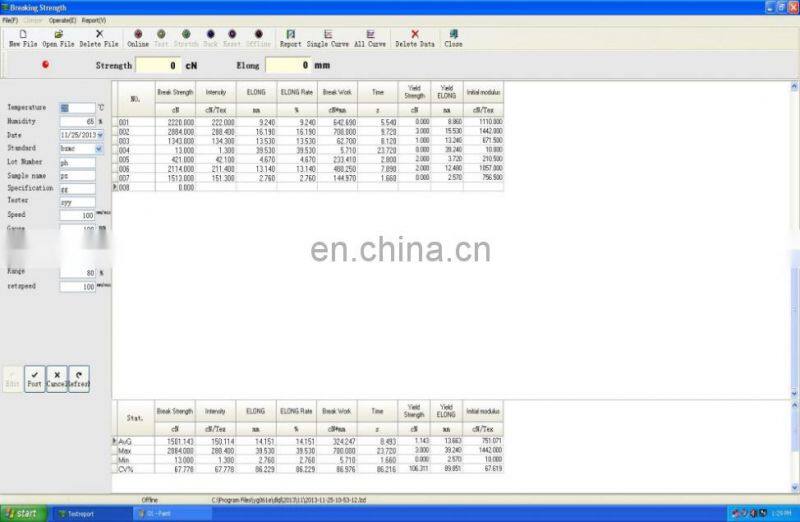

Figure 2: On-line test interface
★ The test report can be printout
★ With two load ranges for one machine to satisfy different test requirement and ensure the accuracy

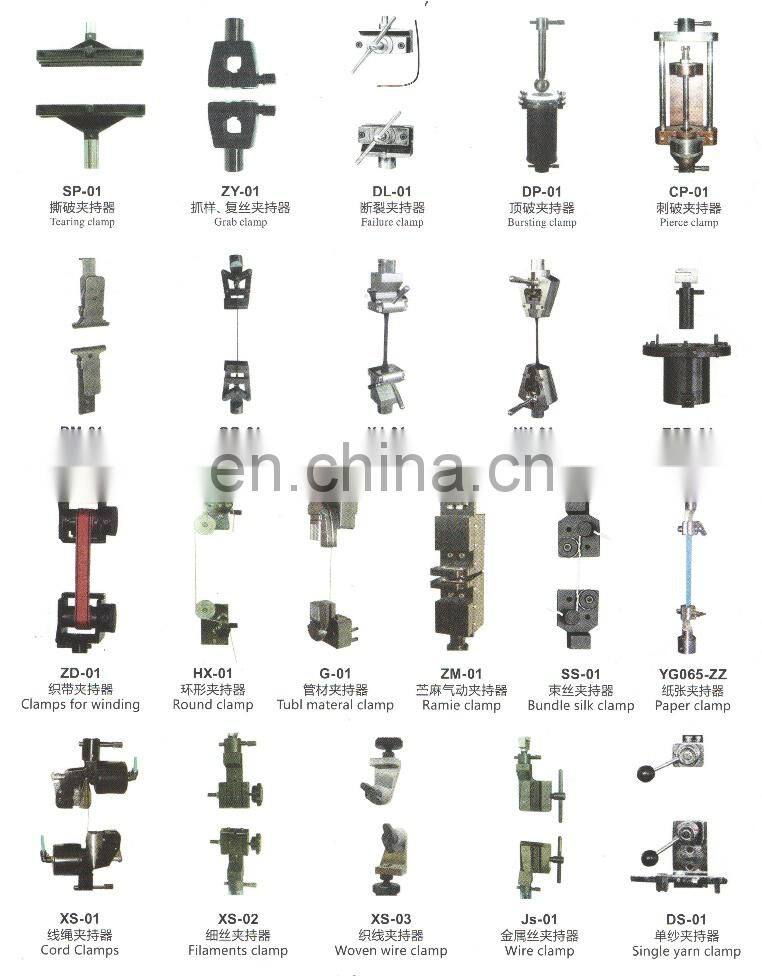

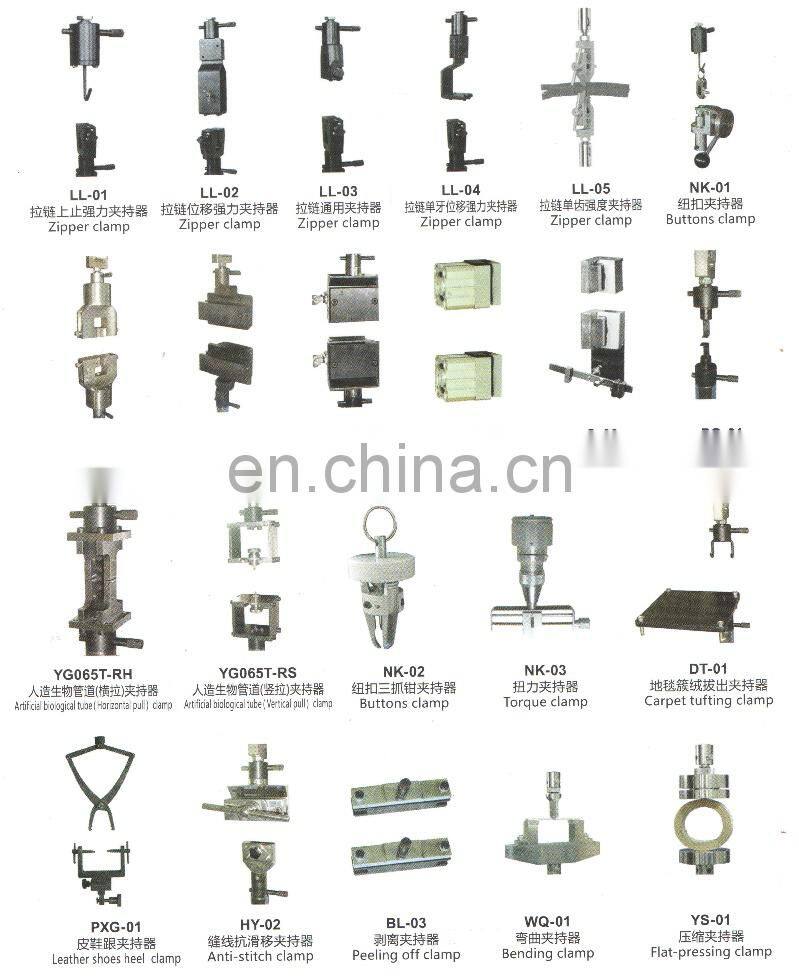

★ Various clamps can be optional to perform different test standards
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 1160x510x1050mm | |
Weight | Approx. 80kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
