Product Description

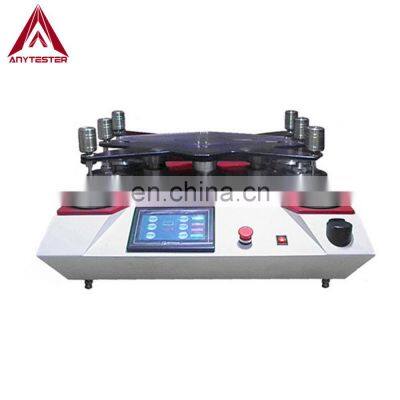

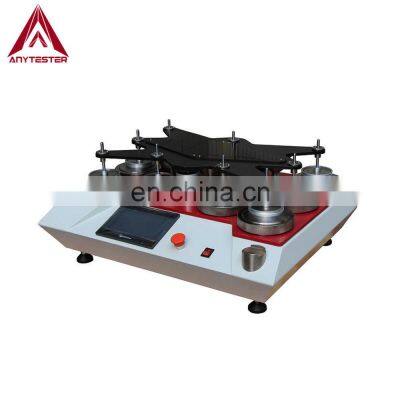

HY0401 Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile by Martindale method. The circular test specimens are rubbed against the friction surface comprising known abradents at a defined force in the form of a Lissajous figure.
Standard
ASTM D4966, D 4970, D 3866 | ISO 12945-2, ISO 12947.1, ISO 17076-2, ISO 26082-1 | BS 5690, BS3424 | ||
DIN 53863, DIN 53865 | JIS L1096 | GB/T4802.2, GB/T21196 | ||
FZ/T20020 | IWS Tm196/ TM112 | |||
Note: For more standards, please contact us | ||||
Specification
Model | HY0401-4 | ||
Working position | 4 | ||
Specimen diameter | Ф140mm (for pilling test) Ф38mm (for abrasion test) | ||
Abrading table diameter | Ф120mm | ||
Effective diameter of abrader | A type(1.96N): Φ28.65±0.05mm | ||
B type(1.52N): Φ90 ±0.10mm | |||

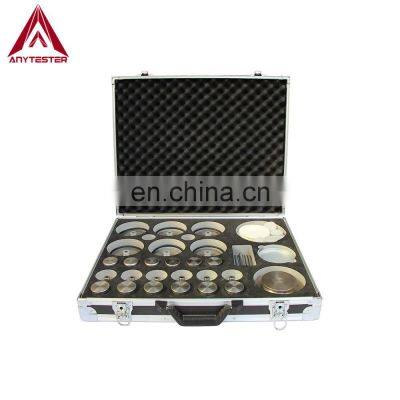

weights | Abrasion test | Specimen holder: 200g±1g Loading piece: 395g±2g, 594g±2g | |
Pilling test | Specimen holder: 155g±1g Stainless steel disc: 260g±1g | ||
Test speed | 50r±2r/min | ||
loading pressure weight for specimen mounting | 2385g±10 g | ||
Counting range | 0~999999times, settable | ||
Power supply | AC220V±5%, 50Hz, 500w | ||
Dimensions | 885×600×410mm | ||
Weight | 110kg | ||
Details & Features

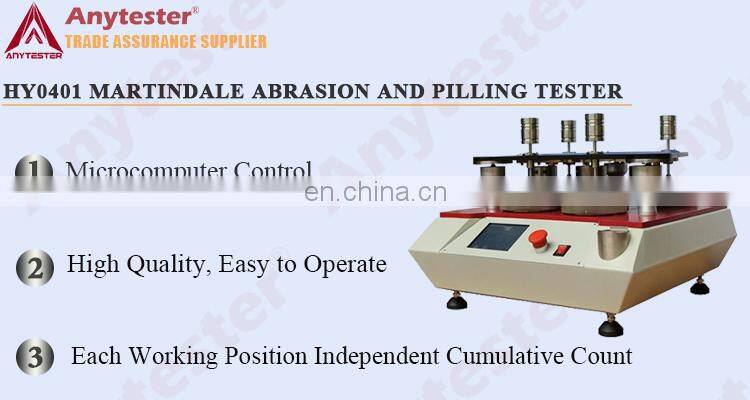

★ 4 working positions to test 4 specimens at the same time;
★ Microcomputer control, large color touch screen operation;
★ With two test method, small and large standard Lissajous curve, small Lissajous mode for pilling test, large Lissajous mode for abrasion test;
★ Load pieces and key components made of stainless steel, nice and durable;
★ Guide plate made of special aluminum alloy to ensure long time operation without deformation;
★ Can preset several running program and several counting mode (increment and decrement)
★ each working position Independent cumulative count
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
