Rope High Temperature Jet Dyeing Machine Lab High Quality Dyeing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatically Cotton Wool Lab Bobbin Yarn Dyeing MachineNegotiableMOQ: 1 -
GB/T Compound Pendulum Impact Tester Lab Charpy Izod Impact Tetsing MachineNegotiableMOQ: 1
-
Lab Textile Fabric Dyeing Machine Sample Size Garment & Ribbon Dyeing MachineNegotiableMOQ: 1
-
ISO Standard Intelligent Viscosity Testing Machine for Viscosity Polymers TestingNegotiableMOQ: 1
-
ISO 9237 ASTM D737 Lab Digital Fabric Air Permeability Tester With Touch Screen ControlNegotiableMOQ: 1
Product Description

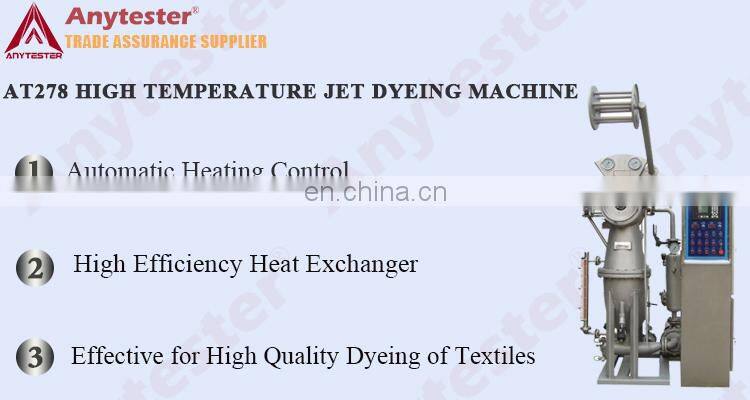

AT278 Series High Temperature Jet Dyeing Machine is used for high temperature and pressure sample dyeing of fabrics in rope form. It is suitable for small amount of fabric. It has low liquor ratio, small power consumption and fast running speed, ensuring good dyeing effect and quality, and also can directly use common production process
Specification
Model | AT278-1 | AT278-5 | AT278-10 | ||
Capacity | 0.8-1kg | 3-5kg | 7-10kg | ||
Max Pressure | 0.5Mpa | ||||
Max Temperature | 145℃ | ||||
Fabric speed | 5~120m/min | ||||
Heating rate | 20°C ~ 140°C/30 min. | ||||
Cooling rate | 140°C ~ 60°C/30 min. | ||||
Power supply | 380V 50/60Hz | ||||
Total power | 1.895 KW | 2.66KW | 6.95KW | ||
Dimensions | 1400*1170*1800 | 1650*1650*1800 | 2450*1050*2060 | ||
Details & Features
★ Effective for high quality dyeing of textiles, such as cotton, wool, knit, complex and others
★ Service tank equip with the feeding pump, valve, dye cycle system.
★ High-efficiency stainless steel centrifugal pump to provide optimal dye cycle.
★ The machine body and part that touches the dye liquor are made of high anticorrosively stainless steel.
★ High efficiency heat exchanger.
★ Nozzle of pure overflow construction provides more strong osmosis force of liquor circulation for fabric delivery.
★ Improve the motor drive controlled by transducer, minimizing the slippage between fabric and lifter and ensuring the fabric simultaneously running between roller and fabrics.
★ Pumps unique designed with stainless steel which makes dye liquor keep certain pressure and flow rate. Thus, it ensures fabric smooth delivery in dye liquor.
★ Nozzle of pure overflow construction provides more strong osmosis force of liquor circulation for fabric delivery.
★ Automatic heating control
★ level indicator
★ Pneumatic filling and draining valves
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 660*680*780mm | |
Weight | 120kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
