20 Inches Lab Semi-automatic Sample Loom With PLC Control

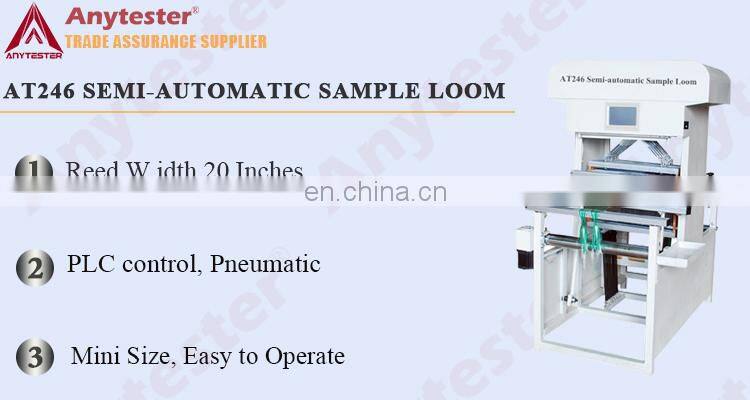

20 Inches Lab Semi-automatic Sample Loom With PLC Control photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

AT246 Series Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Specification
Model
AT246A
AT246B
Reed width
20 inches

Color selection
manual

No. of heald frame
16 (20 or 24 optional)

Take-up
manual
Automatic
Beating-up
manual

Heald lifting
PLC control, pneumatic

Air pressure
0.45~0.8MPa

Air consumption
200L/min max.

Power supply
1 phase, 220V, 50Hz

Dimension
1300×980×1510mm

Details & Features

★Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;
★Machine surface adopts electrostatic spraying and automobile lacquer handling, good brightness and nice appearance;
★Adopting pneumatic shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★With weft-density can be settable and equipped with automatic correction function
★Warp Let-Off by constant tension aerodynamic damped, and attached with electromagnetic brake mechanism
★Stable operation, low noise and high reliability;
★PLC control touch screen, storing 6pcs of pattern cards and 1000 lines reachable for each pattern card;
★With computer interface to achieve the communication between PC and PLC.
Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery
Packaging
Dimensions
1300*980*1510mm (LWH)
Weight
Approx. 200kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
