High Quality Infrared Lab Textile Dyeing Machine

Name: High Quality Infrared Lab Textile Dyeing Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

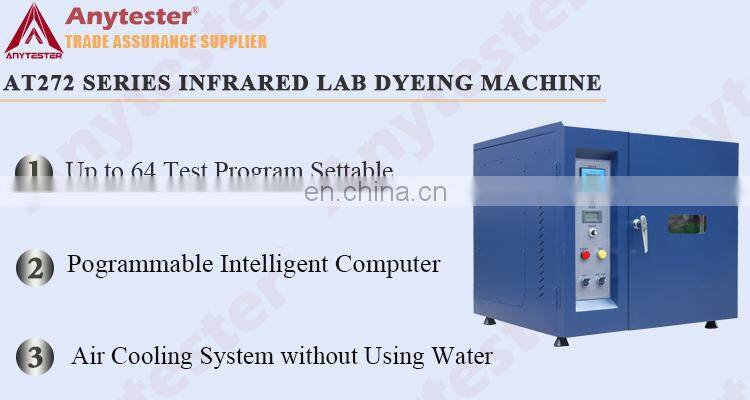

AT272 Series Infrared Lab Dyeing Machine (original model HY0140) is the newest infrared lab dyeing machine. It combines the advantages of common infrared machines and high temperature glycerol machines; also it overcomes their deficiencies of large material consumption and pollution.

Specification

Model	AT272 Series
Dyeing pot numbers	12, 16, 18, 24 selectable
Dyeing pot volume	200ml, 300ml, 350ml, 450ml,500ml selectable
Temperature range	RT.~ 140oC
Max. heating rate	5oC/min
Temperature accuracy	±0.5
Liquor ratio	1:5 ~ 1:100
Rotation speed	0 ~ 60 rpm
Heating system	Infrared
Cooling system	Air
Power supply	220V, 50Hz,
Dimensions	660680780mm
Weight	120kg

Details & Features

★ Intelligent design for chemical lid, easy to add dose chemicals during the dyeing process without opening the lid (optional)

★ Equipped with a programmable intelligent computer control

★ Up to 64 test program settable

★ Adopt solid state relay to control temperature, makes it more accuracy and uniform

★ It use infrared heating system which is low power consumption, no smoking pollution and loss of glycerol, it has good thermal insulation effect and is effective in saving energy and costs.

★ 360o tumbling rotation make the dyeing more uniform and is widely used for all fabric

★ It used air cooling system without using water and cut down the cost.

★ It can work at different liquor ratio from 1:5 to 1:100. It can be matched with spray dyeing machine.

★ The body is made of stainless, good appearance and durable.

★ Different working position and dyeing pot volume selectable.
