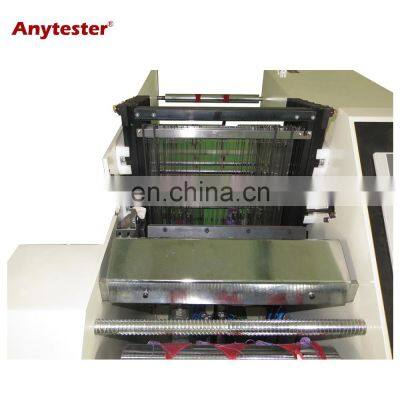

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Model | AT248 | ||||
Reed width | 12inches (16, 20, and 24inch, optional) | ||||
Yarn linear density range | 5~500tex | ||||
Weft density | 30~45weft/min, selectable | ||||

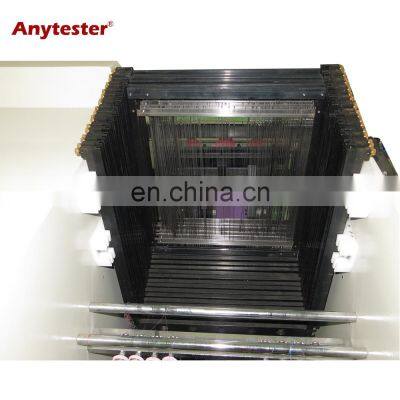

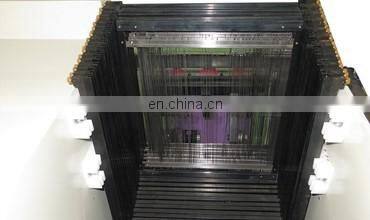

No. of heald frame | 4~20 | ||||
Color selection | 8 color, automatic pneumatic control | ||||
Let-off | Active electronic control | ||||
Take-up | Motor control | ||||
Shedding | Dobby shedding, pneumatic control | ||||
Beating-up | Motor control | ||||
Air pressure | 0.45~0.8Mpa | ||||
Air consumption | Max. 200L/min | ||||
Power | A220V 50Hz, single-phase | ||||
★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;

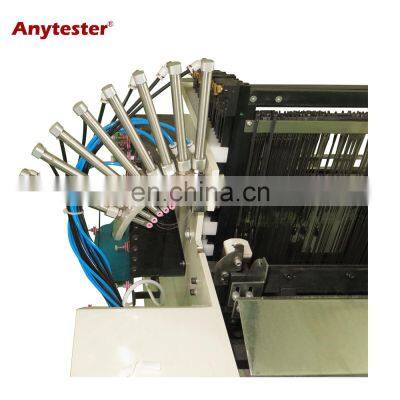

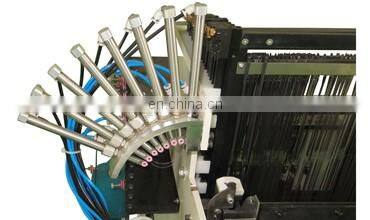

★ Automatic pneumatic selection of weft yarns up to 8 colors;

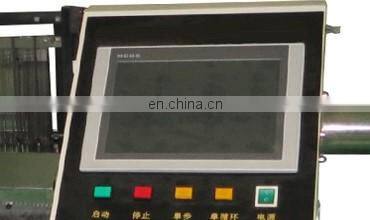

★PLC control touch screen with 2G memory capacity to store designed patterns;
Packaging | ||
Size(cm) | 140(L) * 180(W) * 180 (D) | |
Weight | 200Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment Item | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 50,000usd | ||||
Delivery Time | 7~10 days after receiving payment for one container | ||||
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
