Automatic Rapier Sample Loom Suitable For Various Yarns With PLC Control Touch

Automatic Rapier Sample Loom Suitable For Various Yarns With PLC Control Touch photo-1
Automatic Rapier Sample Loom Suitable For Various Yarns With PLC Control Touch photo-2
Automatic Rapier Sample Loom Suitable For Various Yarns With PLC Control Touch photo-3
Automatic Rapier Sample Loom Suitable For Various Yarns With PLC Control Touch photo-4
Automatic Rapier Sample Loom Suitable For Various Yarns With PLC Control Touch photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

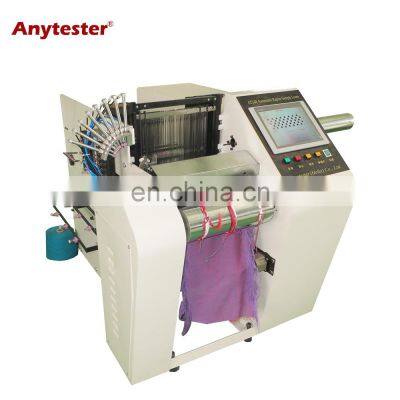

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Features


★ PLC control touch screen with 2G memory capacity to store designed patterns;

★ Designable and editable patterns and USB interface to share designed patters;




★Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;

★ Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

★ Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;

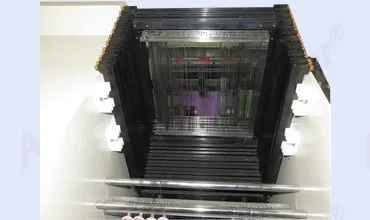

★ Heald frames up to 20pcs, easy to mount and dismount;

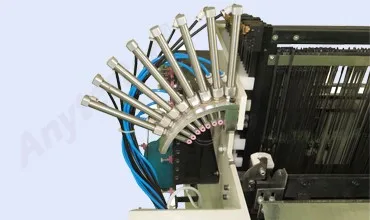

★ Automatic pneumatic selection of weft yarns up to 8 colors;

★ Professional software for designing or editing patterns;


Specification
Model
AT248
Reed width
12inches (16, 20, and 24inch, optional)
Yarn linear density range
5~500tex
Weft density
30~45weft/min, selectable
No. of heald frame
4~20
Color selection
8 color, automatic pneumatic control
Let-off
Active electronic control
Take-up
Motor control
Shedding
Dobby shedding, pneumatic control
Beating-up
Motor control
Air pressure
0.45~0.8Mpa
Air consumption
Max. 200L/min
Power
A220V 50Hz, single-phase
Packing & Delivery
Packaging




Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.

2. The box is filled with foam to protect the equipment from impact.

3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Item


T/T
EXW



30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)



30% T/T in advance,paid the balance against copy of B/L

CIF
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 50,000usd
Delivery Time
7~10 days after receiving payment for one container
