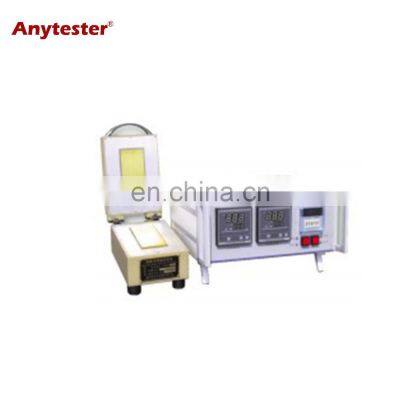

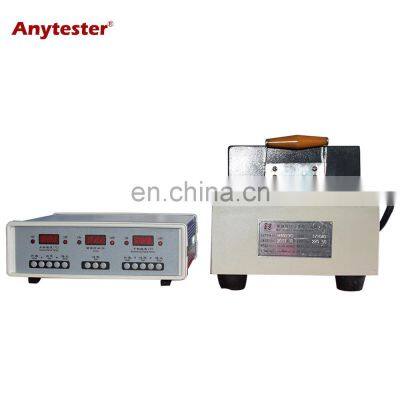

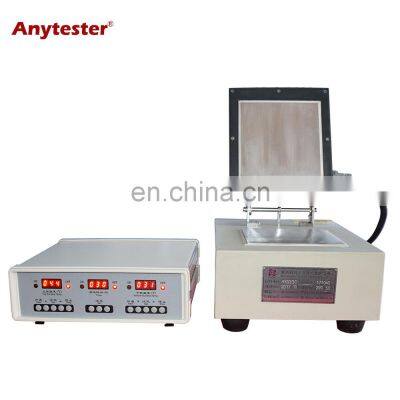

HY0605 Scorch and Sublimation Tester is used to determine color fastness and shrinkage to hot pressing and dry heat and to conduct sublimation tests.
|
ISO 105-P01 |
AATCC 117, 133 |
BS1006 |
|
JIS L0850, L0854, L0849 |
GB/T 5718, GB/T 6152 |
|
Note: For more standards, please contact us
1. It consists of control cabinet and heating device

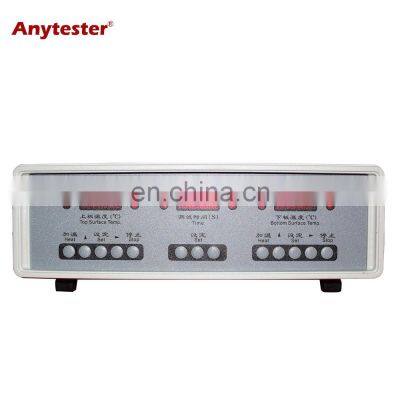

2. Electronic temperature controller, temperature of top and bottom plates individually controlled
3. With high quality temperature sensor, more accurate
4. With alarm function when the temperature rise to set temperature
5. Settable test time
|
Model |
HY0605 |
HY0605-3 |
|
|
Working position |
1 |
3 |
|
|
Heating area |
50×110mm, 120×40mm or customized |
||
|
Heating mode |
Single-side or double-side |
||
|
Specimen pressure |
4kPa±1kPa |
||
|
Test time |
1~99s settable |
||
|
Heating time |
<30min (RT~110℃) |
||
|
Temperature range |
RT~220℃, settable |
||
|
Temperature error |
±1℃ |
||
|
Rated power |
300w |
||
|
Power supply |
AC220V±10%, 50Hz |
||
|
Dimensions |
Main machine |
120×130×350mm |
320×130×350mm |
|
Control cabinet |
300mm×150mm×380mm |
||
|
Main machine weight |
6.2kg |
15Kg |
|
