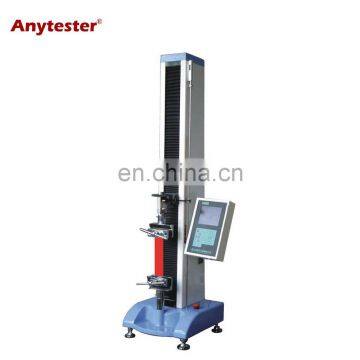

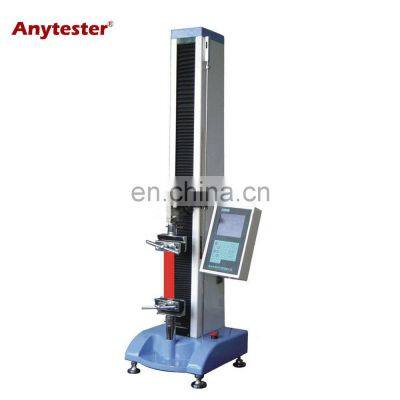

HY065C Automatic Lea Yarn Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials.
|
|
ASTM D3787, 4964,5034, 5035ISO13937, ISO 5081 |
DIN 53859, DIN 53858 |
|
BS3320, BS4303, BS2576 |
GB/T 3923.1, GB/T 3917 |
JIS L1096 |
Note: For more standards, please contact us
1 It is not only used for fabric test (standard configuration), but also for lea yarn test with larger tensile space (optional)
2 Adopt CRE measurement mechanism, micro-computer control, large LCD display, automatic data processing
3 Can be connected with computer to achieve more analysis function, real-time display test curve, breaking force, elongation, yield stress, yield elongation, force at rupture, initial modulus, CV value, etc.
4.The test report can be printout
5.With two load ranges for one machine to satisfy different test requirement and ensure the accuracy
6.Various clamps can be optional to perform different test standards
Technical Specification:
|
Model |
HY065C |
|
Load range |
120N, 500N, 2500N, 5000N, selectable |
|
Gauge length |
25~500mm, adjustable |
|
Tensile speed |
2mm/min~1200mm/min, settable |
|
Return speed |
2mm/min~1000mm/min |
|
Timing stretch |
20s±3s, 30s±5s |
|
Test times |
99times max. |
|
Elongation range |
350% max. while set 200mm gauge length |
|
Power supply |
AC220V±10%, 50Hz |
|
Dimensions |
380mm×480mm×1450mm (L×W×H) |
|
Weight |
122kg |
