Farm Small Scale Production Roving Machine Customized Spindles
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Small Scale Ring Spinning Machine with Touch Screen
-
mini spinning system lab ring spinning machine for cotton
-
4 Spindles Lab Cone Yarn Winding Machine Factory Price
-
Lab Two-for-one Winding Machine with Touch Screen Control
-
Laboratory Textile Rotor Spinning Machine for Cotton Wool Fiber
-
Worsted Spinning System Laboratory Wool Fiber Gilling Machine with Touch Screen Display
Product Description
Product Description

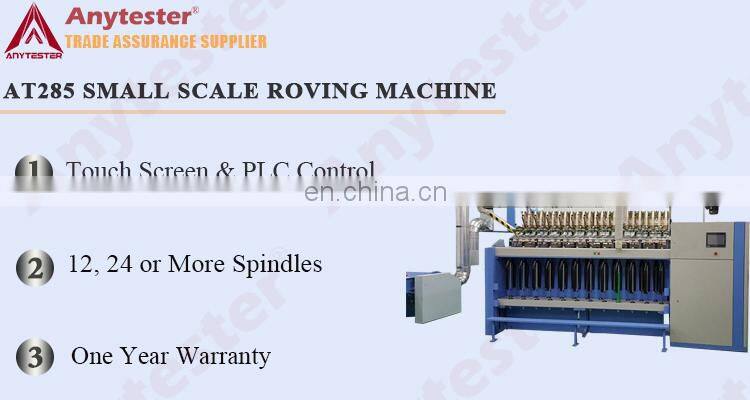

AT285 Small Scale Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine, ring spinning machine and winding machine) which is widely used in universities, researching center and small scale production, it can be used for both cotton, wool and blend fiber. AT285 Roving Machine is used to make roving from drawn sliver.
Specification
Model | AT285 |
Number of spindles | 12, 24 or more |
Fiber type | Cotton fiber: max. 64mm Wool fiber: max. 220mm or blend fiber |
Spindle gauge | 220mm |
Package dimension | Φ150×400mm |
Bobbin dimension | Φ45*445mm |
Twist range | Continuously adjustable |
Draft range | 4.2~12 |
Density for yarn | 220~1250tex |
Pressing form | Spring weighting arm pressing |
Bottom roller diameter | ¢28.5, ¢28.5, ¢28.5, ¢28.5/32, 32, 32, 32mm |
Top roller diameter | ¢29, 29, 25, 29mm |
Cleaning device | Napping roller with revolving suction device |
Max mechanical speed | 1300rpm |
Transmission device | Three, four or five frequency inverter servo motor, optional |
Control type | Computerized automatic control |
Man-machine interaction | Touch screen |
Winding transmission | Gear transmission (timing belt transmission optional) |
Flyer transmission | Gear transmission (timing belt transmission optional) |
Winding power shaft | Universal shaft |
Differential device | None for 12 spindles Visible oil bath differential box for 24 spindles |
Reversing device | Software control |
Yarn forming angle | Software control |
Three auto doffing | Software control |
Single display | Five lamps indicated on machine headstock |
Tension adjustment | Software control |
Tension fine adjustment | Software control |
Evenness preventing | Software control |
Sliver faults preventing | Software control |
Winding density adjustment | Software control |
Twist changing | Software control |
Feed-in can diameter | Φ400/500/600mm |
Output speed | Max. 12m/min |
Machine dimension | 2900*2200*2600mm |
Approx. Weight | 2500Kg |
Power supply | 3 phase AC380~415V 50Hz |
Details & Features
1. Mini machine, save researching cost and easy to operate and maintain;
2. Touch screen & PLC control;
3. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
4. Frequency converter of high efficiency to control roll speed;
5. Pressurizing system :spring pressure cradle;
6. Three-up-three-down drafting structure;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
