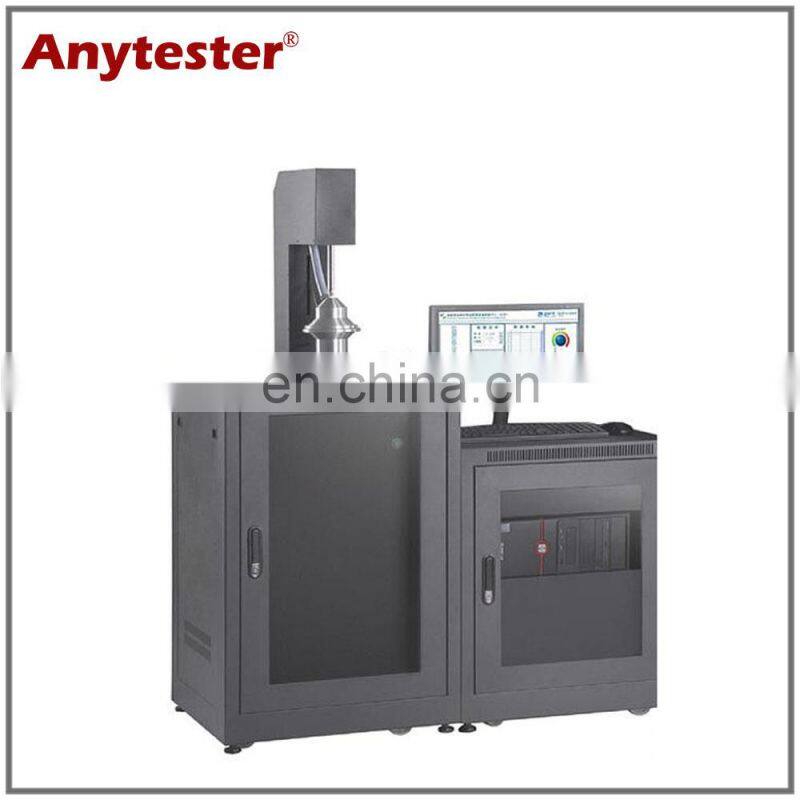

HY-9010 Automated Filter Tester is designed for a stand- alone tester to check a few filters per day or need to integrate your tester in an automated, high-volume, high-volume production line. It has proven track records of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments in the past ten years. It equipped with two sets specially designed aerosol generators enable highly repeatable and reproducible filter-efficiency measurements. It features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance. As a result,,HY-9010 filter tester is ideally suitable for QC testing.
|
EN143 |
GB2626-200 |
JMOL |
|
NIOSH 42 CFR 84 |
|
|
Note: this Automated Filter Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
1. Compliance with more regulations and well received by many customers
2. Simple, fast and automated operation
3. Highly consistent test results
4. Designed for manufacturing environments
5. Support Chinese and English, menu type operating mode and large LCD display, it’s easy to switch

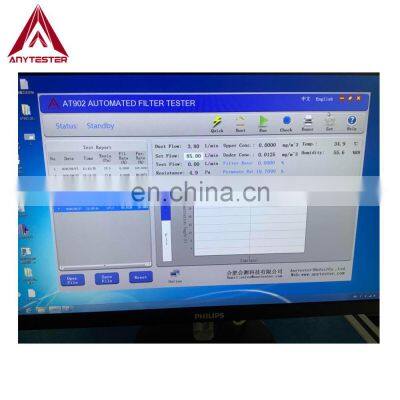

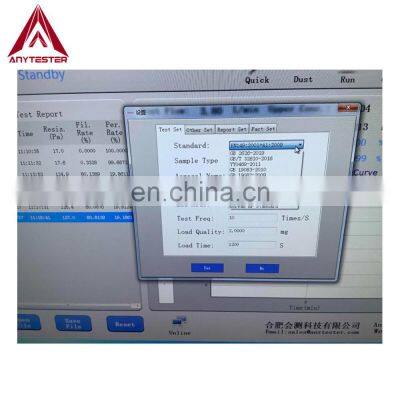

6. Computer control with special software
7. More test items
|
Model |
HY9010-II Automated Filter Tester |
|
|
Aerosol |
Salt,DOP,DEHS, Paroline, Corn oil etc |
|
|
Aerosol density |
(50-200) mg/m3(oil); (12-20)mg/m3(salt) |
|
|
Detector |
Laser aerosol particle counter |
|
|
Measuring range |
(20-100) L/min |
|
|
Detect temperature |
5-35℃ |
|
|
Related humidity |
0 - 90% RH |
|
|
OPC self-purification time |
≤10 mins |
|
|
OPC flow rate accuracy |
±5% |
|
|
OPC repeatability |
10% F.S |
|
|
OPC particle size distribution deviation |
± 30% |
|
|
OPC particle density deviation |
± 30% F.S |
|
|
Pressure detect |
Digital pressure sensor (pressure difference transmitter) |
|
|
Pressure detect range |
(0-0.88)MPa |
|
|
Pressure detect accuracy |
Grade 2.5 |
|
|
Efficiency testing range |
filter efficiency: 10~99.999% |
|
|
Operation display |
LCD display |
|
|
Power supply |
200-235V, 50Hz |
|
|
Dimension |
Main machine |
950mm × 600mm ×600mm × 2 |
|
Control cabinet |
750mm × 600mm ×600mm |
|
