Face Mask Bacterial Filtration Efficiency Tester Mask Bfe Testing Machine EN14683
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM F2299 Medical Face Masks Initial Efficiency Penetration TesterNegotiableMOQ: 1 -
EN13274-7 Face Mask Particle Filter Penetration TesterNegotiableMOQ: 1
-
Face Mask Tester Lab Particulate Filtration Efficiency Tester With High Quality Photometer EN143 EN149NegotiableMOQ: 1
-
GB 2626-2019 Lab Air Impermeability Tester Face Mask Leakage Tester With Colorful Touch ScreenNegotiableMOQ: 1
-
Face Mask Pressure Difference Tester Lab Mask Testing MachineNegotiableMOQ: 1
Product Description

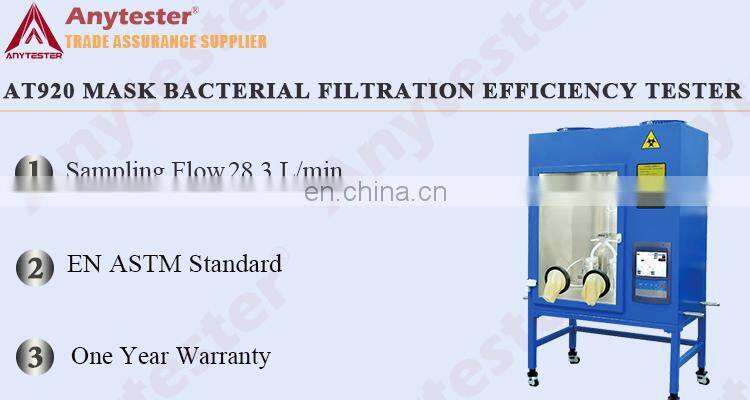

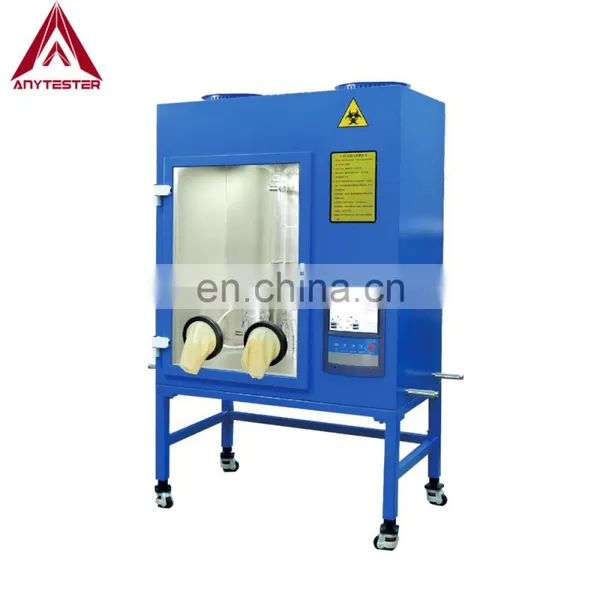

AT920 Mask Bacterial Filtration Efficiency (BFE) Tester is used to quickly and accurately detect the bacterial filtration efficiency (BFE) of various flat masks, 3D masks and protective materials. Bacterial filtration efficiency (BFE) experimental method requires development, is a high-performance intelligent bacterial filtration efficiency detector.
Standard
EN14683 |
ASTM F2100, ASTM F2101 |
||
Note: For more standards, please contact us |
|||
Specification
Model |
AT920 |
||
Enterclose A
|
Sampling flow |
28.3 L/min |
|
Resolution |
0.1L/min |
||
Tolerance |
±2.5% |
||
Enterclose B
|
Sampling flow |
28.3 L/min |
|
Resolution |
0.1L/min |
||
Tolerance |
±2.5% |
||
Spray system
|
Flow rate |
8~10L/min |
|
Resolution |
0.1L/min |
||
Tolerance |
±5.0% |
||
Peristaltic pump
|
Flow rate |
0.006 ~3 ml/min |
|
Resolution |
0.001 mL/min |
||
Tolerance |
±2.5% |
||
Pressure in the forepart of flow-meter for
Enterclose A/B
|
Pressure range |
-20 ~ 0kpa |
|
Resolution |
0.01kpa |
||
Tolerance |
±2.5% |
||
Pressure in the forepart of flow-meter for
Spray system
|
Pressure range |
0 ~ 300kpa |
|
Resolution |
0.1kpa |
||
Tolerance |
±2.5% |
||
Aerial fog negative pressure
|
Pressure range |
-90 ~ -120kpa |
|
Resolution |
0.1Pa |
||
Tolerance |
±2.0% |
||
Operating temperature |
0 ~ 50℃ |
||
Biosafety zone negative pressure |
-90 ~ -120 Pa |
||
Data storage capacity |
20G |
||
Data output and interface |
USB (3 interfaces) |
||
High efficiency air filter performance |
≥99.995%@0.3μm, ≥99.9995%@0.12μm |
||
Total number of positive quality control sampler particles
|
2200±500 cfu |
||
Aerosol generator mass median diameter
|
Average particle diameter (3.0±0.3μm),
Geometric standard deviation≤1.5
|
||
Six-stage Anderson sampler captures particle size
|
Level 1(>7 μm); Level 2(4.7~7 μm); Level 3(3.3~4.7 μm); Level 4(2.1~3.3 μm);
Level 5(1.1~2.1 μm); Level 6(0.3~1.1 μm)
|
||
Aerosol chamber |
Length 600 * Diameter 80 * Thickness 3.0 mm |
||
Ventilation flow of negative pressure cabinet
|
>5m³/min |
||
Working noise |
<65db |
||
Power supply |
220V, 50Hz |
||
Dimension |
1250*700*2000 mm |
||
Work area |
870*600*1100 mm |
||
Net weight |
Around 250kg |
||
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging |
||
Dimensions |
1300*980*1510mm (LWH) |
|
Weight |
Approx. 200kg |
|
Packaging Details
|

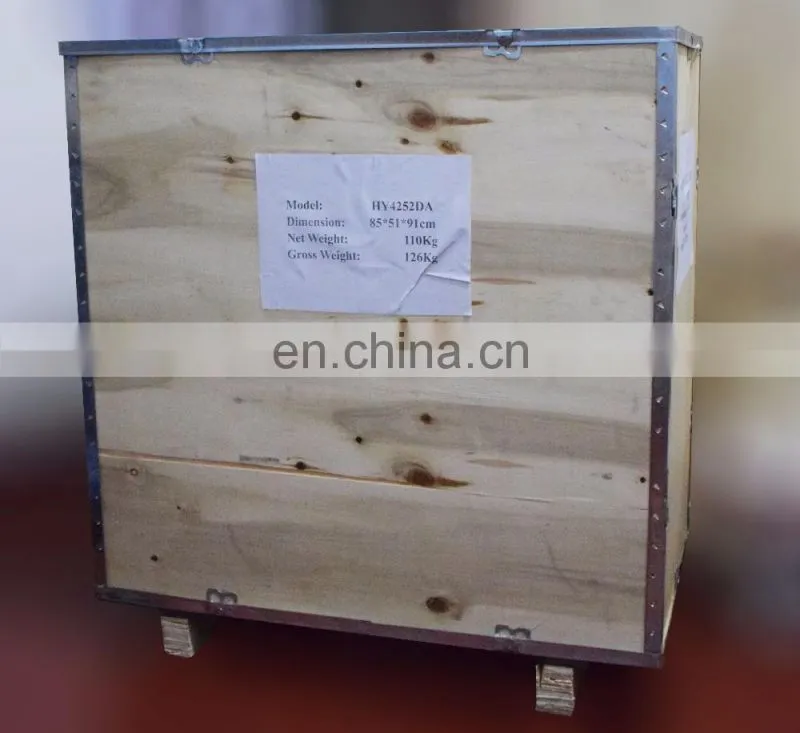

1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
|||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd
|
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
