Ultra High Power Graphite Electrode

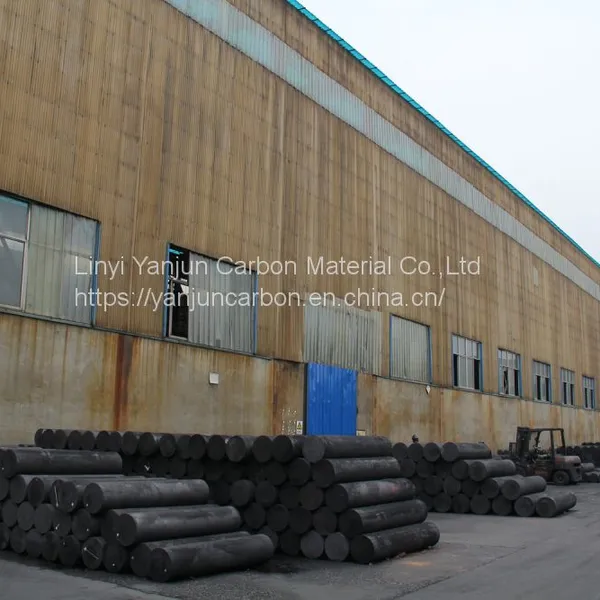

Yanjun Carbon is the subsidiary of Lubei Carbon which mainly produce RP/HP/UHP graphite electrodes in diameter 100mm-600mm, we have a complete calcining, crushing, forming, baking, impregnation, graphitization, machining production lines and advanced technology and complete quality test equipment for quality control.

Size of Electrodes:

Dimension of Cylinder Nipples:

Dimension of 3TPI Conical Nipples:

Dimension of 4TPI Conical Nipples:

RP Specifications:

 HP Specifications:

UHP Specifications:

Current-Carrying Capacity of RP graphite electrodes

Current-Carrying Capacity of HP graphite electrodes

Current-Carrying Capacity of UHP graphite electrodes

Precautions for use:
1. When selecting electrode diameter for steel making, please refer to electrode current capacity.
2.Graphite electrodes should be protected from rain and snow during transportation and storage. Before use, they must be dried.
3.Graphite electrodes should be handled with care during loading, unloading, and transportation to protect the threads and prevent damage.
4.Before connecting the electrode, the electrode socket thread must be blown out with compressed air, and then the nipples and the electrode should be tightened.
5.The electrode lifting device of the electrode should not shake during operation to prevent the nipples from loosening and tripping.
6.The electrode holder must not hold the electrode near the nipple socket.
7.When charging the furnace, a large steel block should be placed at the lower part to prevent the material from collapsing and breaking the electrode during melting.
