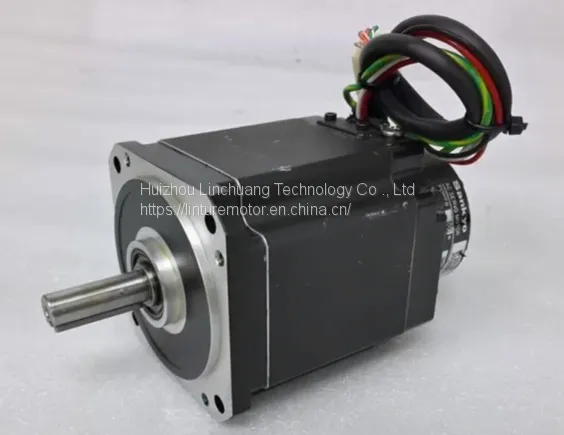

MF501NS302KNN32 Servo Motor Applicable To All Kinds Of PLC Controller
US$ 1 - 1000000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Nidec Sankyo
Place of Origin:
Japan
Model Number:
MF501NS302KNN32
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days
Related Products
-
Nidec Sankyo Industrial 3PH MC101NS302ANN1B MC101 Series AC ServoUS$ 1 - 1000000MOQ: 1 Unit -
Nidec Sankyo MC101NS302SNN01 for Robots Industrial Power SupplyUS$ 1 - 1000000MOQ: 1 Unit
-
HC-SFS153 Mitsubishi Servo Electronic Motor Three Phase AC ModularUS$ 1 - 1000000MOQ: 1 Unit
-
SGMDH-056A2A-YR25 Yaskawa Industrial Servo Drives Controller ModularUS$ 1 - 1000000MOQ: 1 Unit
-
HC-KFS43 Mitsubishi Industrial AC Servo Brushless Electric MotorUS$ 1 - 1000000MOQ: 1 Unit
Brand Name
Nidec Sankyo
Place of Origin
Japan
Model Number
MF501NS302KNN32
Detailed Product Description
| Category: | Industiral AC Servo Motor | Model: | MF501NS302KNN32 |
|---|---|---|---|
| Rated Power: | 500W | Series: | MF501 Series |
| MOQ: | 1 | Brand: | Nidec Sankyo (Japan) |
| High Light: | ewing machine servo motor,ac servo motor | ||
Types of Sankyo Industrial AC Servo Motor
| Inertia | Low Inertia Middle Inertia High Inertia |
| Flange Size | 40 mm x 40 mm 60 mm x 60 mm 80 mm x 80 mm 130 mm x 130 mm |
| Rotational Speed | Rated Motor Speed / Max. [r/min] 2,000 / 3,000 [r/min] 3,000 / 6,000 [r/min] |
| IP Code | IP65 IP67 |
Precautions
Using the motor with rotations of 180 degrees or less will reduce the encoder's rotational accuracy.For a motor equipped with a brake, follow the brake voltage and polarity specifications.If the brake voltage is less than 12 V or the polarity is reversed, the encoder's rotational accuracy will be reduced.
Features
Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.
Suitable for applications with low mechanical rigidity such as drive belt machinery.
Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally. Please observe the following precautions.
Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.
Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.
