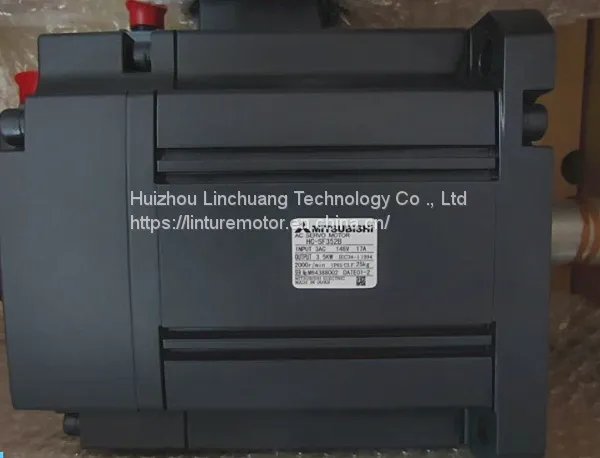

HC-SF352B Mitsubishi Motor 3.5kw HC-SF Series Servo Controller

HC-SF352B Mitsubishi Motor 3.5kw HC-SF Series Servo Controller thumbnail-1
HC-SF352B Mitsubishi Motor 3.5kw HC-SF Series Servo Controller photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Mitsubishi
Place of Origin:
Japan
Model Number:
HC-SF352B
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
4 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitsubishi
Place of Origin Japan
Model Number HC-SF352B
Type Servo Motor
Certification CCC, CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 3
Protect Feature Explosion-proof
Voltage(V) 146V
Output Power 3.5KW
Continuous Current(A) 17A
Speed(RPM) 2000R/MIN
Commutation Brushless
Category: Industiral Servo Motor Model 1.: HC-SF352B
Power: 1Kw Rated Current (A): 6.1
Rated Rotation Speed: 3000rpm Brand: Mitsubishi
High Light: ac servo motor,electric servo motor


NEW MITSUBISHI HC-SF352B HC-SF352BK AC SERVO MOTOR NEW ORIGINAL



Description


HC-SF352B
3 phase, 129V
Rated current (A): 6.1A
Maximum current (A): 18.4
Continuous Running Torque (N.m): 3.18 (450Oz-in)
Maximum torque (N.m): 7.95 (1126Oz-in)
Max Torque: 14.3N-m(2030Oz-in) (at servo side)
Continuous rated output: 1kW
Rated rotation speed: 3000rpm
Maximum rotation speed: 4500rpm
Weight: 3.9kg (8.6lb)
Encoder: 131072Pulse/rev
Recommended load/motor inertia ratio: Less than 15 times the servomotor's inertia moment

Motor Specifications:


Servo motor model

HC-MFS053

(B)

HC-MFS13

(B)

HC-MFS23

(B)

HC-MFS43

(B)

HC-MFS73

(B)
Servo amplifier model MR-J2S-10A/B MR-J2S-10A/B MR-J2S-20A/B MR-J2S-40A/B MR-J2S-70A/B
Power facility capacity [kVA] 0.3 0.3 0.5 0.9 1.3

Continuous

characteristics

 Rated output 50[W] 100[W] 200[W] 400[W] 750[W]
Rated torque 0.16[Nm] 0.32[Nm] 0.64[Nm] 1.3[Nm] 2.4[Nm]
Maximum torque 0.48[Nm] 0.95[Nm] 1.9[Nm] 3.8[Nm] 7.2[Nm]
Rated rotation speed [rpm] 3000 3000 3000 3000 3000
Maximum rotation speed 4500 4500 4500 4500 4500
Permissible instantaneous rotation speed

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]
Rated current 0.85 [A] 0.85 [A] 1.5 [A] 2.8 [A] 5.1 [A]
Maximum current 2.6 [A] 2.6 [A] 5.0 [A] 9.0 [A] 18 [A]
Weight [kg] 0.4 0.53 0.99 1.45 3

Drive Specifications:


Common specifications MR-J2S-A/B

10A

10B

20A

20B

40A

40B

60A

60B

70A

70B

100A

100B

200A

200B

350A

350B

500A

500B

700A

700B

Power

supply

Voltage /

frequency

3-phase 200~230 V AC, 50/60 Hz;

1-phase 230 V AC, 50/60 Hz

 3-phase 200 ~ 230 V AC, 50/60 Hz

Permissible voltage

fluctuation

3-phase 200~230 VAC: 170~253 VAC,

1-phase 230 V AC: 207 ~ 253 V AC

 3-phase 170 ~ 253 V AC
Permissible frequency fluctuation ±5%
Control system Sinusoidal PWM control / current control system
Dynamic brake Built-in
Speed frequency response 550 Hz or more
Protective functions Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection.
Structure Self-cooling, open (IP00) Fan-cooling, open (IP00)
Environment Ambient temperature Operation: 0 ~ 55 centigrade degree (no freezing), storage: -20~65 centigrade degree (no freezing)
Ambient humidity Operation: 90%RHmax. (no condensation), storage: 90%RHmax. (no condensation)
Atmosphere Inside control panel; no corrossive gas, no flammable gas, no oil mist, no dust
Elevation 1000mor less above sea level
Oscillation 5.9m/s2 (0.6 G)max.
Weight [kg] 0.7 0.7 1.1 1.1 1.7 1.7 2.0 2.0 4.9 7.2
Motor Dimensions:
Model Variable dimensions
L KL
HC-KFS053(B)
HC-MFS053(B)
81.5 (3.21)
 29.5 (1.16)
HC-KFS13(B)
HC-MFS13(B)
96.5 (3.80)
 44.5 (1.75)

100W Mitsubishi AC Industrial Servo Motor HC-MFS13 / HC-KFS13 Japan Motor
