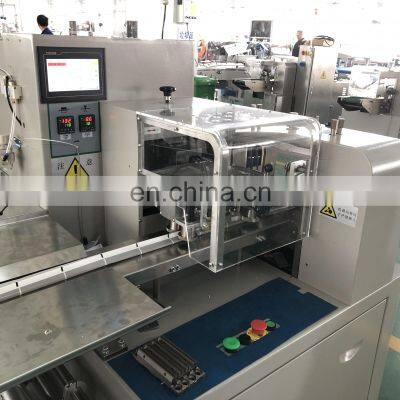

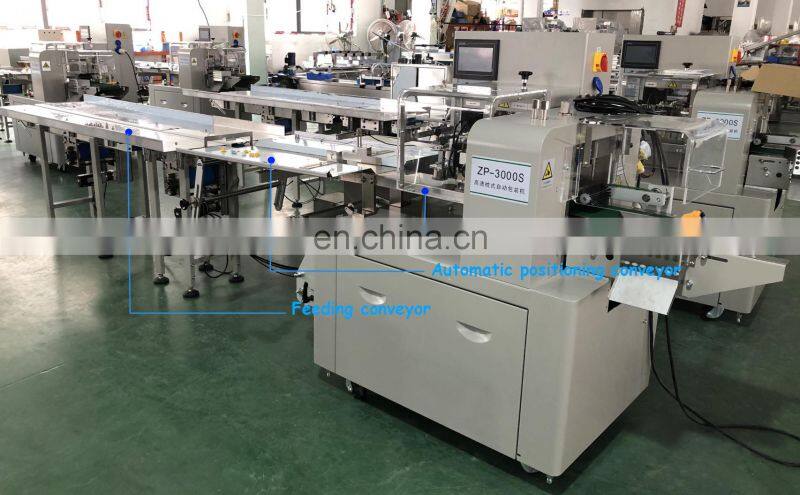

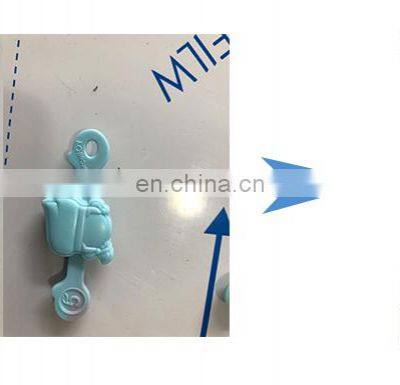

Automatic toy car plasticine horizontal flow wrapping pouch packaging machine







Model	ZP-3000SG
Packaging speed(bag/minute)	35-150bag/min
Packing size	L60mm-Infinite  W30-150mm  H5-50mm
Maximum width of film(mm)	<380mm
Thickness of film(mm)	0.03mm-0.05mm
Total power	220V,50/60HZ,6.3KW
Overall size(mm)	(L)5000*(W)960*(H)1400mm
Weight	630kg
Package	5.0CBM,2CASES
Overall size (mm)	OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL etc.



Packing process



(1) Menu storage and memory function

The controller can save a variety of parameter configurations, and the recipe can be used when the product or packaging film is replaced by calling out the formula on the touch screen.

(2) Bag length unlimited

The industry-leading electronic cam algorithm, the bag length range is from 60mm to unlimited length, the bag length is set and cut immediately in one step, saving time and film

(3) No product, no bag function/ Anti-cutting function

Advanced electronic anti-cutting, electronic anti-empty bag algorithm. The empty material film stops, saving packaging materials.

(4) 3-Servo motor/PLC control

The horizontal seal is controlled by an independent servo motor, and the longitudinal seal and the feeding tailstock are controlled by a frequency conversion motor. The mechanical structure is simple, the operation is stable, and the noise is low.

(5)High precision

The feeding speed is automatically tracked, and the packaging machine automatically accelerates and decelerates. High speed, higher precision, double knife speed can reach 300 packs/min, error ±1mm.

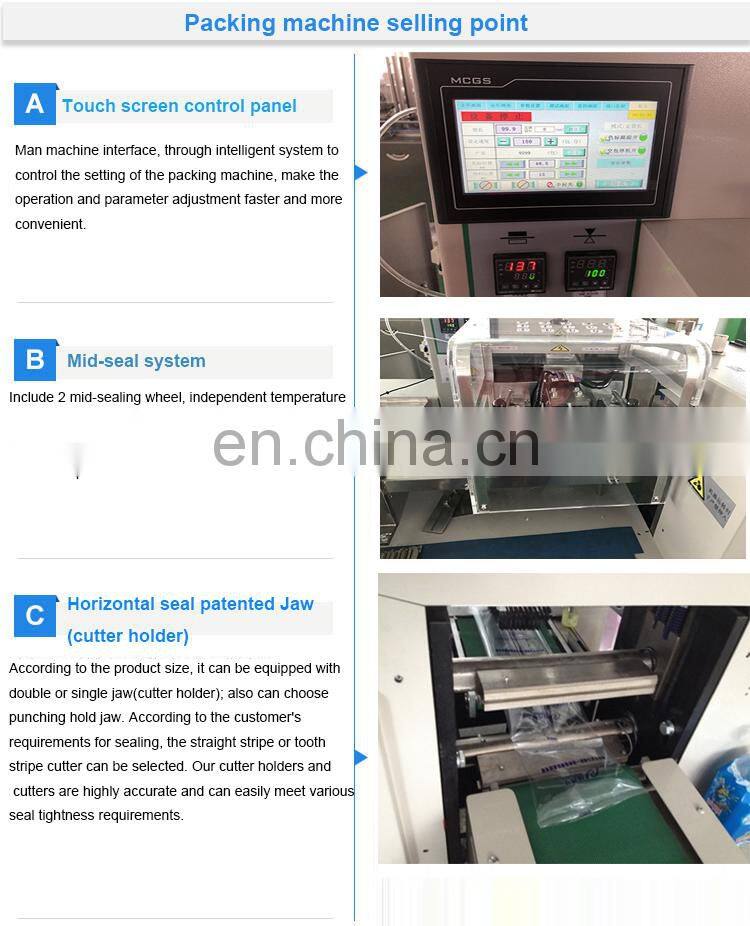

(6) Man-machine interface, convenient and quick parameter setting, automatic tracking of color code, automatic correction of cutting length. Digitally input the sealing and cutting position to make the sealing and cutting position more accurate.

(7) The fault is automatically diagnosed, and the fault display is clear at a glance.

(8) Well-known brand servo motor/controller/touch screen, vertical sealing/discharging belt brush.

(9) Optional configuration: coding machine, double support paper, automatic film connection, inflation, spray alcohol, lifting panel, stainless steel machine body.



Foshan Ruipuhua Machinery Equipment Co., Ltd. was established in 2005 and is located in Nanhai Economic Development Zone, Foshan City, Guangdong Province. It is a professional intelligent assembly line equipment manufacturer integrating design, manufacturing, installation and technical services. The leading products include food packaging machines, packing lines,and high-speed mask production lines. Our products are mainly used in food, medicine, daily chemical, hardware, toys and other industries. It is an equipment supplier to many well-known food companies at home and abroad, such as Taoli, Panpan, Ma Dajie, Xu Fuji, Orion, Jin Longyu, Tongyi, etc. Our products cover 34 provinces and municipalities across the country and are exported to more than 100 countries, and have provided automatic feeding and packaging solutions for more than 4,000 customers.

pac

Ruipuihua has obtained nearly 100 national patents and a number of software copyrights. All products have passed the EUR CE certification and 1S09001 quality system certification, and the industry segment market share ranks among the top three in the country. In recent years, it has successively won "National High-tech Enterprise", "National Hidden Champion", "Industry Leading Enterprise", "China Manufacturing Singles Champion Enterprise", "National High-tech Zone Leading Enterprise", "Foshan Quality Award First-line Team Award", "Gazelle Enterprise" and other honorary titles. From 2019 to 2020, our company has successively been approved to establish the "Food Processing Machinery Standards Working Group", "Food Packaging Machinery Standards Working Group" and "Small Bag Integrated Bagging Machinery Standards Working Group", and served as the leader unit to lead the drafting of industry standards . Ruipuhua is moving towards the formulation of industry standards, national standards and international standards.



Why choose us?

1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.

2. If any problems happened and you can not find out the solutions, online face to face communication available 24 hours.

3. Ruipuhua engineers & technician are available send to your countries for services if you agree pay the expenditure.

4. One year guaranty for machine. During the warranty if any of the parts broken not by man-made. We will free charge to replace the new one to you.

5. Ruipuhua has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
