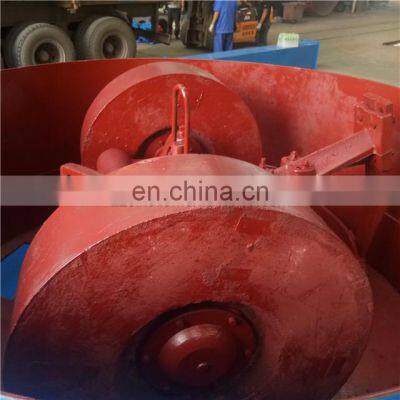

Wheel roller mixer machine with grinding roller wheell mix raw material and binder used in briquette production line
Brief introduction of Wheel roller mixer machine for coal charcoal coke iron or other material powder grinding mill machine with low factory price

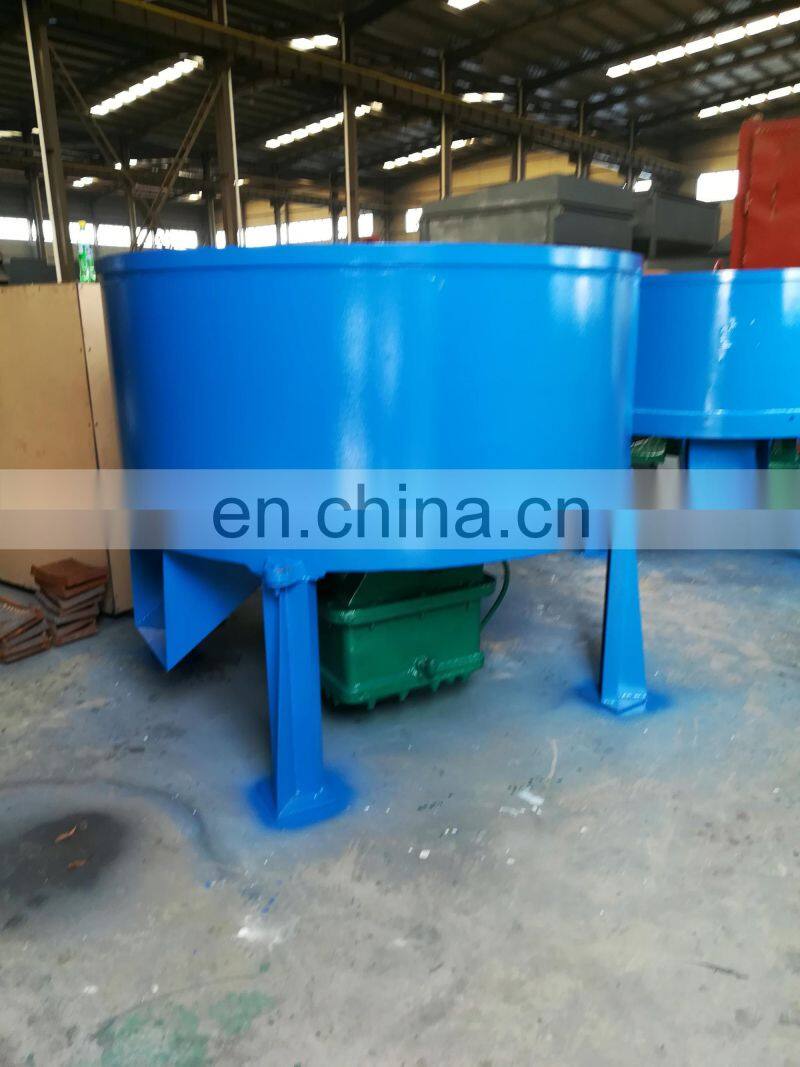

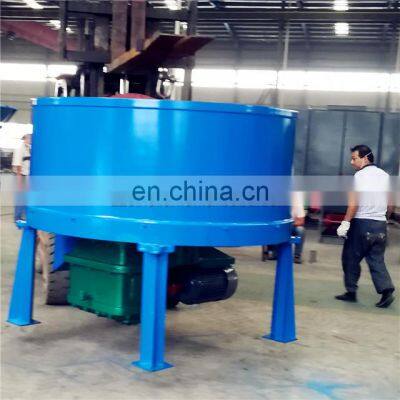

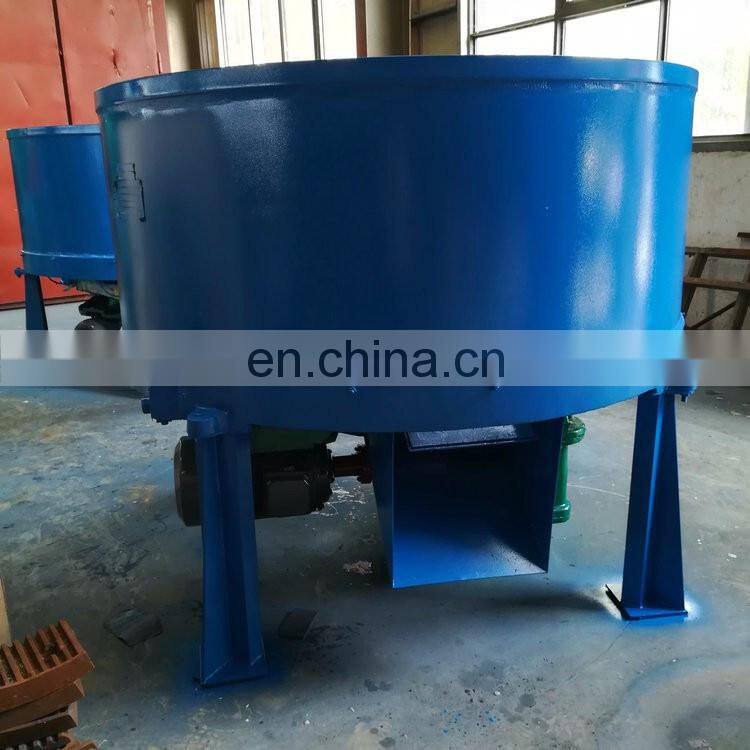

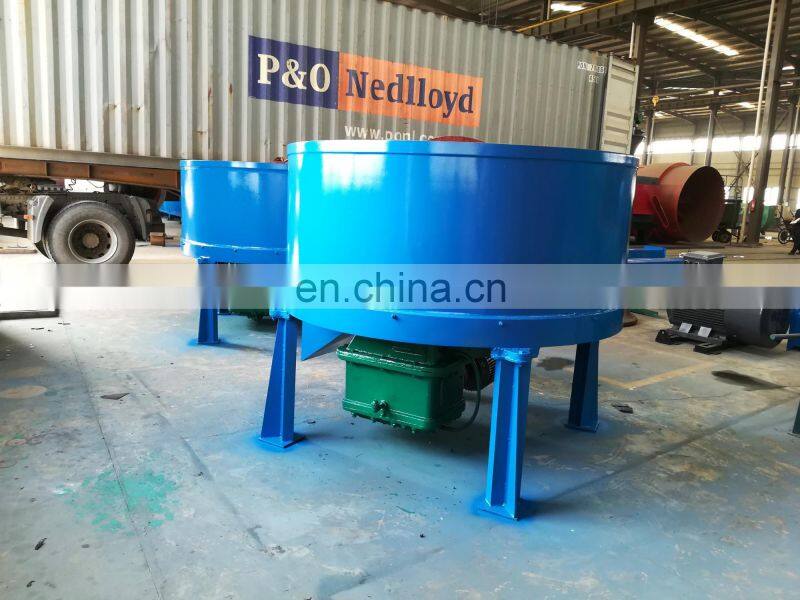

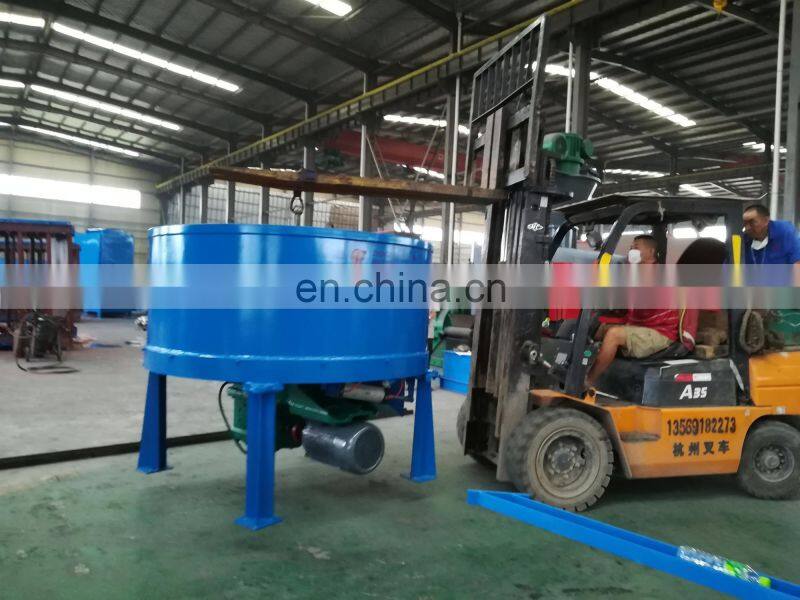

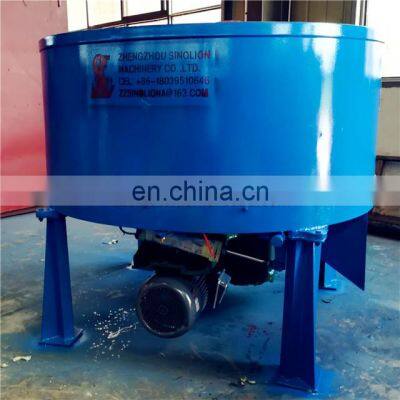

wheel roller mixer machine
wheel roller mixer machine, apply to mixing solid material and liquid amterial in casting workshop, widely applied in various kinds of forming production line. It is a kind of ideal mixing equipment can be easily used in chemical industry, light industry, building materials, and other industries mixing with powder materials.
Wheel grinding mixer main specifications and technical parameter
|
Model |
Barrel Dia. (mm) |
Wheel Size (mm) |
In Capacity (kg) |
Stir time (min/time) |
Spindle speed (r/min) |
Power (KW) |
Capacity (T/H) |
Weight (T) |
|
S110 |
1000 |
420*130 |
110 |
3-5 |
44 |
4 |
1-2.2 |
0.92 |
|
S112 |
1450 |
590*117 |
200 |
3-5 |
34.7 |
7.5 |
2-4 |
1.6 |
|
S114 |
1820 |
750*240 |
300-500 |
3-5 |
34 |
15 |
6-10 |
3.5 |
|
S1120 |
2200 |
800*260 |
1000 |
3-5 |
30 |
37 |
10-15 |
5.6 |
wheel grinding mixer working principle
After the machine is on work, the wheels will run continuously in its pan, the charcoal or coal powder is fed in the pan of a charcoal wheel roller mixer with water as well as briquetting binder for grinding. Water can be fed into for mixing during the process to reach a certain moisture level for briquette making. Till the materials are grinded and mixed well, discharging hole can be opened to obtain all the materials within the charcoal wheel roller.
Features of wheel grinding mixer
1). mix and grind at same time.
2). high production efficiency.
3). energy-saving.
4). easy to install and maintain.
5). good sealing property.
