Product Description
Products Description

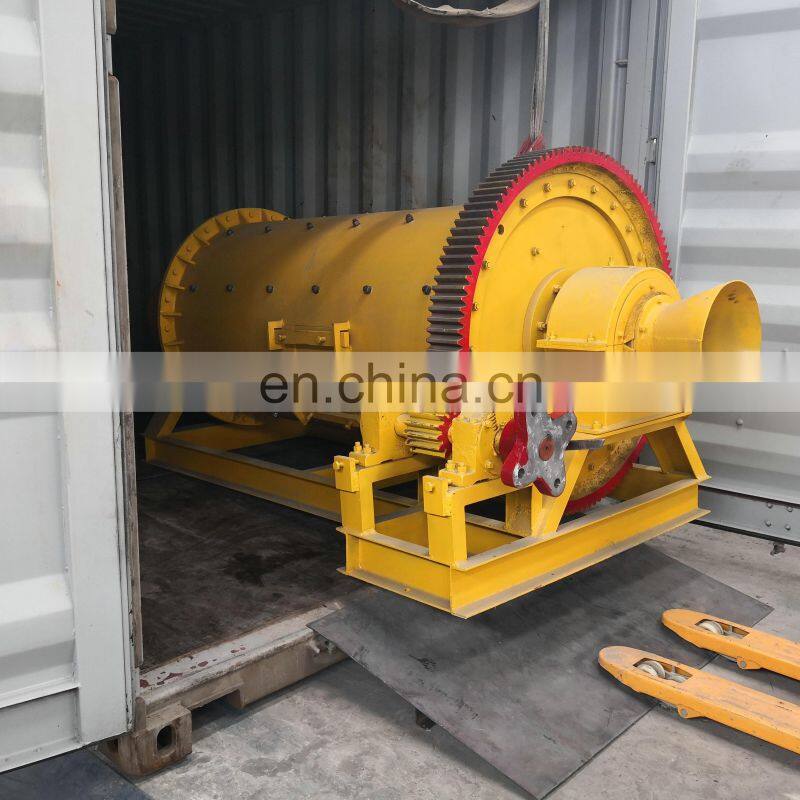

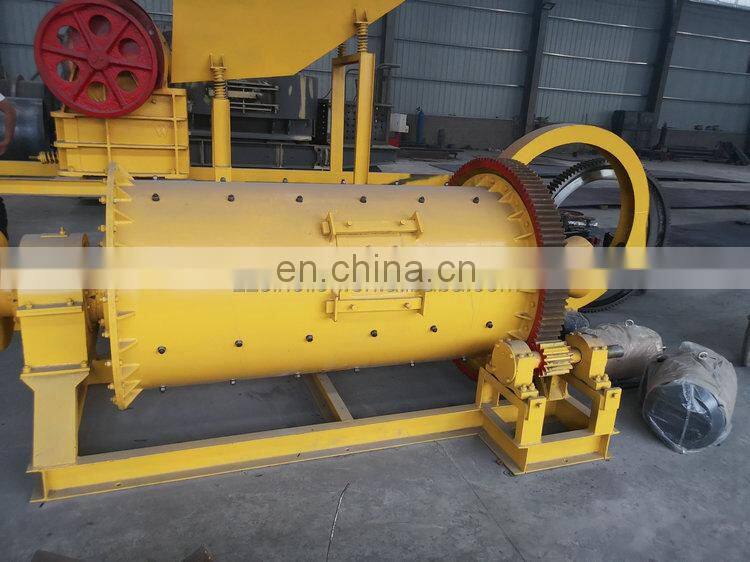

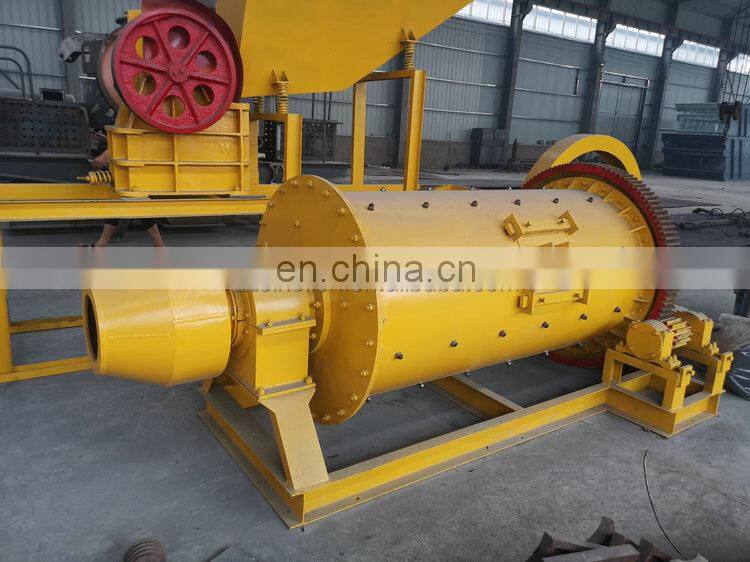

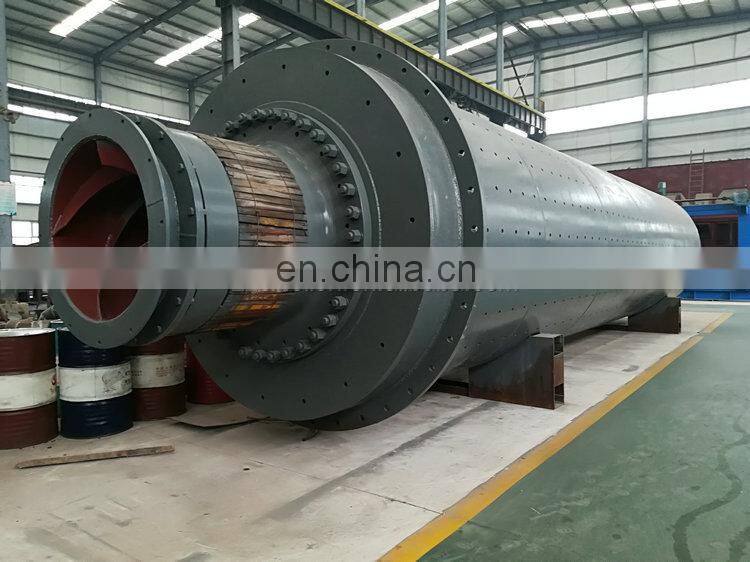

Energy saving small ball mill
Energy saving small ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. such as cement, fire-proof materials, aluminum soil, the emery, glass raw materials, building sand, stone materials, metallurgical slag.
Working principle of energy saving small ball mill
Horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Main technical parameter
Model | Cylinder rotating(r/min) | Grinding media loading(t) | Feed Size(mm) | Discharge Size(mm) | Capacity (t/h) | Power(kw) | Weight(t) |
Φ900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
Φ900*3000 | 38 | 2.51 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
Φ1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
Φ1200*3000 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
Φ1200*4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
Φ1500*3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
Φ1500*4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-6.5 | 90-110 | 21 |
Φ1500*5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 110-132 | 24.7 |
Φ1830*3000 | 24 | 11 | ≤25 | 0.074-0.4 | 4-10 | 132-180 | 28 |
Φ1830*6400 | 24 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Φ1830*7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 210-245 | 36 |
Φ2200*5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-22 | 370 | 48 |
Φ2200*6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 50 |
Φ2200*7500 | 21 | 33 | ≤25 | 0.074-0.4 | 15-29 | 475 | 56 |
Φ2400*7000 | 21 | 39 | ≤25 | 0.074-0.4 | 16-33 | 475 | 69 |
Φ2400*11000 | 21 | 51.5 | ≤25 | 0.04-0.08 | 16-35 | 630 | 99 |
Φ2700*3600 | 21 | 39 | ≤25 | 0.074-0.4 | 16-29 | 475 | 74 |
Φ2700*4500 | 21 | 43.5 | ≤25 | 0.074-0.4 | 20-35 | 500 | 80 |

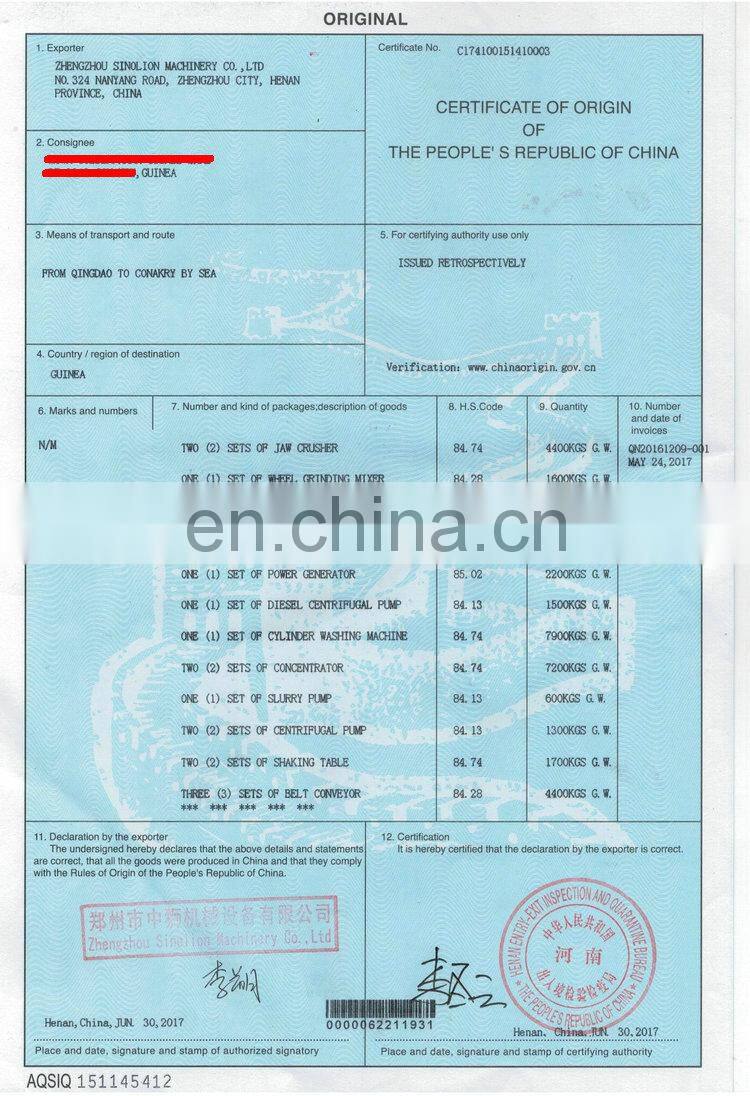

Certifications
Detail information
Product packaging
Company Profile
FAQ
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
