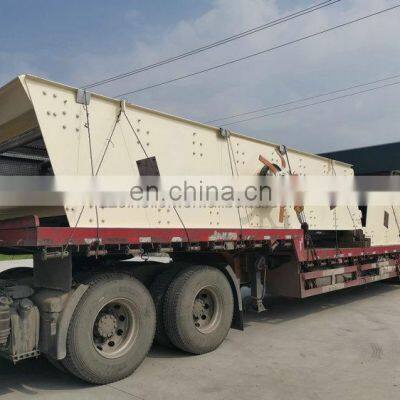

Sand Stone Soild Gravel Aggregate Rotary Sand Gravel Screening Plant Vibrating Screen Separator Price
- T/T Credit Card
You May Like
-
Garbage Sorting Equipment Recyclable Garbage Mixed Garbage Sorting Device
-
Waste Trommel Screen and Belt Conveyor for Waste Recycling Plant
-
Mobile Trommel Screen for Compost, Topsoil, Including Infeed Hopper and Belt Conveyors
-
Supply High Screening Effectiveness Garbage Trommel Screen / Municipal Solid Waste Rotary Drum Sifter
-
High Quality Rotary Compost Sifter /drum Screen Filter for Compost
-
Wheel- Mounted or Tack-mounted Mobile Fertilizer Drum Screen Trommel Compost Sifter
Product Description

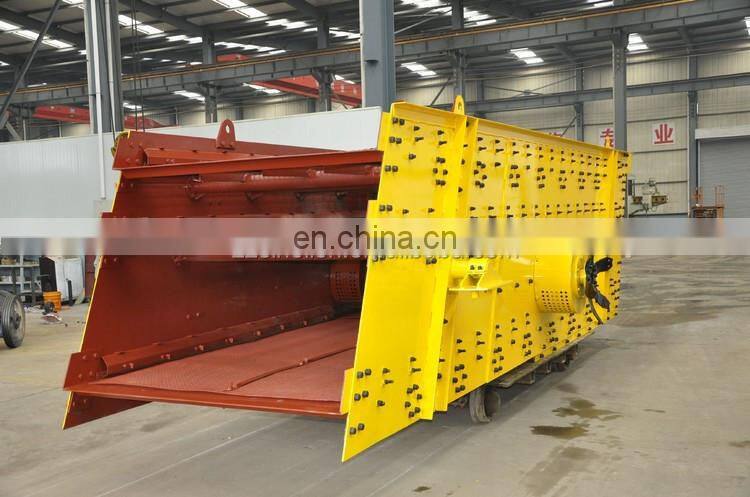

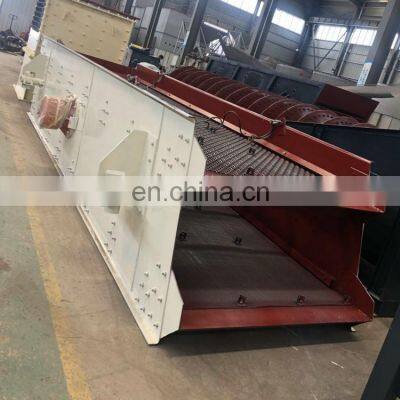

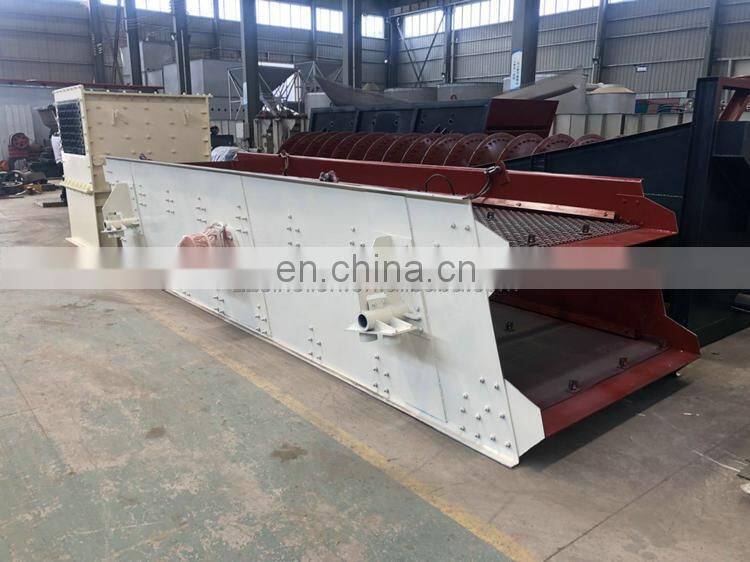

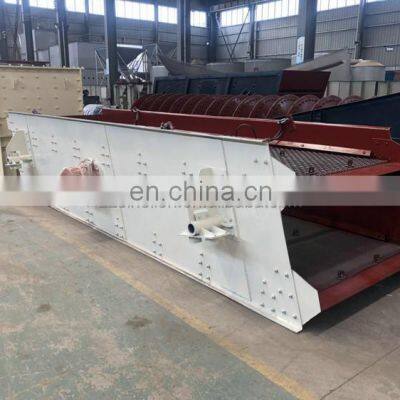

YK Series Circular Vibrating Screen is developed by adsorbing German technology and circular vibrating screen is suitable for screening different sizes of stones. It is widely used in mining, coal dressing, ore dressing, building material, electric power and chemical industries.
Rotary sand gravel screening plant specifications:
| Model | screen deck | installation slope(°) | screen size(mm) | feeding size(mm) |
capacity (t/h) |
motor power (kw) |
weight (kg) |
| YK1230 | 1 | 15 | 4-50 | ≤300 | 10-75 | 5.5 | 1468 |
| 2YK1230 | 2 | 15 | 4-50 | ≤300 | 13-78 | 5.5 | 2253 |
| 3YK1230 | 2 | 15 | 4-50 | ≤300 | 15-80 | 7.5 | 2978 |
| 4YK1230 | 3 | 15 | 4-50 | ≤300 | 17-90 | 7.5 | 3982 |
| YK1235 | 1 | 15 | 4-50 | ≤300 | 20-150 | 5.5 | 1729 |
| 2YK1235 | 2 | 15 | 4-50 | ≤300 | 20-150 | 5.5 | 2474 |
| 3YK1235 | 2 | 15 | 4-50 | ≤300 | 22-150 | 7.5 | 3158 |
| 4YK1235 | 4 | 15 | 4-50 | ≤300 | 22-150 | 7.5 | 4160 |
| 2YK1545 | 2 | 20 | 5-50 | ≤300 | 22-150 | 11 | 5308 |
| 3YK1545 | 3 | 20 | 5-50 | ≤300 | 50-180 | 15 | 5915 |
| 4YK1545 | 4 | 20 | 5-50 | ≤300 | 50-180 | 15 | 7126 |
| 2YK1554 | 2 | 20 | 5-50 | ≤300 | 50-200 | 15 | 5284 |
| 3YK1554 | 3 | 20 | 5-50 | ≤300 | 56-200 | 15 | 6186 |
| 4YK1554 | 4 | 20 | 5-50 | ≤300 | 56-250 | 18.5 | 7284 |
| 2YK1854 | 2 | 20 | 5-80 | ≤300 | 56-300 | 18.5 | 5826 |
| 3YK1854 | 3 | 20 | 5-80 | ≤300 | 60-400 | 18.5 | 7368 |
| 4YK1854 | 4 | 20 | 5-80 | ≤300 | 80-400 | 22 | 8281 |
| 2YK1860 | 2 | 20 | 5-80 | ≤300 | 60-400 | 22 | 6195 |
| 3YK1860 | 3 | 20 | 5-80 | ≤300 | 80-400 | 22 | 7613 |
| 4YK1860 | 4 | 20 | 5-80 | ≤300 | 90-500 | 30 | 8650 |
| 2YK2160 | 2 | 20 | 5-80 | ≤300 | 100-720 | 22 | 6856 |
| 3YK2160 | 3 | 20 | 5-80 | ≤300 | 100-720 | 30 | 9112 |
| 4YK2160 | 4 | 20 | 5-80 | ≤300 | 100-720 | 30 | 10405 |
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
