High Quality And Hot Sale Gold Trommel Screening Equipment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Large Capacity Gold Trommel Screener Machine for Aluvial Sand Gold ScreeningNegotiableMOQ: 1 -
CE Approved Wear Resistant Stone Sand Trommel Screen /rotary Trommel Drum ScreenNegotiableMOQ: 1
-
Rotary Screen, Garbage Sorting Mining Cylinder, Drum Sand and Gravel SeparatorNegotiableMOQ: 1
-
Msw Municipal Solid Waste Trommel Screen and Rotary Drum Screen for SaleNegotiableMOQ: 1
-
Heavy Rotary Trommel Type Rock Screening Equipment for Mine Sieving ScreenNegotiableMOQ: 1
Product Description
High Quality And Hot Sale Gold Trommel Screening Equipment
Product Application of hot trommel screen machine:
The trommel screen is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining and other industries. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system.
The Trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spiral chute, jig etc.
Technical parameter of hot sale trommel screen equipment price:
Model |
Capacity
(t/h)
|
Power
(kw)
|
Diameter
(mm)
|
Length
(mm)
|
Discharge
(mm)
|
Input
(mm)
|
Dimension
(mm)
|
YGTS1020 |
20-30 |
4 |
1000 |
2000 |
0-100 |
≤300 |
3390×1400×2140 |
YGTS1225 |
30-50 |
5.5 |
1200 |
2500 |
0-100 |
≤300 |
4146×1600×2680 |
YGTS1545 |
50-120 |
11 |
1500 |
4500 |
0-100 |
≤400 |
8160×2300×3080 |
YGTS1548 |
80-150 |
15 |
1800 |
4800 |
0-100 |
≤400 |
8460×2300×2500 |
YGTS1848 |
100-200 |
15 |
1800 |
4800 |
0-100 |
≤400 |
8460×2300×2700 |
YGTS2060 |
300-400 |
30 |
2000 |
6000 |
0-100 |
≤400 |
9680×2300×3420 |
Main Features of hot sale trommel screen:
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light, and the mesh hole is not easy to block.
2. The roller support adopts the integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise.3. The internal drum screen accessories adopt split design, the structure is simple, and the replacement and repair are quick and convenient.
4. The drum body adopts an effective full sealing structure, which does not dust or pollute.
5. Safe and reliable operation, adopting deceleration transmission, high transmission efficiency, low power distribution, low energy consumption and obvious energy saving effect.
6. Different screen materials can be used according to customer requirements, mesh size, high screening efficiency, long service life and low maintenance cost.

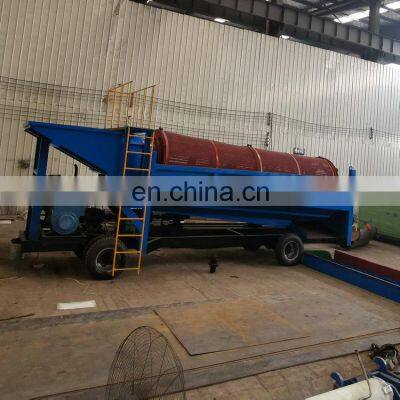

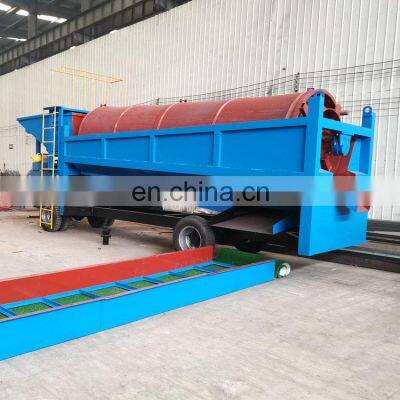

Detailed Images
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
