Stainless steel fruit drying machine, fruit drier machine, vegetable drying machine, fish drying machine, mushroom dryer machine,mushroom drying machine

1. Details for the machine

This equipment is mainly used in drying fish, medicine, sesame, vegetables, fruit, seafood, flowers, such as ginseng, red ginseng, ginseng, angelica, cordyceps sinensis, honeysuckle, conventional, schisandra, astragalus and konjac, yam, maize seed, tobacco seeds, pumpkin, onion, spinach, brake, wild, carrots, celery, cowpea, chili, beans, tomatoes, mushrooms, mushrooms, agaric, garlic, ginger, raisins, kiwi fruit, banana, litchi, longan, apple, hawthorn, persimmon, scallops, dried fish, kelp, vinasse, chrysanthemum, rose dry food processing, etc. The productivity is high and with low consume.

There are trolleys with shelves inside the dryer and many plates on the shelves. You can put your fish in the plates, and then put the plates on the shelves.

2. Machine specification:



Model

Number of Trolley

Number of

Plate

Motor

Area of the plates

Productivity

(fresh)

Dimension

JX-1

1

24

9kw

 5.76m²

50kg/batch

1.55*0.8*2.2m

JX-2

2

48

12kw

11.52m²

100kg/batch

2.1*1.1*2.3m

JX-4

4

96

30kw

23.04m²

200kg/batch

2.1*2*2.3m

JX-6

6

144

22kw

34.56m²

300kg/batch

2.6*2.1*2.3m

JX-8

8

192

60kw

46.08m²

400kg/batch

4*2*2.3m

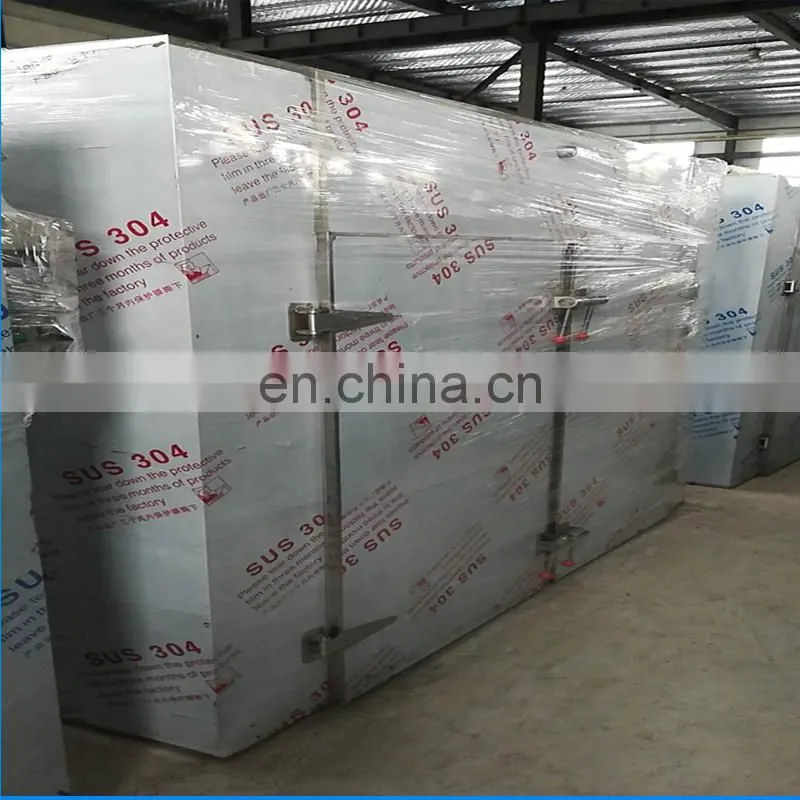

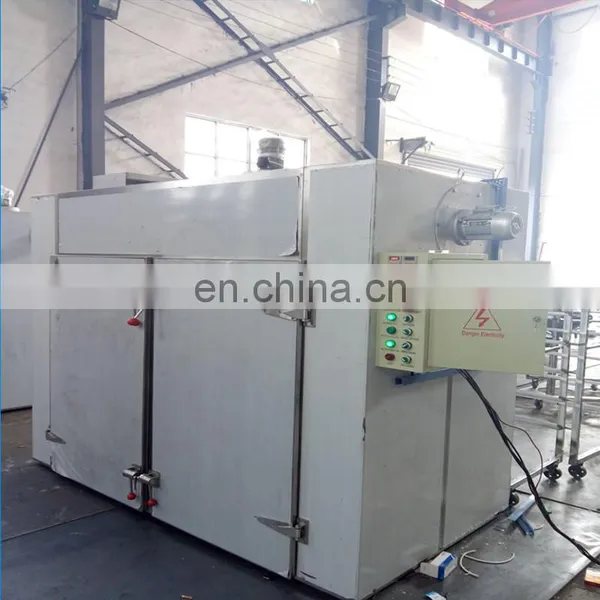

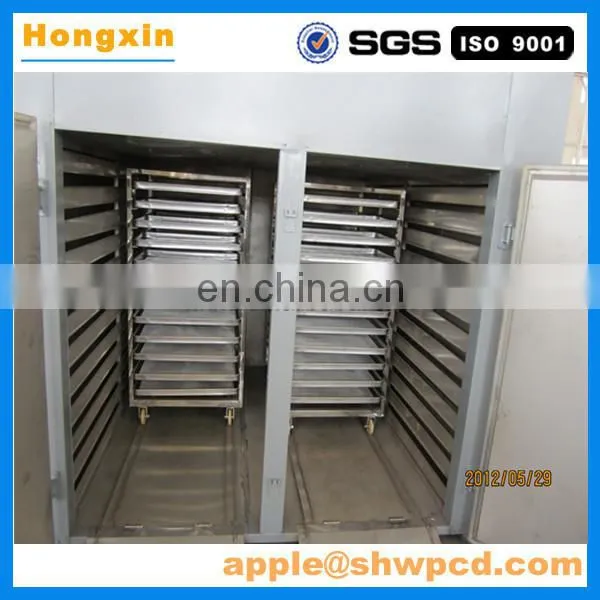

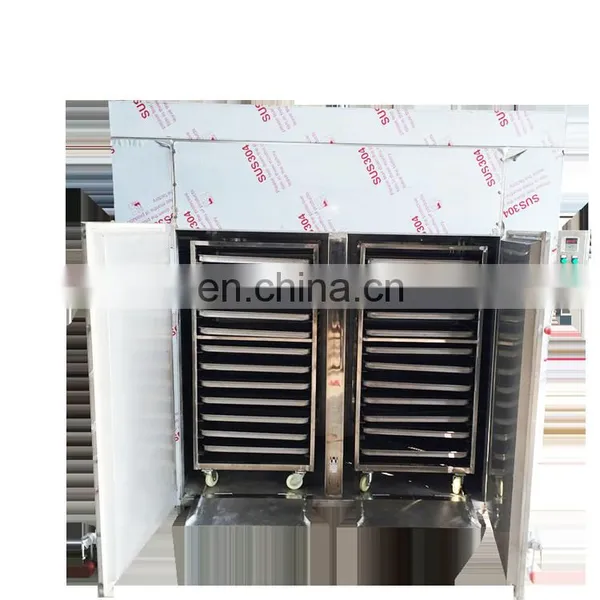

Machine photo:

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machinestainless steel hot air mushroom drying machine, fruit drying machine, banana drying machinestainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine

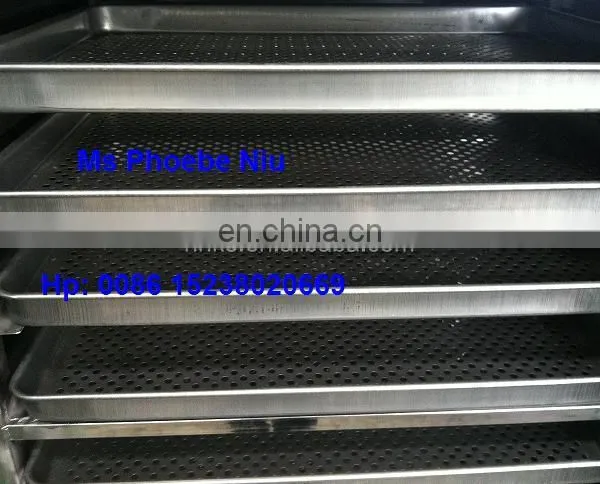

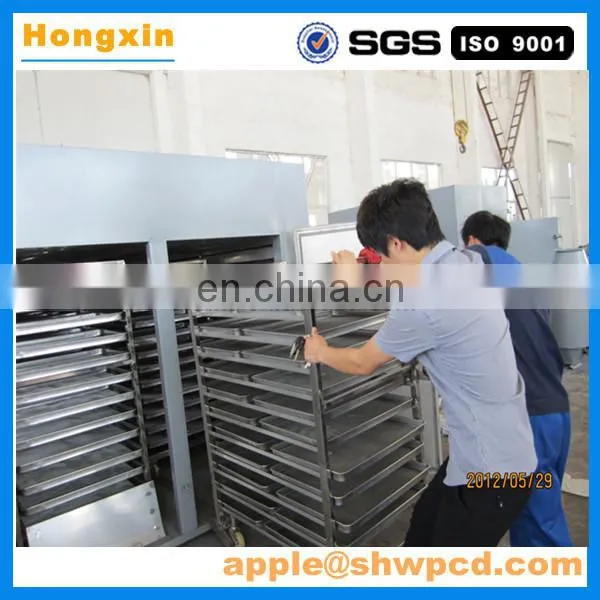

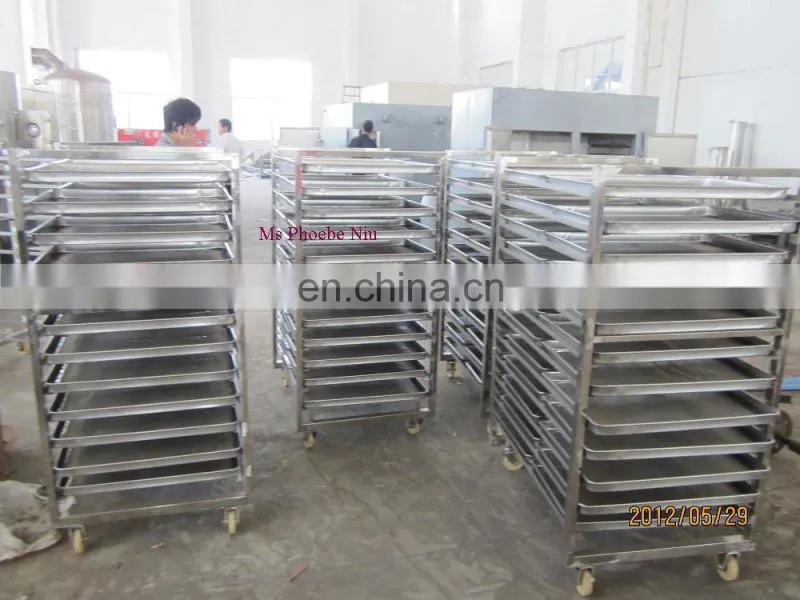

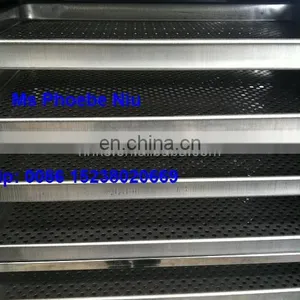

Trolley photo:

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine





stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine



Detailed Images

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machinestainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine

stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine

 stainless steel hot air mushroom drying machine, fruit drying machine, banana drying machinestainless steel hot air mushroom drying machine, fruit drying machine, banana drying machinestainless steel hot air mushroom drying machine, fruit drying machine, banana drying machine
