2020 Good Price Sale High Efficiency Stone Circular Vibrating Feeder For Mining

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	Screen Deck	Installation Slope(°)	Screen Size(m2)	Screen Pore Size(mm)	Feeding Size(mm)	Capacity (t/h)	Motor Power (kw)	Weight (kg)	Dimension (LxWxH)(mm)
YK1230	1	15	3.6	4-50	≤300	10-75	5.5	1468	3430×1860×1050
2YK1230	2	15	3.6	4-50	≤300	13-78	5.5	2253	3430×1860×1050
3YK1230	3	15	3.6	4-50	≤300	15-80	7.5	2978	3570×1860×1510
4YK1230	4	15	3.6	4-50	≤300	17-90	7.5	3892	3740×1860×2060
YK1235	1	15	4.2	4-50	≤300	20-150	5.5	1729	3605×2393×1050
2YK1235	2	15	4.2	4-50	≤300	20-150	5.5	2474	3605×2393×1050
3YK1235	3	15	4.2	4-50	≤300	22-150	7.5	3158	3725×1452×1200
4YK1235	4	15	4.2	4-50	≤300	22-150	7.5	4160	4010×1452×1200
2YK1545	2	20	6.75	5-50	≤300	22-150	11	5308	5042×3090×1230
3YK1545	3	20	6.75	5-50	≤300	50-180	15	5915	4972×3458×1610
4YK1545	4	20	6.75	5-50	≤300	50-180	15	7126	4915×3458×2060
2YK1554	2	20	8.1	5-50	≤300	50-200	15	5284	5830×3458×1230
3YK1554	3	20	8.1	5-50	≤300	56-200	15	6186	6110x3515x1610
4YK1554	4	20	8.1	5-50	≤300	56-250	18.5	7284	6320×3515×2060
2YK1854	2	20	9.72	5-80	≤300	56-200	18.5	5826	5880×2550×1420
3YK1854	3	20	9.72	5-80	≤300	56-300	18.5	7368	6080×2550×1610
4YK1854	4	20	9.72	5-80	≤300	56-300	22	8281	6280×2550×2160
2YK1860	2	20	10.8	5-80	≤300	60-400	22	6195	6552×3730×1320
3YK1860	3	20	10.8	5-80	≤300	80-400	22	7613	6862×3730×1610
4YK1860	4	20	10.8	5-80	≤300	90-500	30	8650	7123×3730×2061
2YK2160	2	20	12.6	5-80	≤300	100-720	22	6856	6552×3958×1320
3YK2160	3	20	12.6	5-80	≤300	100-720	30	9112	6862×3958×1610
4YK2160	4	20	12.6	5-80	≤300	100-720	30	10405	7123×3958×2061
2YK2460	2	20	14.4	5-80	≤300	130-750	30	8503	6552×4208×1320
3YK2460	3	20	14.4	5-80	≤300	130-750	37	10411	6862×4208×1610
4YK2460	4	20	14.4	5-80	≤300	130-750	45	12068	7123×4208×206

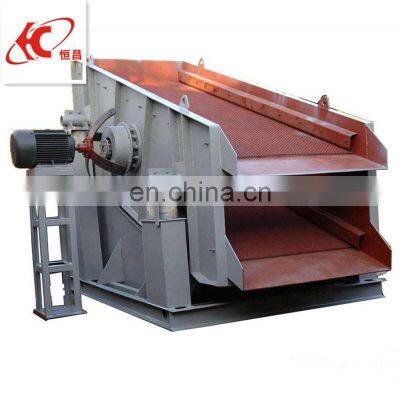

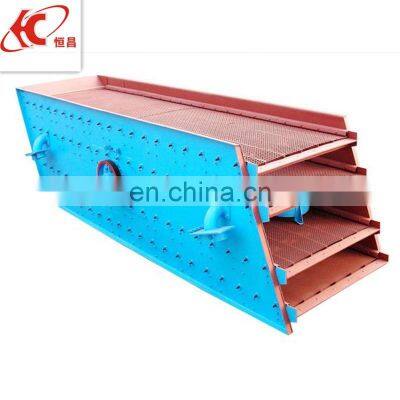

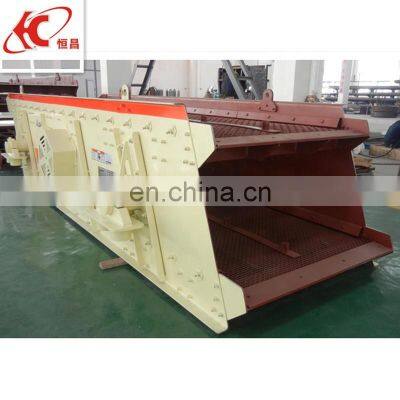

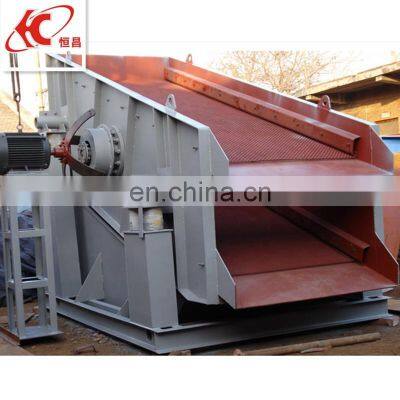

The circular vibrating screen utilizes a motor external mopping vibrator to make the screen body reciprocally vibrate in the direction of the exciting force, and the material is circularly moved on

the screen surface to achieve the purpose of screening. It consists of vibration source, sieve body, screen mesh, vibration damping device, base, etc. It has reasonable structure and is durable.

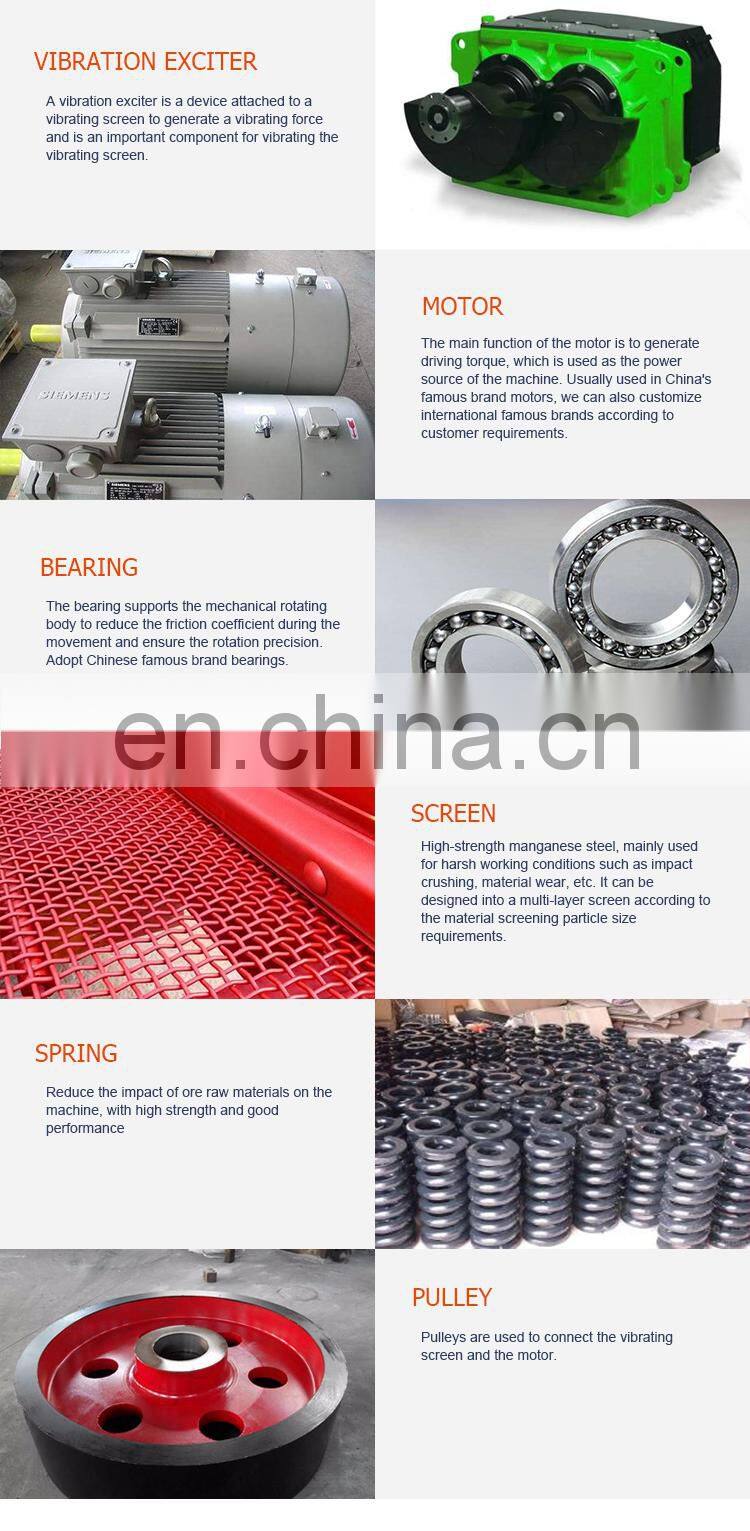

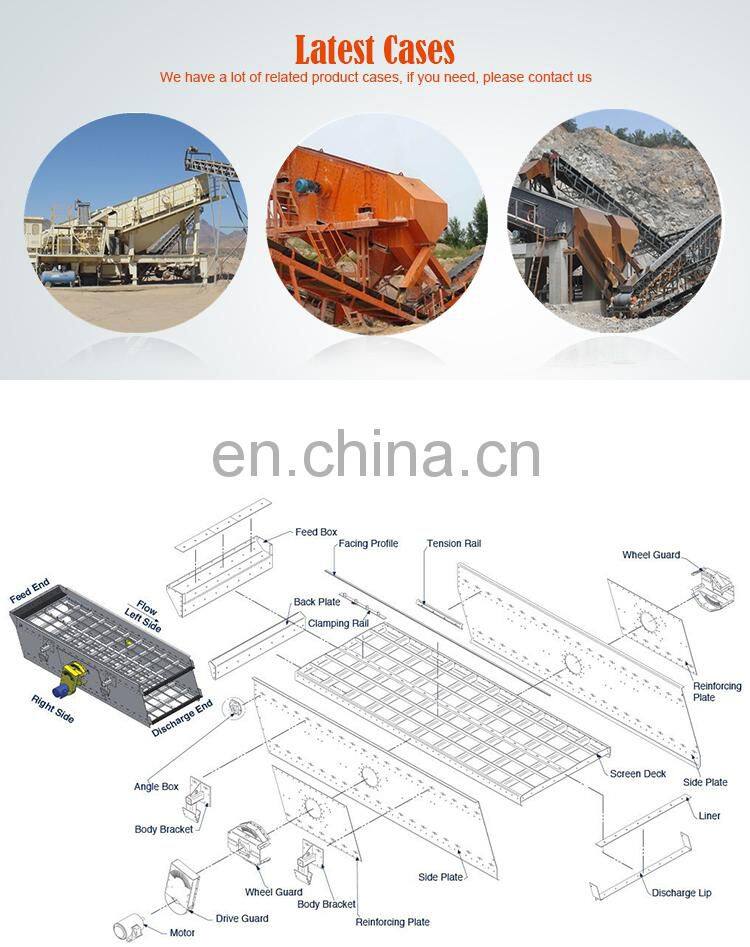

The circular vibrating screen mainly comprises a sieve box, a screen mesh, a vibrator, a vibration-damping spring device, a chassis, a suspension (or support) device and an electric motor.
The circular vibrating screen structure is composed of a spring support group, a transmission device, a sieve box, a support base, a thin oil lubrication vibrator and the like.
The drive screen machine adopts a petal coupling and a flexible disc coupling which are simple in structure and easy to manufacture and repair, and overcomes the defect that the universal joint is easy to be damaged; the vibrator adopts an eccentric structure and has a simple structure; The application of the feeding box and the feeding box increases the effective screening area of the vibrating screen, and at the same time prolongs the service life of the feeding end screen; the transmission part adds an intermediate transition bearing seat, and the application of the intermediate transition bearing seat effectively protects the motor and extends the motor Service life. The motor is mounted on the left side of the screen frame and can also be mounted on the right side of the screen frame. This series of screens is mounted in a seat. The adjustment of the screen inclination can be achieved by changing the height of the spring support.
Characteristics

The circular vibrating screen adopts the cylindrical eccentric shaft vibration exciter and the partial block to adjust the amplitude, which is convenient to use and maintain; the spring steel woven screen or the punching sieve plate has a long service life and is not easy to block the hole; the rubber vibration isolation spring has a long service life. Low noise, smooth over-resonance area, etc.
Features of the circular vibrating screen:
(1) Large processing capacity and high screening efficiency.
(2) The vibrator is lubricated with bearing thin oil and external block eccentric structure. It has the characteristics of large excitation force, small bearing load, low temperature and low noise. (The bearing temperature rise is less than 35°).
(3) The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period. (It takes only 1 to 2 hours to change the vibrator).
(4) The side plate of the sieve machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate is connected by torsion-cutting high-strength bolts, without welding, and the beam is easy to replace.
(5) The sieve machine adopts rubber spring to reduce vibration, and has the advantages of low noise, long service life, stable over-common vibration zone and small dynamic load of each branch of the sieve machine.
(6) The motor and the exciter are connected by a flexible coupling, which has the advantages of long service life and small impact on the motor. [2]
Common areas
Chemical industry: resins, coatings, industrial pharmaceuticals, cosmetics, paints, Chinese medicine powder, etc.
Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, juice, etc.
Metal, metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, abrasive powder, refractory material, kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.
Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.
