Home > Products > Ball mill machine > High Capacity Large Diameter Mining Rock Gold Ore Mineral Processing Stone Grinding Ball Mill Machine For Sale
High Capacity Large Diameter Mining Rock Gold Ore Mineral Processing Stone Grinding Ball Mill Machine For Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Price Sales 5tph Iron Tin Manganese Lead Aluminum Powder Chrome Quartz Ball Mill Machine Stone Grinding For Sale
-
High Capacity 10-100 Tph Copper Lead Manganese Iron Slag Sliver Limestone Powder Ball Mill Machine Stone Grinding For Sale
-
1200X24000 Diesel Engine Aluminum Powder Mineral Iron Slag Sliver Limestone Ball Mill Machine Stone Grinding For Sale
-
High Quality Wet and Dry Type Mining Cement Limestone Powder Lead Zinc 30tph Ball Mill Machine Stone Grinding For Sale
-
China Factory Price Small Cement Limestone Powder Iron Slag Sliver 600X1200 Ball Mill Machine Stone Grinding For Sale
-
Large Capacity 5-100tph Cement Limestone Quartz Dry Grinding Ore Copper Ball Mill Machine Stone Grinding For Sale
Product Description
Product Description

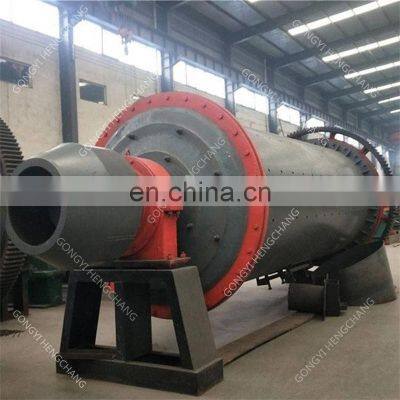

High Capacity Large Diameter Mining Rock Gold Ore Mineral Processing Stone Grinding Ball Mill Machine For Sale

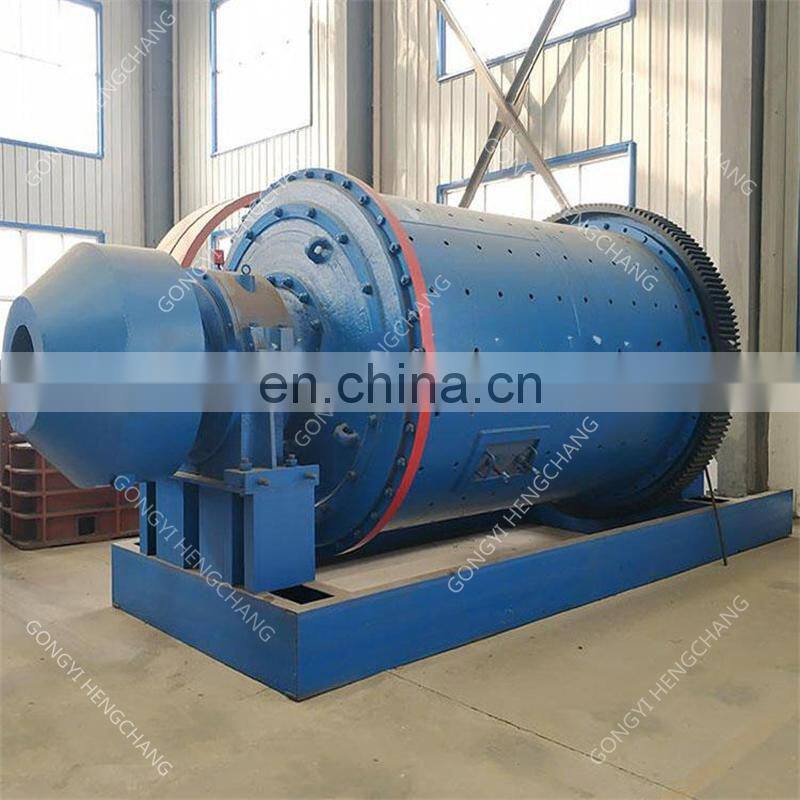

Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.
Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such ascement, silicate, new building material, refractory material, fertilizer, ferrous metal, non ferrous metal and glass ceramics.

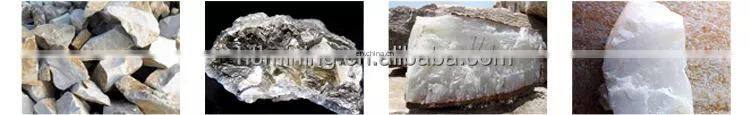

Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such ascement, silicate, new building material, refractory material, fertilizer, ferrous metal, non ferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
Detailed Images

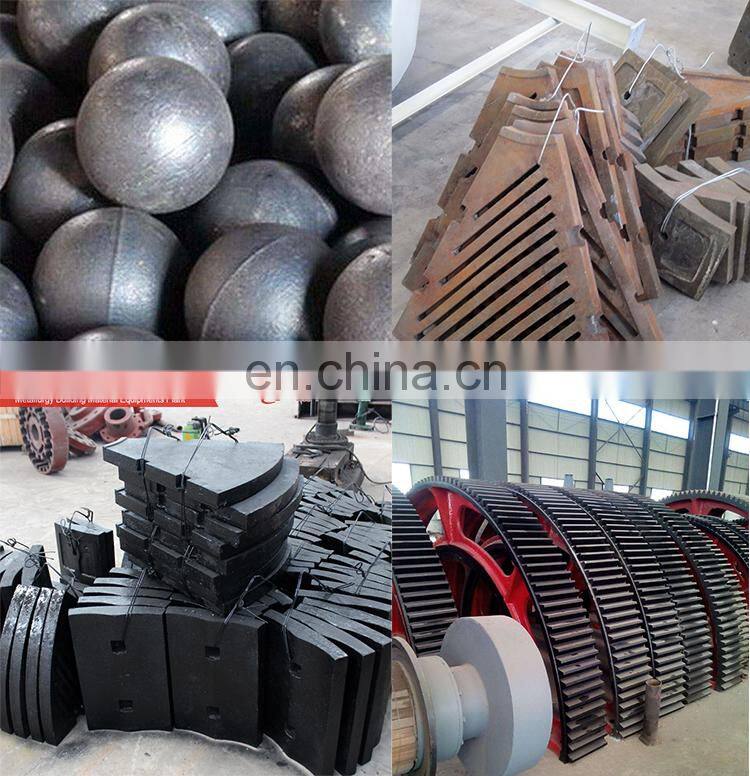

For ball mill, the main spare parts is steel balls, ball mill liners and grate plates. If the customer need the ball liners and grate plates, they can send us the drawing of liners and grate plates, we can cast for them in our casting factory. If you do not have the liner data,we can send our engineer to your site and scale the liners, then we can make the drawing and cast the liner in our foundry factory for you.

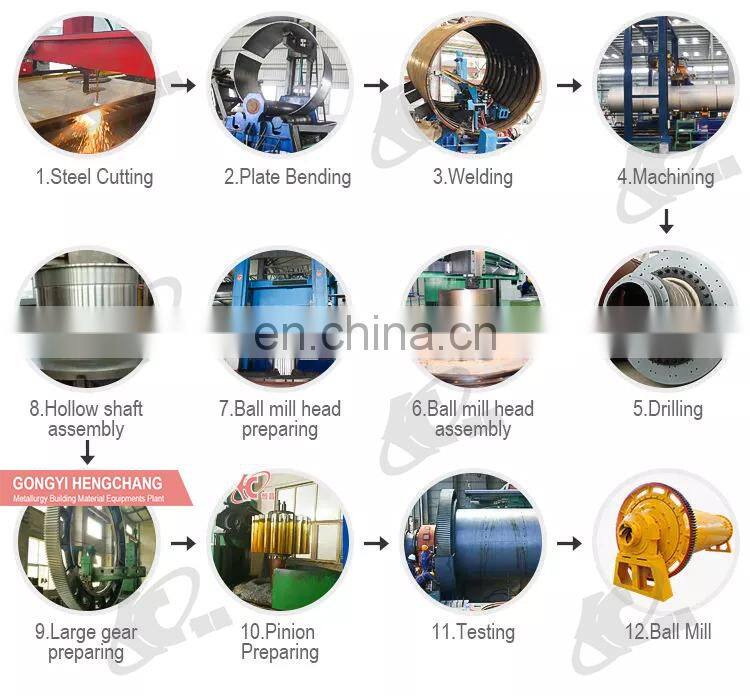

Production Process >>>With advanced machining equipment, we will offer a most suitable machine for you.
1.Steel Cutting 2.Plate Bending 3.Welding 4.Machining 5.Drilling 6.Ball mill head assembly
7.Ball mill head preparing 8.Hollow shaft assembly 9.Large gear preparing 10.Pinion Preparing 11.Testing 12.Ball Mill
1.Steel Cutting 2.Plate Bending 3.Welding 4.Machining 5.Drilling 6.Ball mill head assembly
7.Ball mill head preparing 8.Hollow shaft assembly 9.Large gear preparing 10.Pinion Preparing 11.Testing 12.Ball Mill
Product Application

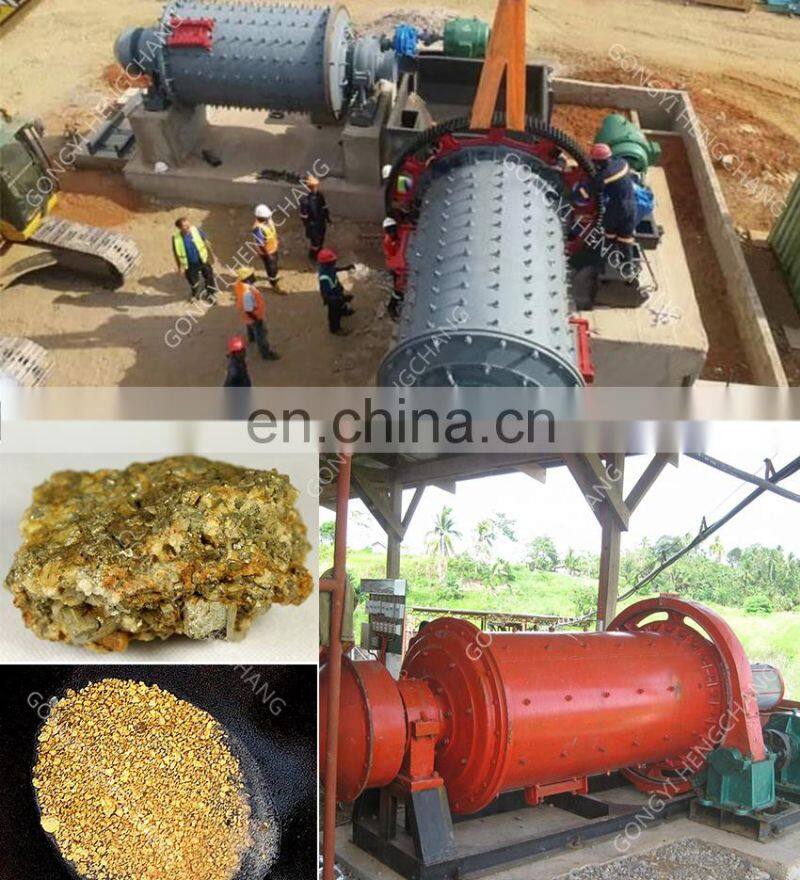

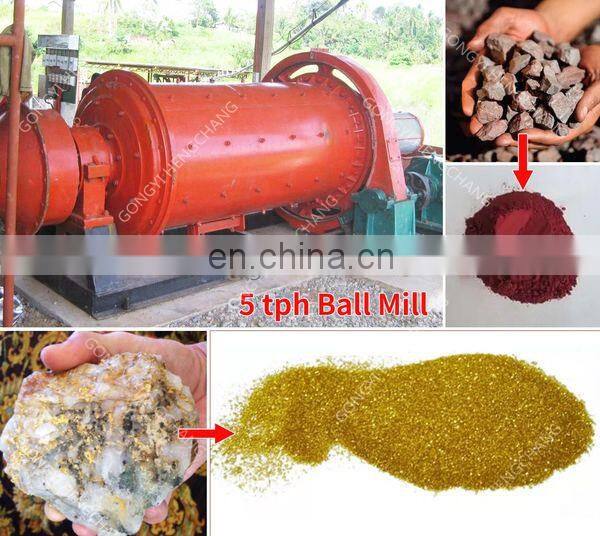

Energy saving mining ball mill is a key equipment in beneficiation plant.

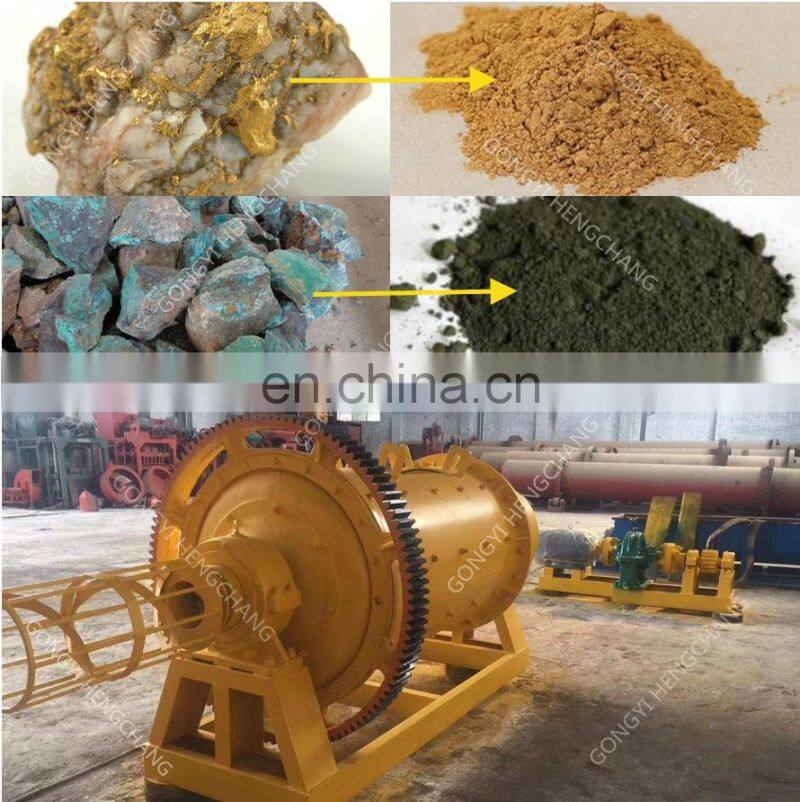

It is widely used in ore dressing production line such as gold ore, cooper ore, magnetite ore, antimony, calcite, kaolin, mica, clay, bentonite etc ferrou metal or nonferrous metal
materials.
materials.
Working principle

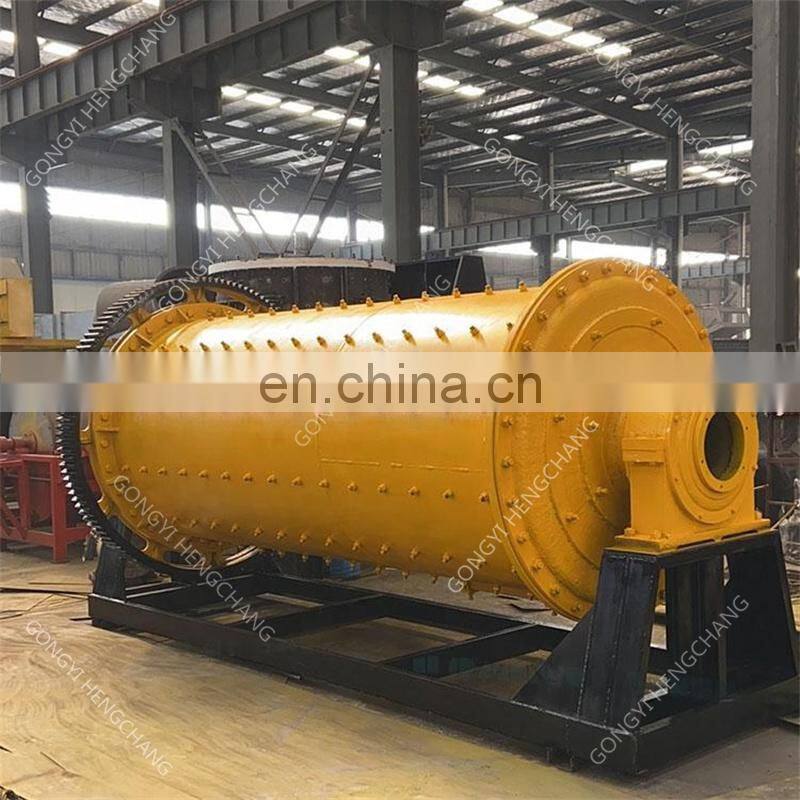

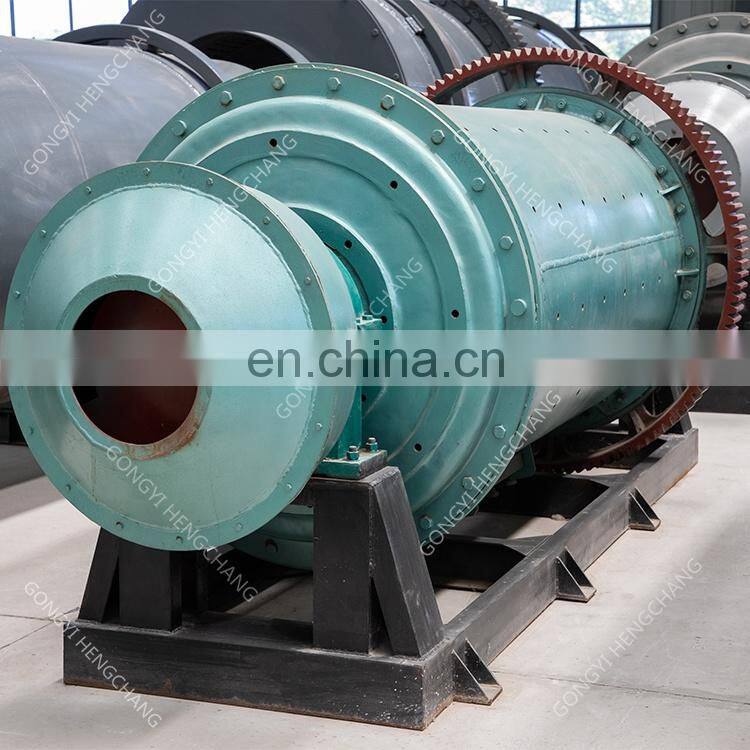

Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall.
Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.
Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 1.6-5.8 | 37 |
1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | -- | 800 |
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.

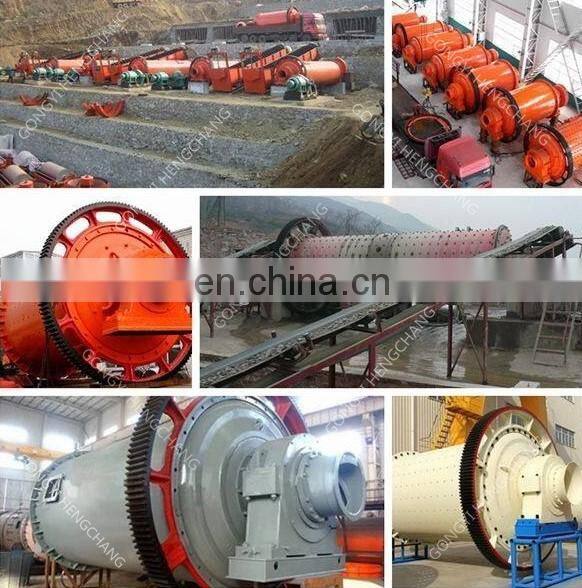

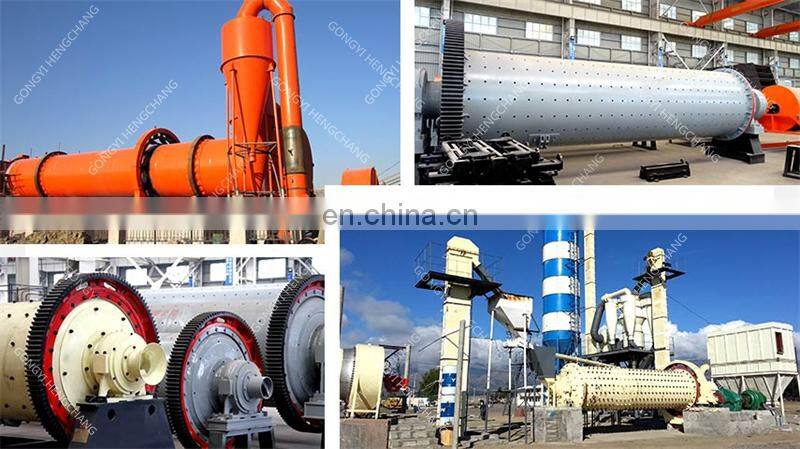

Customer Site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments.
investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
4.Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time ?
A: The lead time is 10-20 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time ?
A: The lead time is 10-20 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on.
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if i want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
Q:What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if i want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
