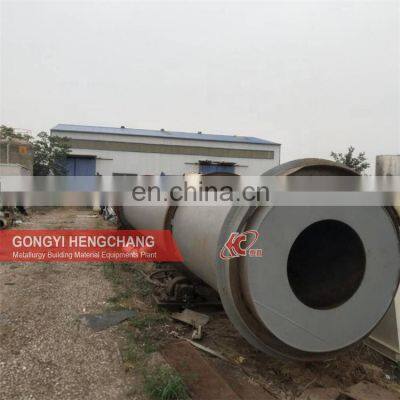

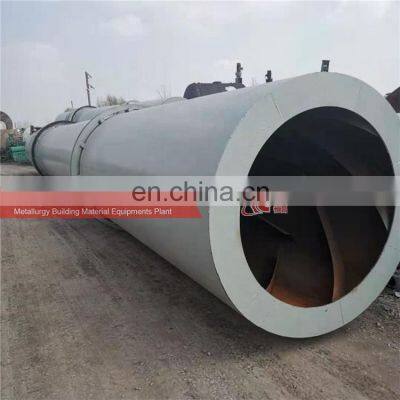

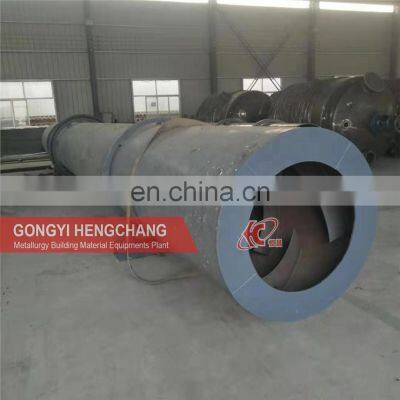

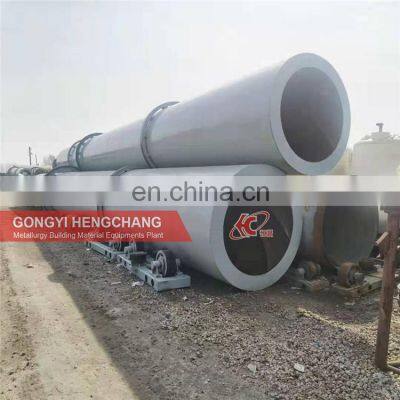

Rotary Dryer in Food Industry Jurnal Rotary Dryer Kiln Dryer for Sale

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Rotary Dryer in Food Industry Jurnal Rotary Dryer Kiln Dryer for Sale

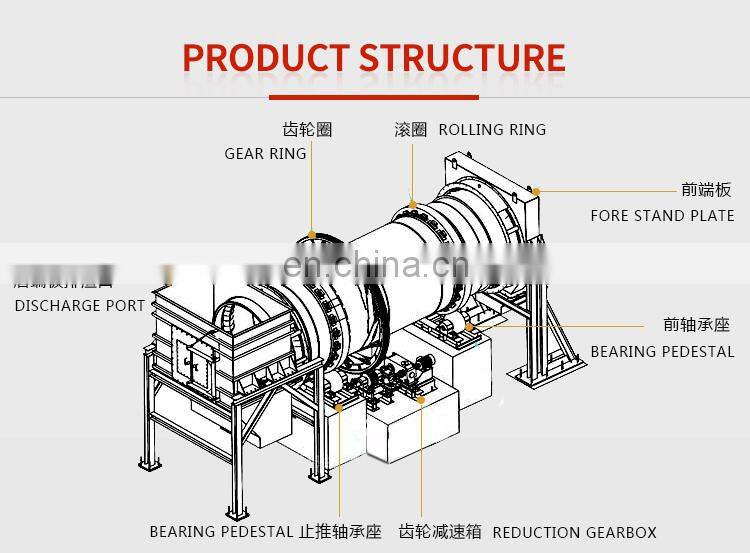

The rotary kiln mainly consists of kiln body, loading device, burning device, unloading device, electronic appliance, dust collector, etc. Different lime kilns have different structures. Their process flow are almost same.But the equipment value has big distinction, of course the results are different.

Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process.
Materials produced using rotary kilns include:Cement, Lime, Refractories,Metakaolin, Titanium dioxide, Alumina, Vermiculite, Iron ore pellets They are also used for roasting a wide variety of sulfide ores prior to metal extraction

Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.

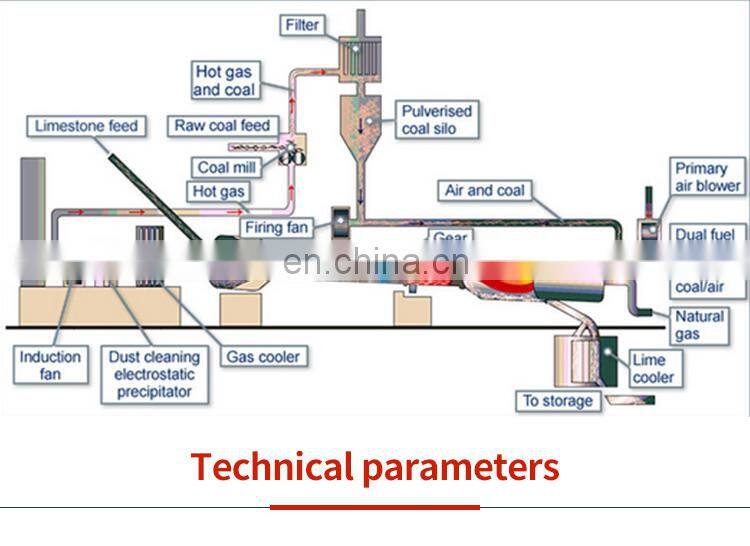

Working principle Of Rotary Cement Kiln

The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material will be calcined in the shell after feeding at the head of the kiln. The fuel will be spurted from the kiln tail and start burning. The hot air from the end blow into the kiln directly impacting the raw materials. And then will be turned over along the direction of circle and mixing from the high-end to low-end along the axial because of the shell’s slope and low speed rotation. The material will be calcined into the clinker after discomposition, calcination and cooling process. So they will discharge from the low-end.

Technical Parameter Of Rotary Cement Kiln

Model(m)	Shell size					Capacity(t/h)	Rotating speed(r/min)	Power(kw)	Weight(t)
Model(m)		Dia.(m)	Length(m)	Slope(%)		Capacity(t/h)	Rotating speed(r/min)	Power(kw)	Weight(t)
1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5
1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52
1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2
1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59
2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1
2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3
2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.4	55	196.29
2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5
2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58
3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310
3.2×50	3.2	50	4	40.5-42	0.6-3	125	278

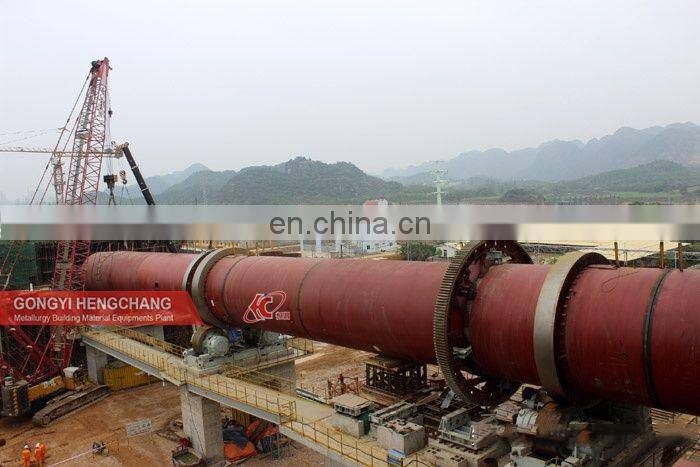

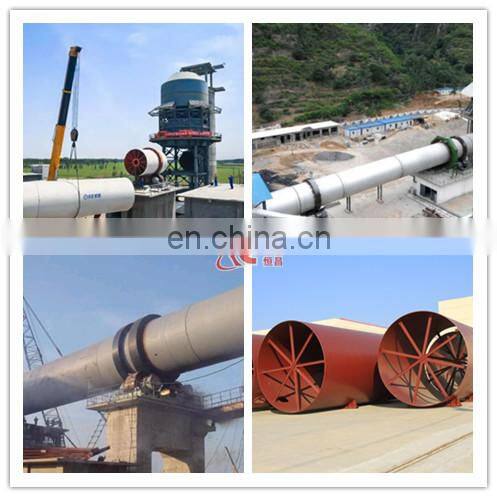

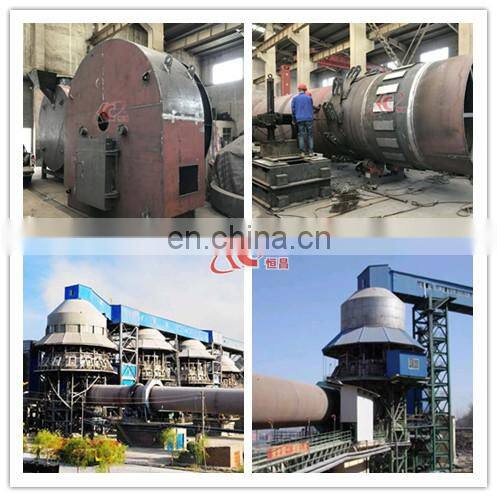

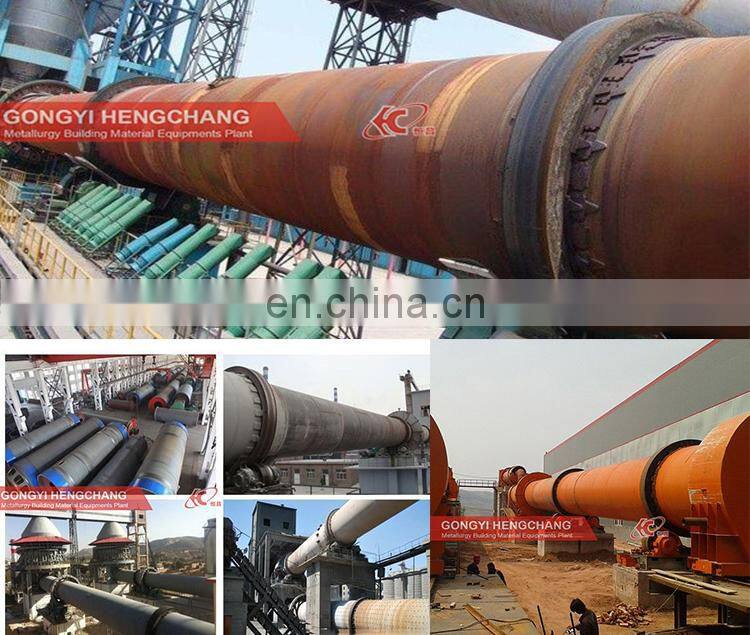

The Customer Site Of Rotary Cement Kiln

Advantage Of Rotary Cement Kiln

1.High Automation Level
The lime rotary kiln is with advanced structure. Its pre-heater with low-pressure loss can improve preheating effect efficiently.
After preheating, the resolution ratio of the lime-stones can reach 20~25% when they enter the kiln. Besides, the lime-stones, with fine fraction about 10~15mm, can be used directly.
2.Waste Heat be Reused Effectively

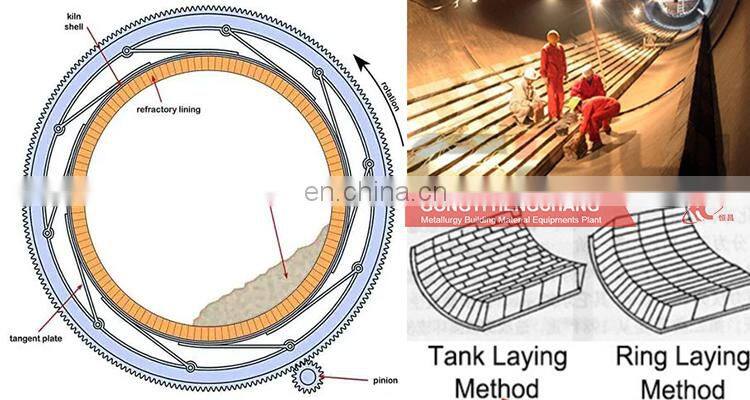

The two sides of the reliable rotary kiln are sealed by the combined scales, which can make the air leakage coefficient less than 10%. Composite refractory materials should be used in order to reduce the loss of radiant heat.
3.Low Energy Consumption
The filling vertical cooler, round or square, can be zoned-ventilation, which can make the temperature of lime-stones in the cooler at about 80 degress Celsius. As a result, it is very convenient to transport and store. It can also pre-heater the secondary air up to the temperature above 700 degress Celsius, then the waste heat can be recycled to reduce energy consumption.

Company Profile

Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.

(rotary dryer in food industry / rotary kiln dryer for sale / rotary kiln dryer )

Customer Visit & Our Service

Our customers / services

A.Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
B.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
C.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-line operators;4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service;7.Provide technical exchanges...

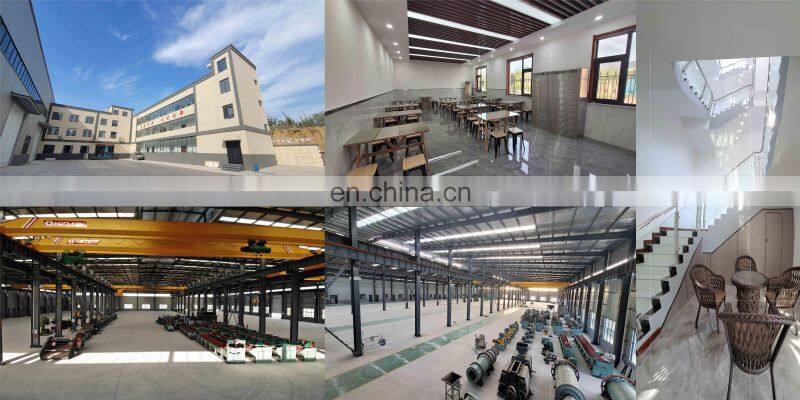

Our Workshop

1.We are factory and be able to give you the lowest price than market one;

2.Our products have been exported to over 80 countries and widely used in global mining and construction industry;

3.We have a professional after-sale service team to promptly and thoroughly solve your problems;

4.Provide free process design.

Packing and delivery

Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.

Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.

(rotary dryer in food industry / rotary kiln dryer for sale / rotary kiln dryer )

FAQ

Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.

Remarks: The price will depend on different models.

Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
