Fast recovery diode

FOB Price

US$ 35 - 85 / Piece

20 Pieces(Min. Order)

Port NINGBO
Payment TermsT/T L/C
Delivery Detail14 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Place of Origin

China

Product Description

Feature
Full diffusion process,capsule type ceramic package;
distributed extension to amplify the gate structure;
Excellent dynamic characteristic;
Low switching loss double-side cooling;
Fast switching performance
Typical applicaiton
Inveerter , chopper , inductor
Various types of forced converter

Selection the Part No.

PART NO.	IT(AV)	VDRM VRRM	ITSM	VTM		VTO	rT	tq	RthJC	RthCH	TJM	F±10%	outline
PART NO.	TC=55ºC		10ms	@ITM &TC=25ºC		TJM						F±10%	outline
	A	V	KA	V	A	V	mΩ	μs	K/W	K/W	ºC	KN
UP to 1600V
KK1170-16	1170	1000-1600	15.0	2.25	1500	1.20	0.450	5-10	0.030	0.0080	125	15	1
KK1170-16	1170	1000-1600	15.0	2.25	1500	1.20	0.450	11-20	0.030	0.0080	125	15	1
KK1420-16	1420	1000-1600	20.3	2.15	2000	1.15	0.320	5-10	0.024	0.0060	125	20	2
KK1420-16	1420	1000-1600	20.3	2.15	2000	1.15	0.320	11-20	0.024	0.0060	125	20	2
UP to 1800V
KK930-18	930	1200-1800	10.0	2.43	1500	1.36	0.500	11-20	0.030	0.0080	125	15	1
KK930-18	930	1200-1800	10.0	2.43	1500	1.36	0.500	21-30	0.030	0.0080	125	15	1
KK1220-18	1220	1200-1800	12.0	2.39	2000	1.36	0.360	11-25	0.024	0.0060	125	20	2
KK1220-18	1220	1200-1800	12.0	2.39	2000	1.36	0.360	25-35	0.024	0.0060	125	20	2
KK1330-18	1330	1200-1800	14.0	2.35	2000	1.38	0.330	11-25	0.020	0.0050	125	24	3
KK1330-18	1330	1200-1800	14.0	2.35	2000	1.38	0.330	25-35	0.020	0.0050	125	24	3
KK1460-18	1460	1200-1800	16.0	2.65	3000	1.34	0.320	11-25	0.018	0.0045	125	30	4
KK1460-18	1460	1200-1800	16.0	2.65	3000	1.34	0.320	25-35	0.018	0.0045	125	30	4
KK1750-18	1750	1200-1800	18.0	2.54	3000	1.37	0.280	11-25	0.016	0.0040	125	35	5
KK1750-18	1750	1200-1800	18.0	2.54	3000	1.37	0.280	25-35	0.016	0.0040	125	35	5
KK2080-18	2080	1200-1800	21.0	2.39	3000	1.39	0.230	11-25	0.013	0.0035	125	45	6
KK2080-18	2080	1200-1800	21.0	2.39	3000	1.39	0.230	25-35	0.013	0.0035	125	45	6
KK2240-18	2240	1200-1800	23.0	2.58	4000	1.40	0.210	21-30	0.012	0.0035	125	50	7
KK2240-18	2240	1200-1800	23.0	2.58	4000	1.40	0.210	30-40	0.012	0.0035	125	50	7
KK2940-18	2940	1200-1800	35.6	2.19	4000	1.30	0.150	21-30	0.010	0.0030	125	56	8
KK2940-18	2940	1200-1800	35.6	2.19	4000	1.30	0.150	30-40	0.010	0.0030	125	56	8
KK4470-18	4470	1200-1800	45.0	2.12	5000	1.34	0.100	21-30	0.007	0.0020	125	90	10
KK4470-18	4470	1200-1800	45.0	2.12	5000	1.34	0.100	31-40	0.007	0.0020	125	90	10
KK5260-18	5260	1200-1800	55.0	2.05	6000	1.30	0.080	21-30	0.005	0.0015	125	110	11
KK5260-18	5260	1200-1800	55.0	2.05	6000	1.30	0.080	31-40	0.005	0.0015	125	110	11
UP to 2200V
KK1170-22	1170	1600-2200	12	2.54	2000	1.45	0.430	31-40	0.020	0.0050	125	24	3
KK1170-22	1170	1600-2200	12	2.54	2000	1.45	0.430	41-50	0.020	0.0050	125	24	3
KK1400-22	1400	1600-2200	15	2.86	3000	1.40	0.400	31-40	0.018	0.0045	125	30	4
KK1400-22	1400	1600-2200	15	2.86	3000	1.40	0.400	41-50	0.018	0.0045	125	30	4
KK1660-22	1660	1600-2200	19	2.61	3000	1.41	0.320	31-40	0.016	0.0040	125	35	5
KK1660-22	1660	1600-2200	19	2.61	3000	1.41	0.320	41-50	0.016	0.0040	125	35	5
KK1990-22	1990	1600-2200	21	2.65	3000	1.43	0.260	31-45	0.013	0.0035	125	45	6
KK1990-22	1990	1600-2200	21	2.65	3000	1.43	0.260	45-55	0.013	0.0035	125	45	6
KK2170-22	2170	1600-2200	25	2.56	3000	1.47	0.220	41-50	0.012	0.0035	125	50	7
KK2170-22	2170	1600-2200	25	2.56	3000	1.47	0.220	51-60	0.012	0.0035	125	50	7
KK2870-22	2870	1600-2200	30	2.48	4000	1.43	0.160	41-50	0.010	0.0030	125	56	8
KK2870-22	2870	1600-2200	30	2.48	4000	1.43	0.160	51-60	0.010	0.0030	125	56	8
KK3260-22	3260	1600-2200	36	2.30	4000	1.40	0.130	41-50	0.008	0.0025	125	75	9
KK3260-22	3260	1600-2200	36	2.30	4000	1.40	0.130	51-60	0.008	0.0025	125	75	9
KK3900-22	3900	1600-2200	43	2.38	5000	1.38	0.120	45-55	0.007	0.0020	125	90	10
KK3900-22	3900	1600-2200	43	2.38	5000	1.38	0.120	56-70	0.007	0.0020	125	90	10
KK4810-22	4810	1600-2200	51	2.35	6000	1.36	0.100	45-55	0.005	0.0015	125	110	11
KK4810-22	4810	1600-2200	51	2.35	6000	1.36	0.100	56-70	0.005	0.0015	125	110	11
UP to 2600V
KK1100-26	1100	2000-2600	12.0	2.79	2000	1.50	0.520	35-45	0.020	0.0050	125	24	3
KK1100-26	1100	2000-2600	12.0	2.79	2000	1.50	0.520	46-55	0.020	0.0050	125	24	3
KK1320-26	1320	2000-2600	15.0	2.53	2000	1.46	0.420	35-45	0.018	0.0045	125	30	4
KK1320-26	1320	2000-2600	15.0	2.53	2000	1.46	0.420	46-55	0.018	0.0045	125	30	4
KK1580-26	1580	2000-2600	18.0	2.78	3000	1.51	0.340	35-45	0.016	0.0040	125	35	5
KK1580-26	1580	2000-2600	18.0	2.78	3000	1.51	0.340	46-55	0.016	0.0040	125	35	5
KK1920-26	1920	2000-2600	21.0	2.78	3000	1.48	0.280	35-50	0.013	0.0035	125	45	6
KK1920-26	1920	2000-2600	21.0	2.78	3000	1.48	0.280	46-60	0.013	0.0035	125	45	6
KK2120-26	2120	2000-2600	22.7	2.60	3000	1.48	0.230	45-55	0.012	0.0035	125	50	7
KK2120-26	2120	2000-2600	22.7	2.60	3000	1.48	0.230	56-65	0.012	0.0035	125	50	7
KK2790-26	2790	2000-2600	31.8	2.64	4000	1.48	0.180	45-55	0.010	0.0030	125	56	8
KK2790-26	2790	2000-2600	31.8	2.64	4000	1.48	0.180	56-65	0.010	0.0030	125	56	8
KK3180-26	3180	2000-2600	36.0	2.46	4000	1.47	0.145	50-65	0.008	0.0025	125	75	9
KK3180-26	3180	2000-2600	36.0	2.46	4000	1.47	0.145	61-70	0.008	0.0025	125	75	9
KK3800-26	3800	2000-2600	44.0	2.58	5000	1.45	0.140	50-60	0.007	0.0020	125	90	10
KK3800-26	3800	2000-2600	44.0	2.58	5000	1.45	0.140	61-70	0.007	0.0020	125	90	10
KK4680-26	4680	2000-2600	56.0	2.54	6000	1.46	0.110	50-60	0.005	0.0015	125	110	11
KK4680-26	4680	2000-2600	56.0	2.54	6000	1.46	0.110	61-70	0.005	0.0015	125	110	11
UP to 3000V
KK2050-30	2050	2400-3000	22.0	2.89	4000	1.51	0.250	45-55	0.012	0.0035	125	50	7
KK2050-30	2050	2400-3000	22.0	2.89	4000	1.51	0.250	56-75	0.012	0.0035	125	50	7
KK2650-30	2650	2400-3000	30.0	2.67	4000	1.52	0.200	45-55	0.010	0.0030	125	56	8
KK2650-30	2650	2400-3000	30.0	2.67	4000	1.52	0.200	56-75	0.010	0.0030	125	56	8
KK3180-30	3180	2400-3000	35.0	2.69	5000	1.51	0.165	55-65	0.008	0.0025	125	75	9
KK3180-30	3180	2400-3000	35.0	2.69	5000	1.51	0.165	65-75	0.008	0.0025	125	75	9
KK3670-30	3670	2400-3000	41.0	2.60	5000	1.51	0.150	55-65	0.007	0.0020	125	90	10
KK3670-30	3670	2400-3000	41.0	2.60	5000	1.51	0.150	66-75	0.007	0.0020	125	90	10
KK4580-30	4580	2400-3000	50.0	2.58	6000	1.52	0.120	50-65	0.005	0.0015	125	110	11
9KK4580-30	4580	2400-3000	50.0	2.58	6000	1.52	0.120	66-80	0.005	0.0015	125	110	11
UP to 3600V
KK1380-36	1380	2800-3600	15.0	2.32	1200	1.56	0.380	51-60	0.016	0.0040	125	35	5
KK1380-36	1380	2800-3600	15.0	2.32	1200	1.56	0.380	61-70	0.016	0.0040	125	35	5
KK1900-36	1900	2800-3600	22.0	2.23	1500	1.53	0.270	51-60	0.012	0.0035	125	50	7
KK1900-36	1900	2800-3600	22.0	2.23	1500	1.53	0.270	61-80	0.012	0.0035	125	50	7
KK2330-36	2330	2800-3600	28.0	2.20	1800	1.52	0.220	51-60	0.010	0.0030	125	56	8
KK2330-36	2330	2800-3600	28.0	2.20	1800	1.52	0.220	61-80	0.010	0.0030	125	56	8
KK3440-36	3440	2800-3600	38.5	2.78	2000	1.51	0.170	61-80	0.007	0.0020	125	90	10
KK3440-36	3440	2800-3600	38.5	2.78	2000	1.51	0.170	81-100	0.007	0.0020	125	90	10
KK4380-36	4380	2800-3600	49.0	2.93	3000	1.53	0.140	61-80	0.005	0.0015	125	110	11
KK4380-36	4380	2800-3600	49.0	2.93	3000	1.53	0.140	81-100	0.005	0.0015	125	110	11
UP to 4000V
KK2250-40	2250	3400-4000	25.0	2.30	1800	1.55	0.250	60-70	0.010	0.0030	125	56	8
KK2250-40	2250	3400-4000	25.0	2.30	1800	1.55	0.250	71-90	0.010	0.0030	125	56	8
KK3340-40	3340	3400-4000	35.0	2.69	2000	1.56	0.180	60-80	0.007	0.0020	125	90	10
KK3340-40	3340	3400-4000	35.0	2.69	2000	1.56	0.180	81-120	0.007	0.0020	125	90	10
KK4250-40	4250	3400-4000	44.0	2.83	3000	1.54	0.160	60-80	0.005	0.0015	125	110	11
KK4250-40	4250	3400-4000	44.0	2.83	3000	1.54	0.160	81-120	0.005	0.0015	125	110	11

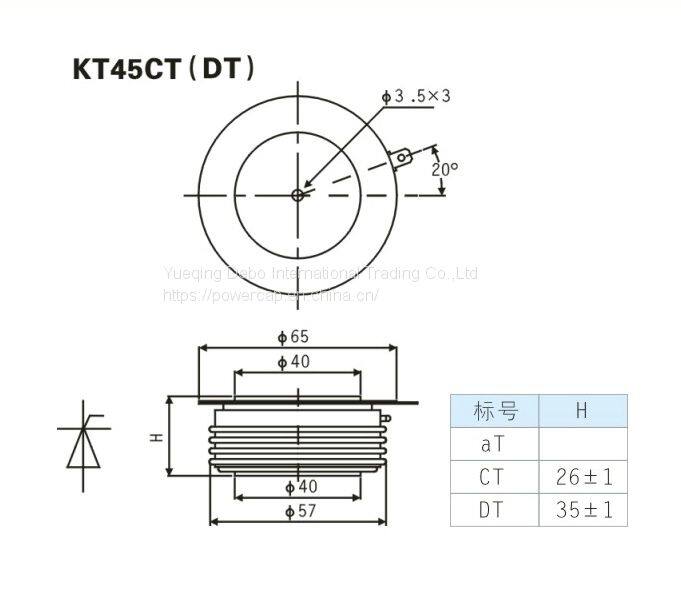

demension :
