8.2kv 525kvar 50hz Capacitor Bank for power system

Product Usage:
It is suitable for parallel connection in industrial frequency alternating current system, which is used to improve power factor of the power grid, improve voltage quality and reduce line loss.

Product parameters:
1. Voltage level: 1 ~ 24kV
2. Capacity level: 100 ~ 800kvar
3. Capacitance deviation: -3% ~ +5%
4. Dielectric loss tangent value: ≤0.03%
5. Protection methods: internal fuse or no fuse

Executive standard:
GB/T 11024.1-2010 "Shunt capacitors
for AC power systems with rated voltage
of 1kV or more Part 1: General provisions"
GB/T 11024.2-2001 "Shunt capacitors for AC power systems with rated voltage of 1kV or more Part 2: Durability test"
GB/Z 11024.3-2001 "Shunt capacitors for ac power systems with rated voltage of 1kV or more Part 3: Protection of shunt capacitors and shunt capacitor banks"
GB/T 11024.4-2001 "Shunt capacitors for ac power systems with rated voltage
of 1kV or more Part 4: Internal fuses"

Product introduction:
1. The shunt capacitor consists of a core, a fuel tank, and an outlet porcelain casing.
2. The core of the shunt capacitor is composed of a series of components, parallel connection and insulation parts.
3. The tank of the parallel capacitor is welded with high-quality steel plate, and the outlet casing is welded on the box cover.
4. The shunt capacitor can be designed as an internal fuse or no fuse structure.

Use environment:
1. The altitude is less than 2000m
2. Ambient temperature: -40 to 45°C
3. Installation site: indoor or outdoor
4. There is no conductive or explosive dust, no harmful gas and steam, and no
severe mechanical vibration in the installation and operation area.

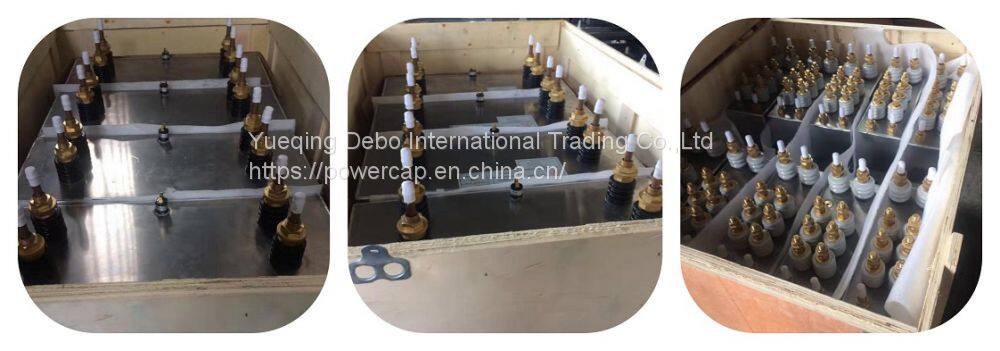

PACKAGE:

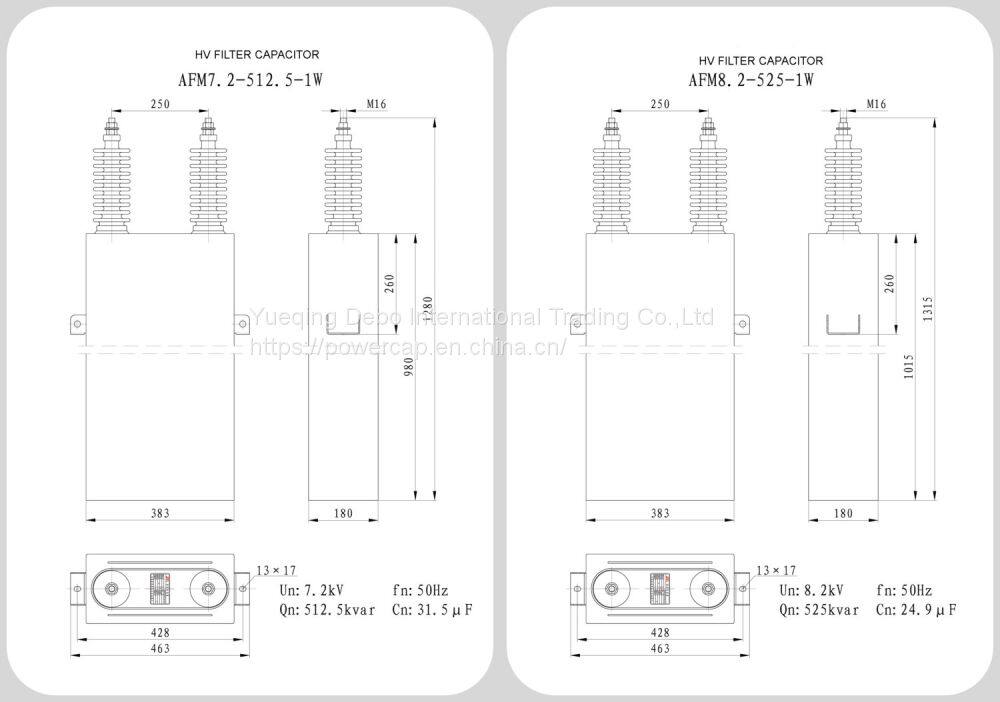

Drawing :
