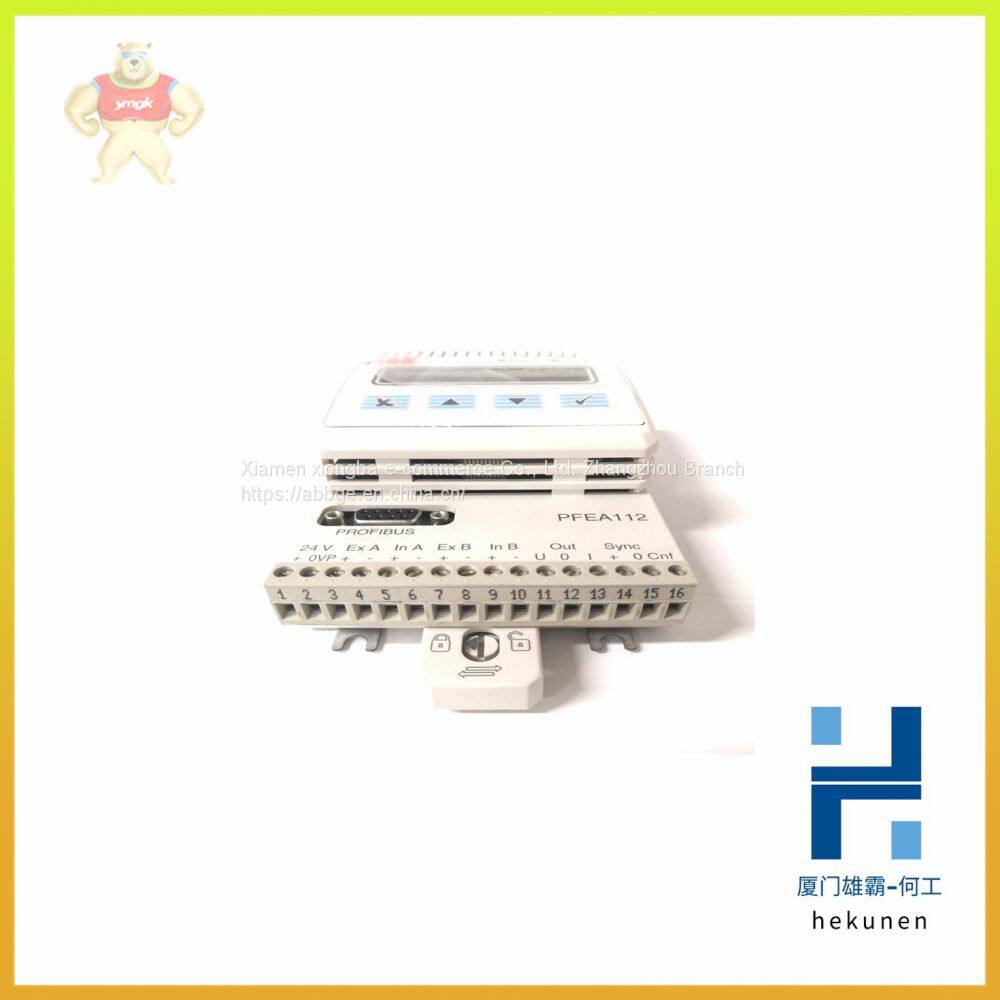

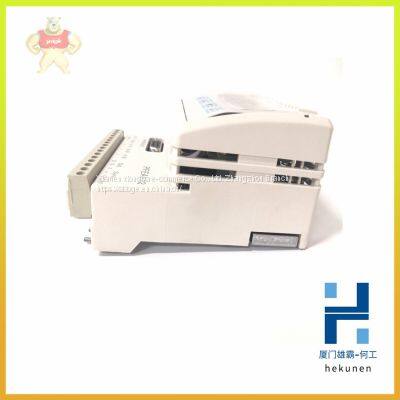

PFEA112-65 3BSE050091R65 ABB Tension Control System Module (in Stock)

PFEA112-65 3BSE050091R65 ABB Tension control system module (in stock)

PFEA112-65 3BSE050091R65 ABB Tension control system module (in stock)

Our Email: 2235954483@qq.com

contact number:13313705507

contacts：HE

The data recorded during a fault sequence is called a fault record (FR). The slave

stores the five latest fault records. When a sixth record is stored, the oldest record is

deleted.

To read a fault record:

1. Write a preset single register command (function 06) to HR601 using a selection

code as data value.

2. Read the selected fault record (function 04) from HR601, register count 28.

Selection code 1: the master reads the oldest unread record

Status register 3 (HR403) informs whether there are unread fault records (see

Fig. 5.1.15.1.-2). If there is one or several unread fault records, the master can read

the contents using selection code 1.

The fault record contains a sequence number which makes it possible for the master

to determine whether one or several unread fault records have been deleted due to

overflow. The master compares the sequence number to that of the previously read

fault record.

The slave keeps track of which fault record is currently the oldest unread. The

master can continue reading fault records for as long as Status register 3 indicates

that there are unread records.

* Special case 1: If there are no unread fault records, the contents of the last read

record is returned. If the buffer is empty, however, the registers contain only

zeros. This is the only time when sequence number zero appears.

* Special case 2: If the master tries to read the next unread fault record without

entering selection code 1 again, the contents of the last read record will be

returned
