10-15 Tph Aluvial Deposit Gold Rotary Trommel Washing Screen Machine With Gold Sluice Box and Gold Centrifugal
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Small Alluvial River Sand Mine Separator Wash Mining Portable Gold Washing Processing Machine for Placer Gold Ore Diamond
-
Small Heavy Duty Rock Trommel Screen Gold Recovery High Trommel Drum Screen
-
Popular in Sudan High Recovery Gold Centrifuge Line Gold Centrifugal Machine
-
Rotary Type Biomass Wood Chips Trommel Screen Quartz Sand Garbage Trommel Screen for Sale
-
Gold Gravity Mineral Separator Mini Gold Concentration Classifier Shaking Table Coal Shaking The Table Meaning
-
Hot Sale Widely Used Gravity Separator Machine Mineral Separator Spiral Chute Conveyor For Iron Ore Seperation
Product Description
Product Description
10-15 tph Aluvial deposit Gold Rotary trommel washing screen machine with Gold sluice box and Gold Centrifugal

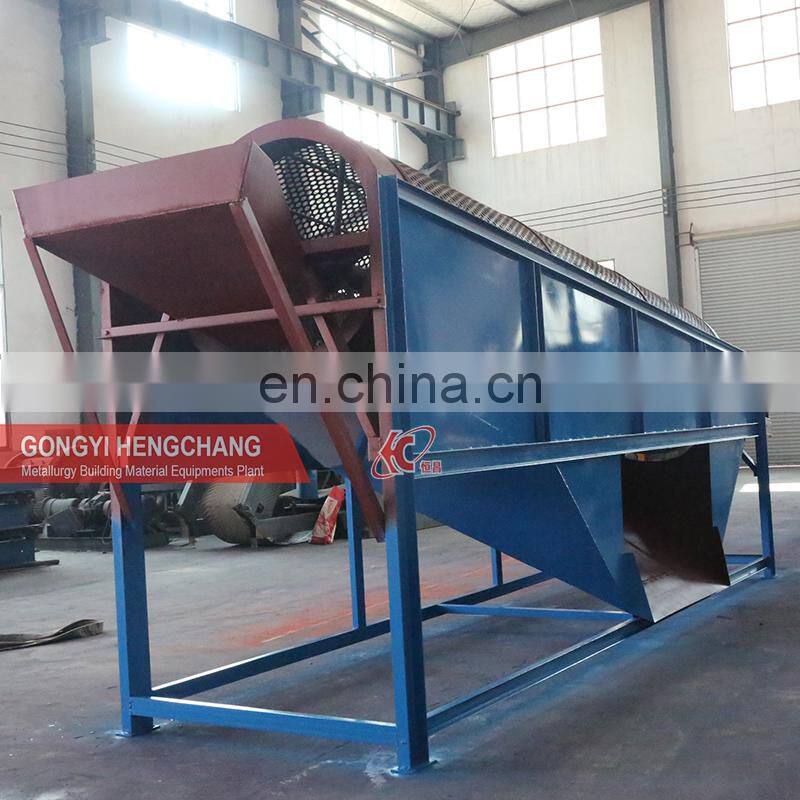

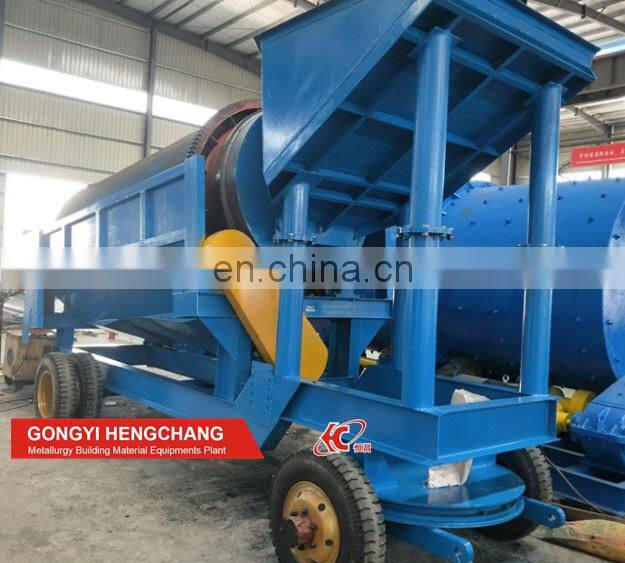

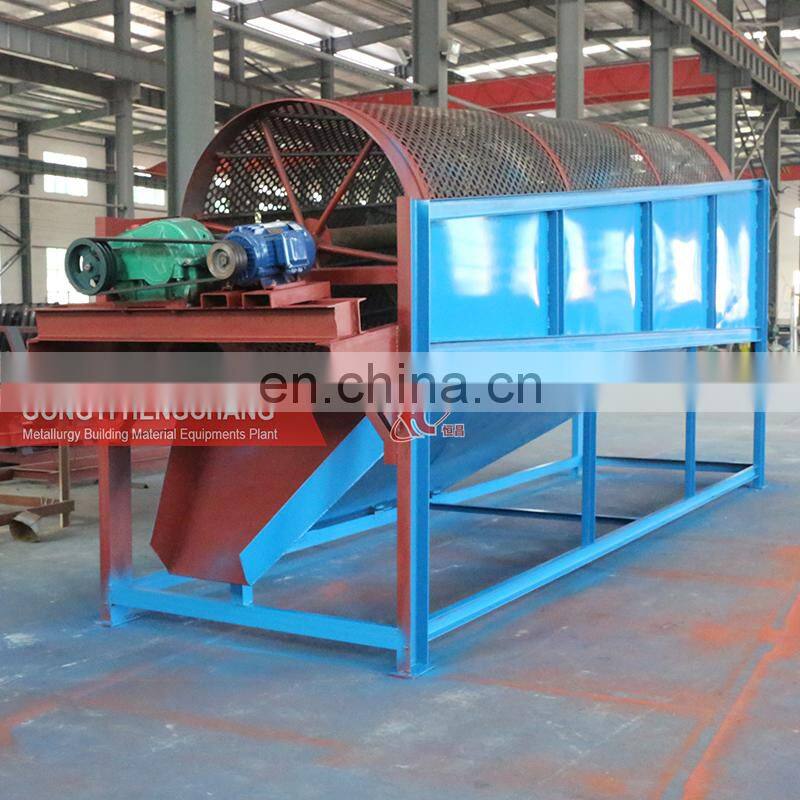

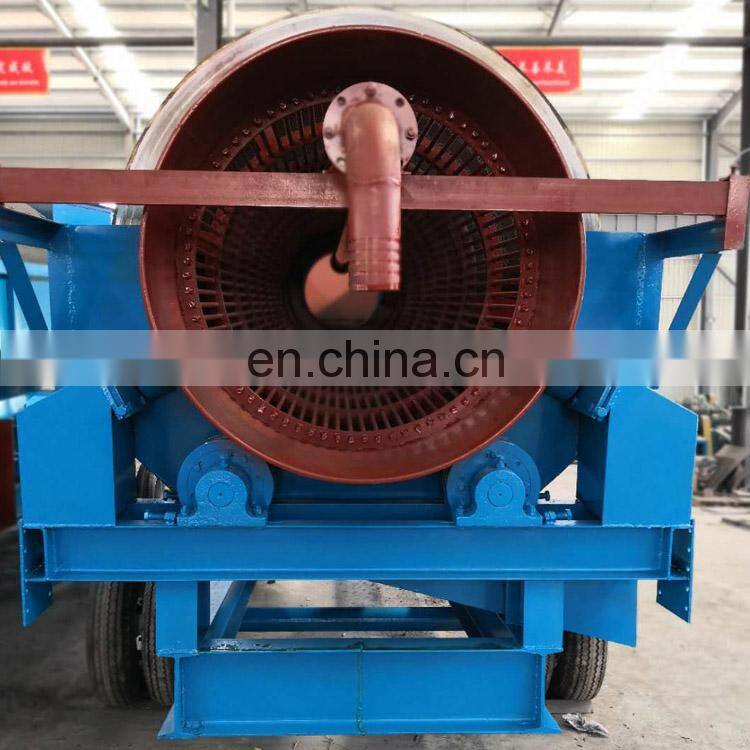

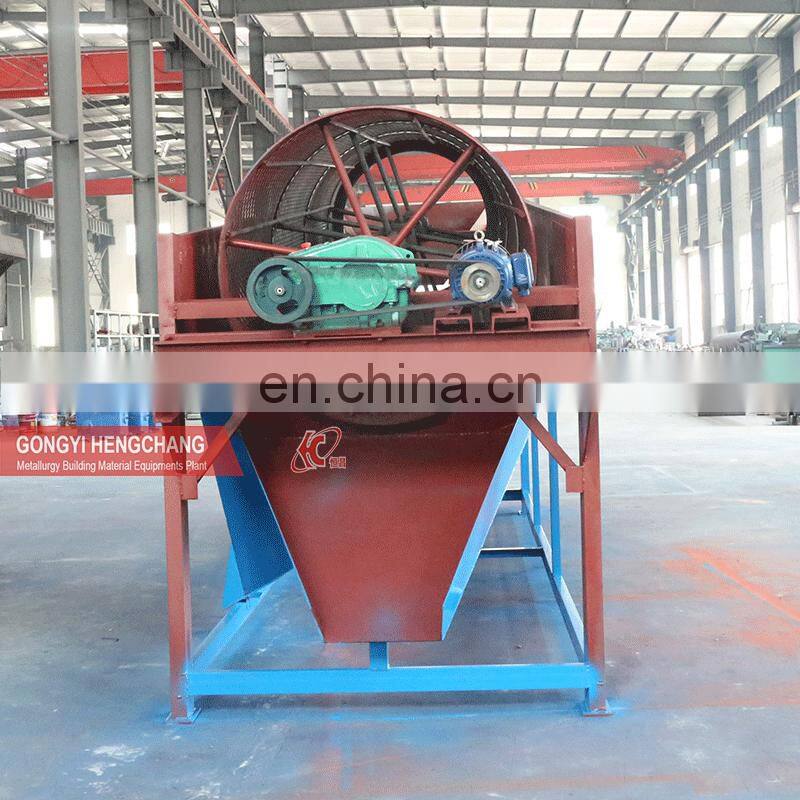

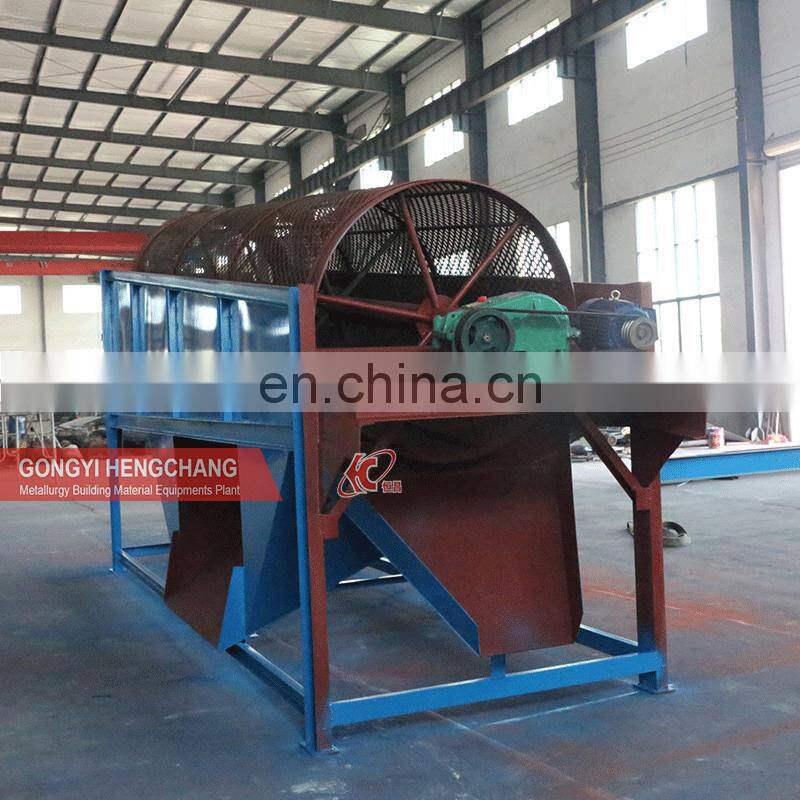

Introduction For Trommel Screen

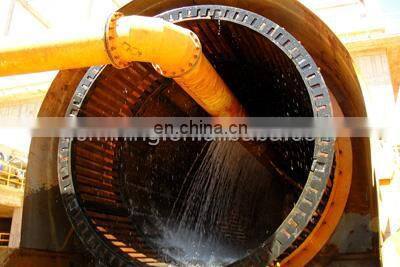

A trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries.
[1] It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.
[2] Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum
A trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries.
[1] It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.
[2] Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum
Name | River Sand Gold Trommel Screen Machine for Gold Mining |
Capacity | Customized ( the trommel diameter and length can be customized) |
Your request | Click here to tell us your capacity and get your solution |
Hopper size | According to your Excavator or forklift |
Diesel engine | Avalibale, or you can also buy generator. |
Water pump | Avalibale |
Main Features For Trommel Screen
1. Anti-jam design.

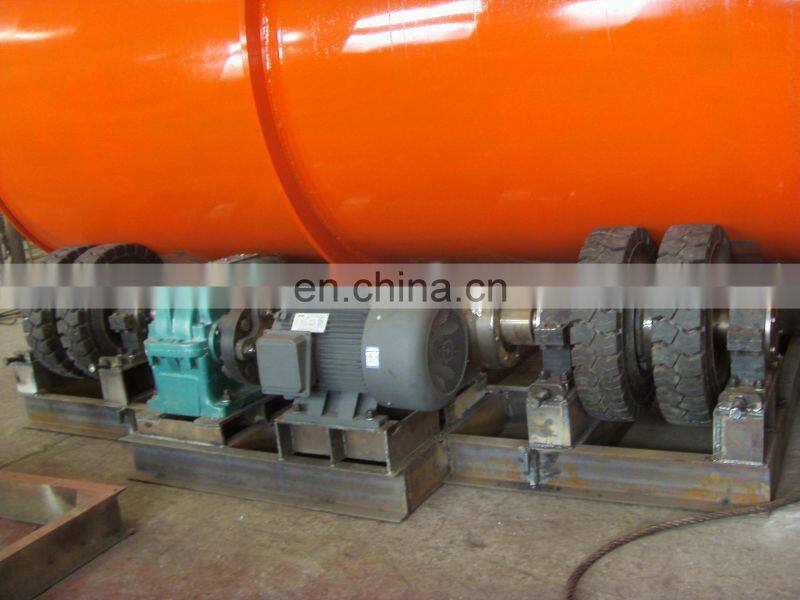

2. Gear-drive mechanism.
3. Customized sieve size design.

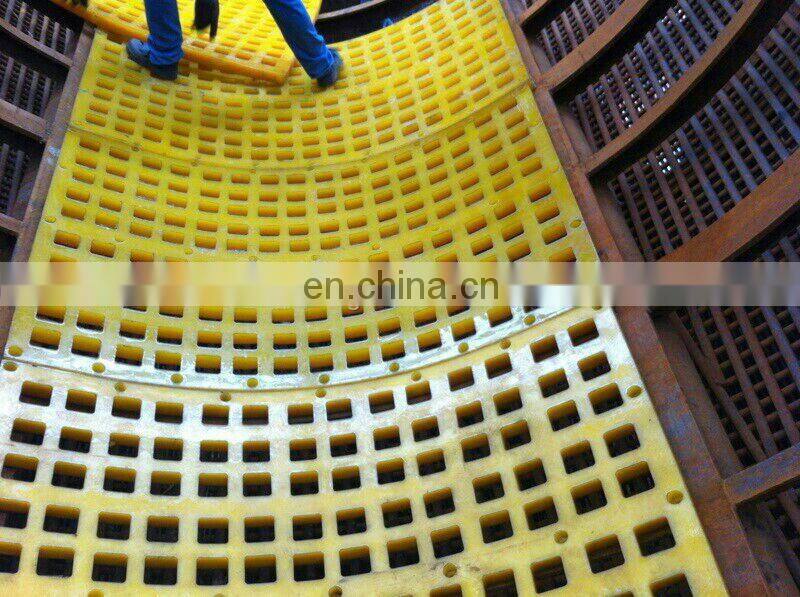

4. Wear-resisting&repleacable sieve.
5. Double sieve ideal material classification.
6. Powerful motor with low power consumption.
7. High dealing capacity&fluent material washing.
2. Gear-drive mechanism.
3. Customized sieve size design.
4. Wear-resisting&repleacable sieve.
5. Double sieve ideal material classification.
6. Powerful motor with low power consumption.
7. High dealing capacity&fluent material washing.

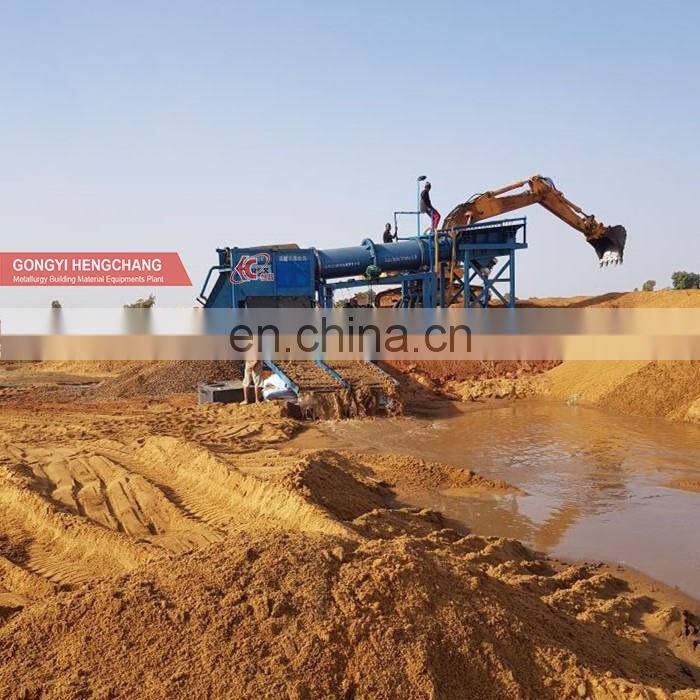

Application For Trommel Screen

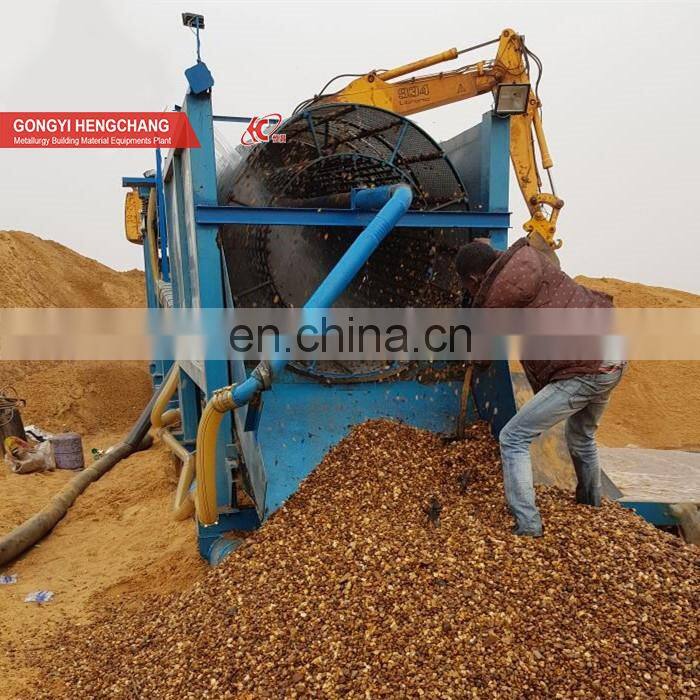

1.Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2.Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3.Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
1.Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2.Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3.Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
Technical Parameter For Trommel Screen
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
YGTS1020 | 10-30 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
YGTS1225 | 30-50 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
YGTS1545 | 50-120 | 11 | 1500 | 4500 | 0-100 | ≤400 | 8160×2>300×2500 |
YGTS1548 | 80-150 | 11 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
YGTS1848 | 100-200 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
YGTS2060 | 200-350 | 30 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
Company Information:About HENGCHANG
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters, including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,
powder grinding mills, mineral processing equipment and their spare parts. Every year,
powder grinding mills, mineral processing equipment and their spare parts. Every year,
Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model; 2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..

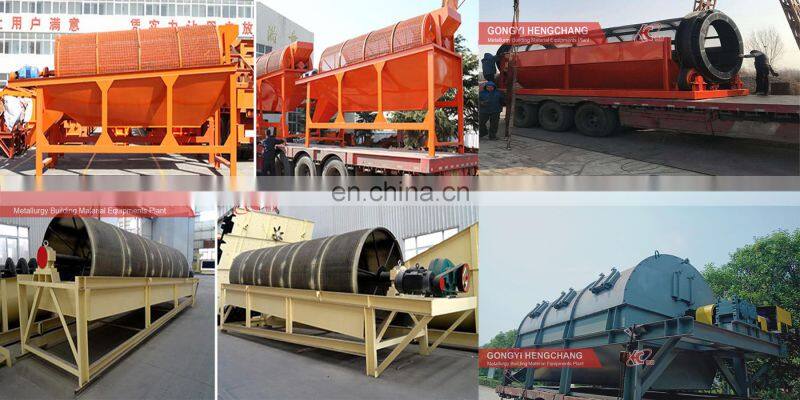

Our Workshop
1.We are factory and be able to give you the lowest price than market one;
2.Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems; 4. Provide free process design.
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
