Product Description
Product Description
Best Selling Large Capacity Gravity Spiral Chute Separator With Good Price
I. Introduction of Large Capacity Gravity Spiral Chute Separator
Spiral chute uses gravity to separate particles of different densities. It is used globally in the mineral processing industry, consists of an open trough that twists downward in helix configuration about a central axis.
It is used to separate the iron, tin, wolfrmite, tantalum, niobium, gold ore of the size between 0.3 and 0.02mm, and the other metals and nonmetal minerals with different gravity property .

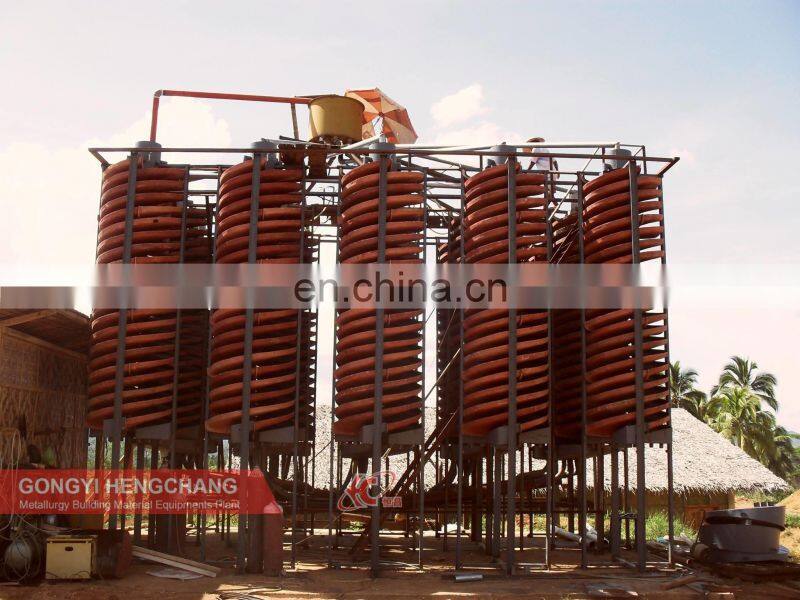

gravity spiral chute /spiral chute separator /spiral chute capacity

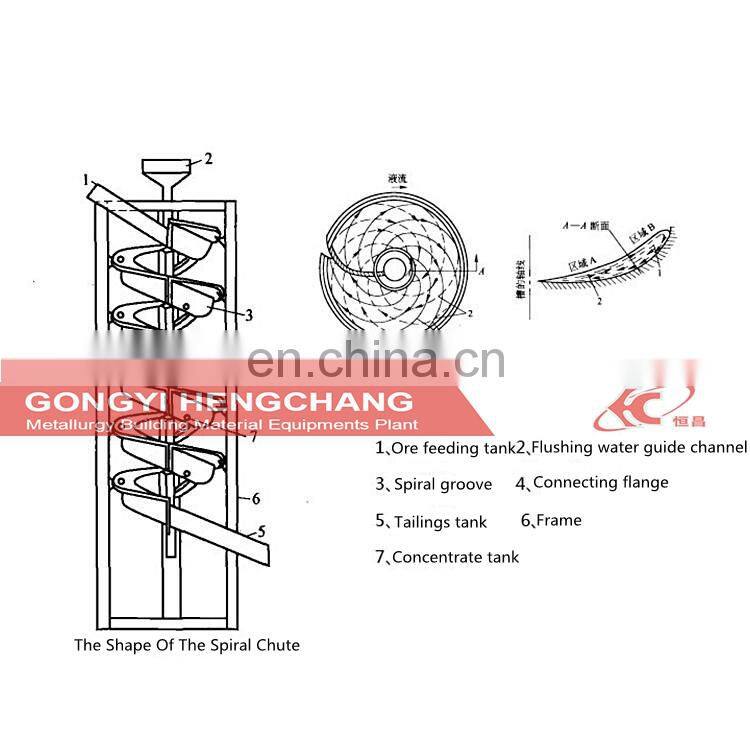

II.Working Principle of Large Capacity Gravity Spiral Chute Separator
When working, particles are fed to the top of the spiral chute and are separated radially on the basis of density and size as the slurry gravitates downward. In order to have a good separation, there should be a difference in specific gravity of at least 1.0.
Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.
III.Main Advantages of Large Capacity Gravity Spiral Chute Separator
1. One main benefit of spiral concentrators is they have no moving parts.
The feed range, in percent solids, to a spiral ranges from 20% solids up to 40% solids.
2. It is a high efficiency gravity concentrator of the international advanced standard.
3. Simple structure, steady working condition, reliable operation, easy maintenance, small floor area, high capacity.IV.Specification of Large Capacity Gravity Spiral Chute Separator
Model | LL-1200 | LL-900 | LL-600 |
Diameter(mm) | 1200 | 900 | 600 |
Pitch(mm) | 540/720/900 | 405/540/675 | 270/360450 |
Pitch Ratio | 0.45/0.6/0.75 | 0.45/0.6/0.75 | 0.45/0.6/0.75 |
Slope(°) | 9 | 9 | 9 |
Head | 4 | 4 | 3 |
Input Size(mm) | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 |
Input Thickness(%) | 25-55 | 25-55 | 25-55 |
Capacity(t/h) | 4-6 | 2-3 | 0.8-12 |
Dimension(mm) | 1360×1360×5230 | 1100×1100×4000 | 700×700×2600 |
Weight(kg) | 600 | 400 | 150 |

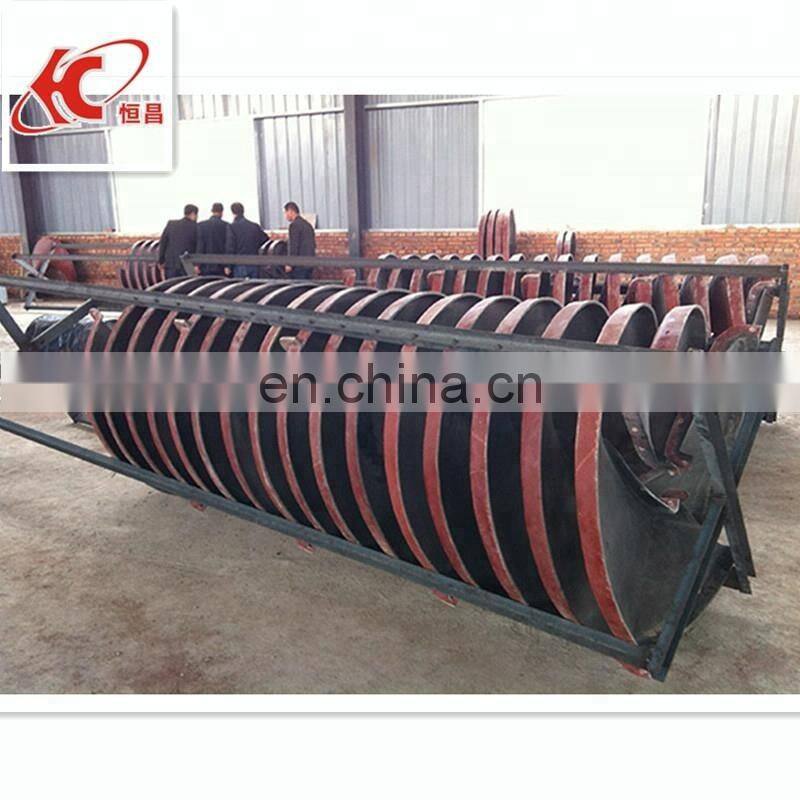

gravity spiral chute /spiral chute separator /spiral chute capacity
Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.

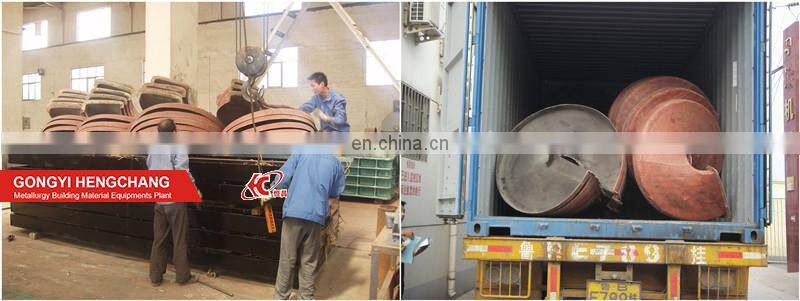

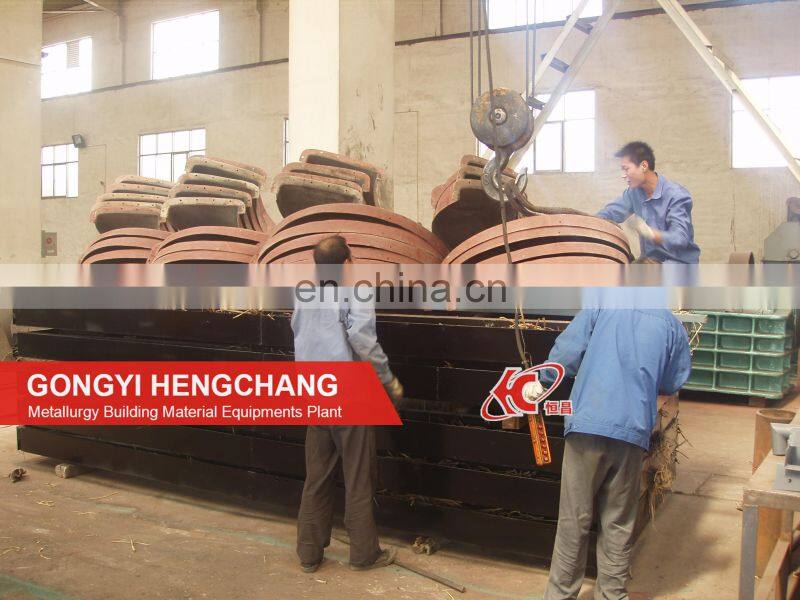

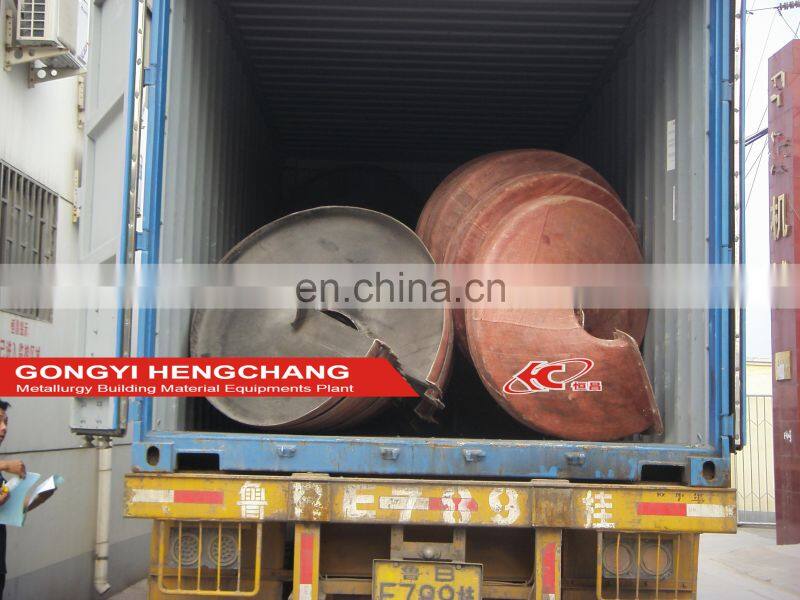

Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.

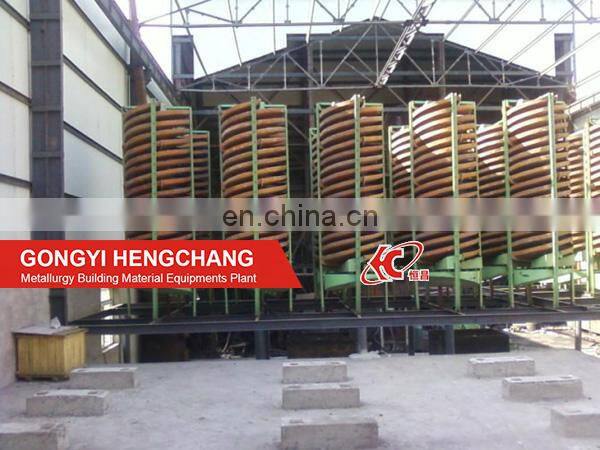

gravity spiral chute / spiral chute separator / spiral chute capacity
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...

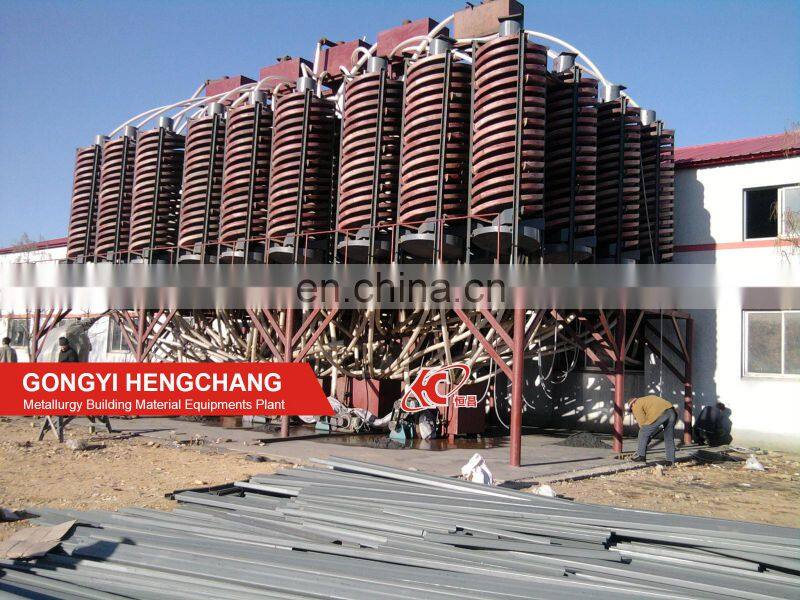

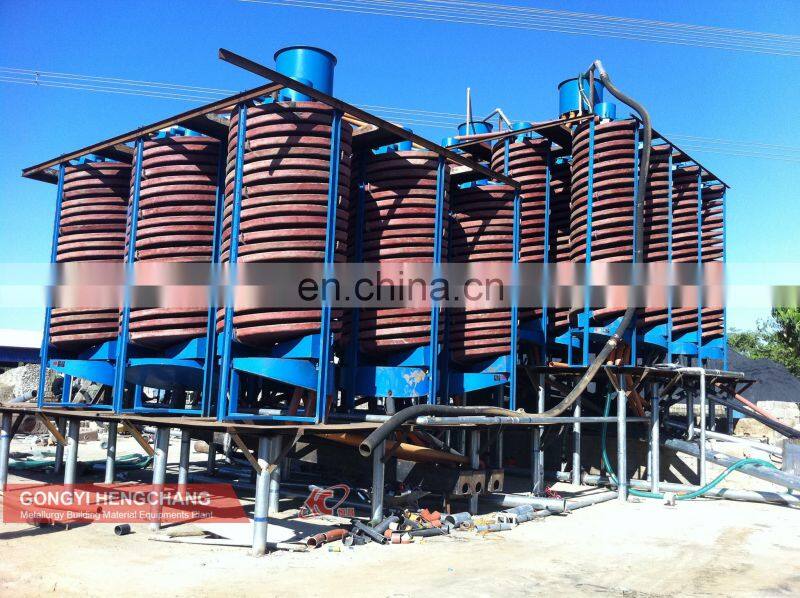

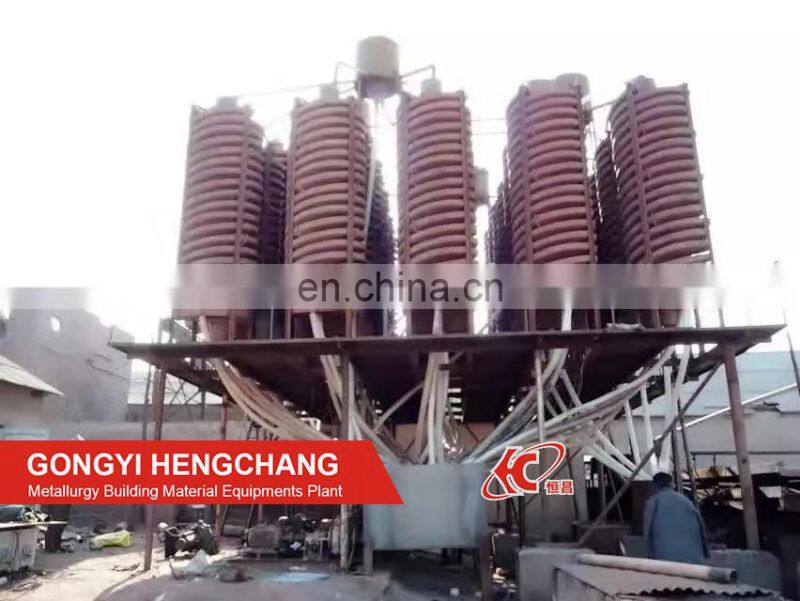

Customer case
gravity spiral chute /spiral chute separator /spiral chute capacity
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
