Home > Products > Ore Beneficiation Equipements > Energy-Saving Wet Dry Magnetic Separator for Magnetic Mineral Also for Gold Iron Removal Separator
Energy-Saving Wet Dry Magnetic Separator for Magnetic Mineral Also for Gold Iron Removal Separator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Intensity Iron Ore Eriez Magnetic Separator Price for Limenite Ore
-
Spiral Gold Sand Washing Machine Gravel Sand Washer Machine Price Gravel Pebble Washing
-
Hot Sale Jig Grinding Gravity Mineral Concentrating Equipment In Mining Separator Gold Jig Machine For Mining
-
10-15 Tph Aluvial Deposit Gold Rotary Trommel Washing Screen Machine With Gold Sluice Box and Gold Centrifugal
-
Small Alluvial River Sand Mine Separator Wash Mining Portable Gold Washing Processing Machine for Placer Gold Ore Diamond
-
Small Heavy Duty Rock Trommel Screen Gold Recovery High Trommel Drum Screen
Product Description

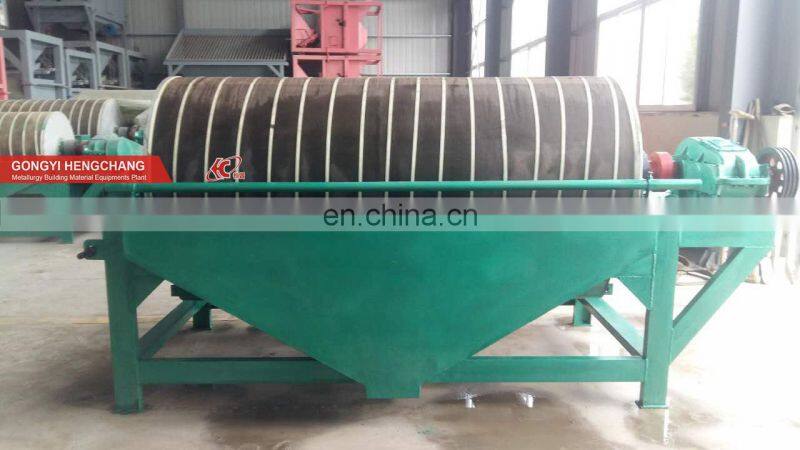

Iron Ore Remover Machine Wet Type Drum Magnetic Separator for Sale
The Introduction of Iron Ore Remover Machine Wet Type Drum Magnetic Separator
Magnetic separator for manganese ore are devices that are primarily used for eliminating tramp iron from ores and for removing contaminating materials that can damage equipment. There are mainly two kinds of magnetic separators produced by our factory. They are wet magnetic separator, magnetic drum separator and magnetic separator machine. In concentration processes, the magnetic separator for manganese ore machine is commonly used for sorting various types of metals. Similarly, in case of weak magnetic
minerals such as hematite, limonite and garnet, they can be separated from the non-magnetic substances by the use of high-intensity separators.
Magnetic separator for manganese ore are devices that are primarily used for eliminating tramp iron from ores and for removing contaminating materials that can damage equipment. There are mainly two kinds of magnetic separators produced by our factory. They are wet magnetic separator, magnetic drum separator and magnetic separator machine. In concentration processes, the magnetic separator for manganese ore machine is commonly used for sorting various types of metals. Similarly, in case of weak magnetic
minerals such as hematite, limonite and garnet, they can be separated from the non-magnetic substances by the use of high-intensity separators.
(wet magnetic separator / wet magnetic separator for sale / wet drum magnetic separator)
Working Principle of Iron Ore Remover Machine Wet Type Drum Magnetic Separator
The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder.Magnetic separator for manganese ore is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal,non-metal ore and building material.
The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder.Magnetic separator for manganese ore is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal,non-metal ore and building material.
Application of Iron Ore Remover Machine Wet Type Drum Magnetic Separator
Process Chart of Iron Ore Remover Machine Wet Type Drum Magnetic Separator
SeparatorShort magnetic circuit; little magnetic flux leakage; high magnetic intensity; Low energy consumption; fine beneficiating results;simple structure and easy maintenance.
Magnetic Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite
smaller than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction industry, etc.
We canprovide magnetic separators of forward flow, semi counter flow and counter flow types according to customers' request.
Magnetic Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite
smaller than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction industry, etc.
We canprovide magnetic separators of forward flow, semi counter flow and counter flow types according to customers' request.
(wet magnetic separator / wet magnetic separator for sale / wet drum magnetic separator)
Company Information:About HENGCHANG
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Product Technologies
Technical Parameter of Iron Ore Remover Machine Wet Type Drum Magnetic Separator
Model | Magnetic field intensity (oe) | Capacity (t/h) | Power (kw) | Weight (kg) |
CTB600×900 | 1450 | 8.0-15 | 1.1 | 910 |
CTB600×1800 | 1500 | 15-25 | 2.2 | 1340 |
CTB750×1800 | 1550 | 30-45 | 3 | 2050 |
CTB900×1800 | 1650 | 35-60 | 4 | 3000 |
CTB1050×2400 | 1650 | 60-95 | 5.5 | 5020 |
CTB1200×3000 | 1650 | 80-150 | 7.5 | 7800 |
CTB1500×3000 | 1650 | 120-200 | 11 | 9600 |
(wet magnetic separator / wet magnetic separator for sale / wet drum magnetic separator)
Customer Visit & Our Service
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for
clients;
clients;
2.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients: 1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
3.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
Our Workshop
We are a real manufacturer, not a trading company. We have the best after-sales service. The complete set of markene production is produced by ourselves, without the need to buy different machine connection product lines from different manufacturers.
Packing and delivery
Packaging Details: Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20 working days.
FAQ
Q: Why we believe in Gongyi hengchang company?
A:1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract,
pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
