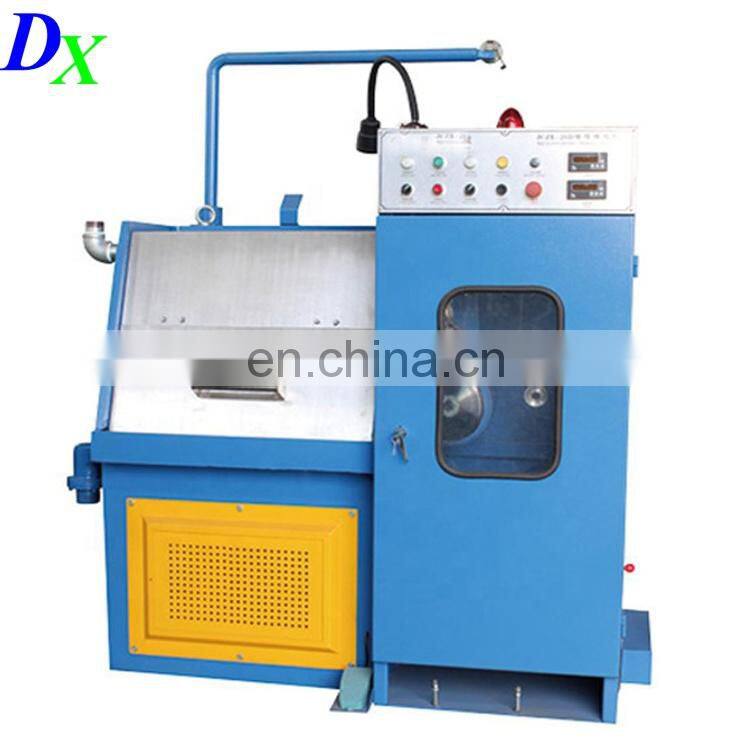

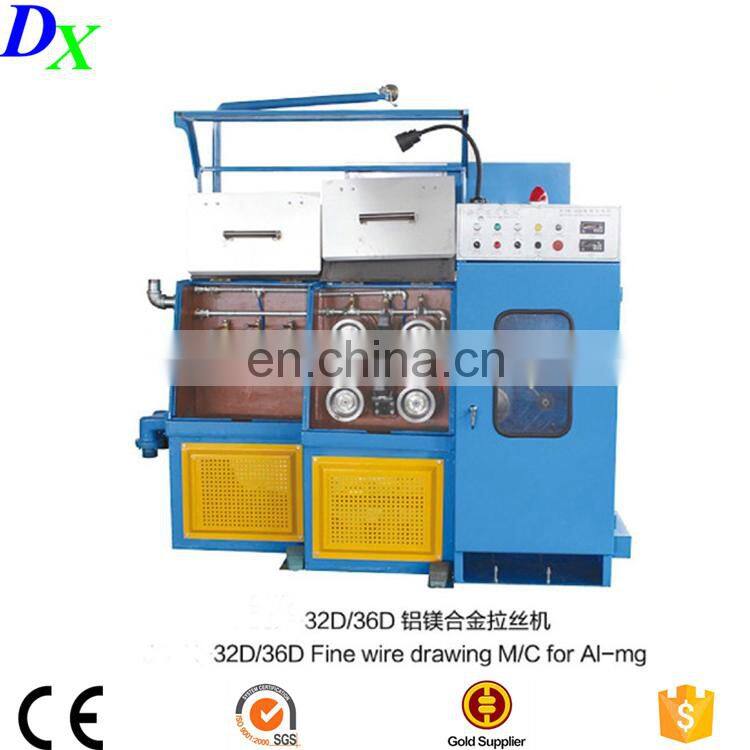

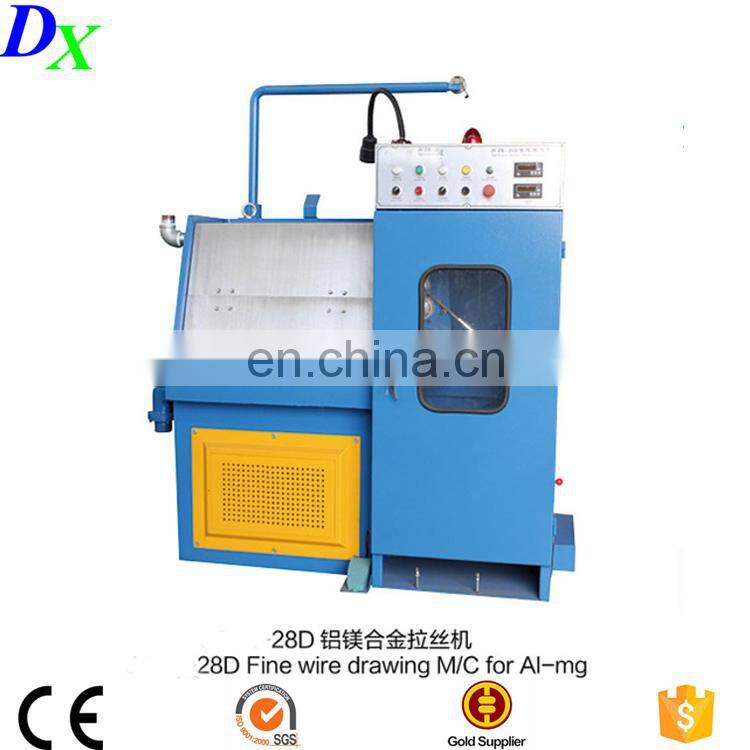

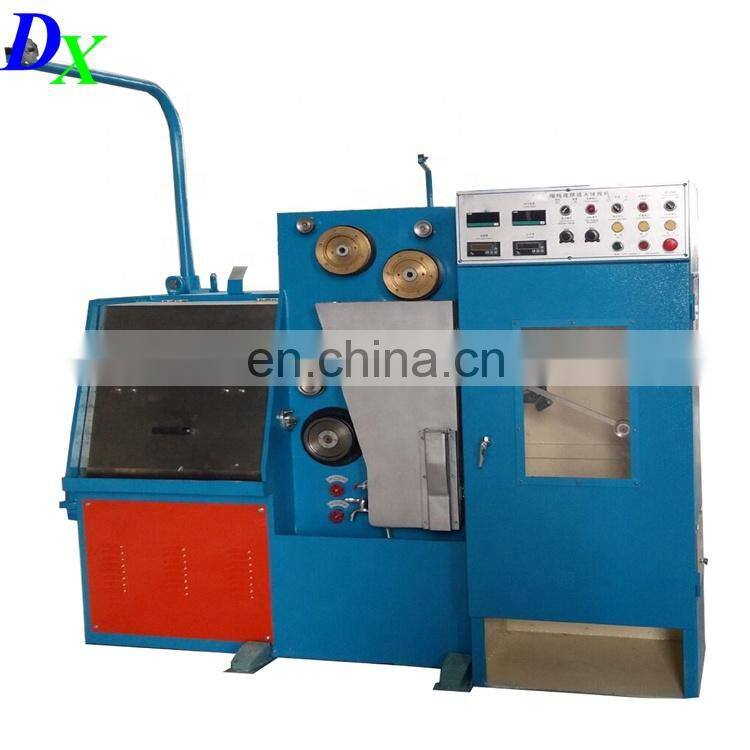

Large/intermediate/fine Aluminum /copper Wire Drawing Machine

Products introducation of large/intermediate/fine aluminum / copper wire drawing:

large/intermediate/fine aluminum / copper wire drawing deep popularity in the market of our customers and has high speed to 60 meter/minute.LTD-1000SP is a copper wire drawing machine and it bull block straight line with online annealer.The  high speed/high efficient equipment with annealing copper wire drawing machine has biggest output  to 1000kg .At the same time,it use PLC computer operating and our products belong to full automatical machine.We have confident in the quality of it and you will be satisfiled with it.

large/intermediate/fine aluminum / copper wire drawing is used for  copper wire from 1.0-1.38mm to 0.08-0.65mm.

Main Features of large/intermediate/fine aluminum / copper wire drawing:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

Advantage of large/intermediate/fine aluminum / copper wire drawing:

1.Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.

2. Machine’s body and other key components and parts are produced by our own factory, quality is reliable

3.High tension durably flat belt gain convenient replacement and low noise in operating.

4.we only use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,

France Schneider electric and Shenzhen Inovance inverter  ,some machine can equip with SIMENCE PLC

5.we have gotten ISO 9001:2008,CE and TUV certificate.

Body structure: enblock casting

Material: HT200 grey cast iron

Advantages:

a. good stability
b. not deform
c. low noise

 Features of large/intermediate/fine aluminum / copper wire drawing:

1.Powered motor
2.High speed
3.Smart programmable control and operation
4.High safety standard
5.Efficient and cost-effective.

6. Unity cast iron frame.

Driven by high precise helical gears;particular oil lubrication mechanism;dual motors drive;

The capstan and die lubrication system is in emulsion spraying with force from inside  of die holders design,in this way ,

the lubrication is more sufficient and it saves space,moreover,it makes operation more convenient;

Annealing contact copper rings,nickel tubes are made from special alloy; it can ensure a longer service life.

The annealer control system  is in zero length preset  voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.

A special machanism is designde to meet requirements of drawing bare copper wires ,tinned wires and silver plated copper wires.

1.nude, plastic film packing high speed copper  wire drawing making machine with annealer.

2.As per customers requirement for fine wire drawing with continuous annealer for electric production

Dongyi DongXing company is professional in making pellet machine, we hold that qualityfirst management idea. Wespecialize in wire drawing machine,

annealing machine,tinning machine, nail making machine and all kindsof accessories. Supply professional service of design and developing, production, sales and

installation and debugging, in every aspect of product implementation of strict quality control, OEM and ODM service as per customers’ request.

We has strong technical force, senior engineers and technicians team, introduce the lastet technology at home and abroad, by doing better research,

to make mechanical machines of good function, structure, process, and usability, favored by domestic and foreign customers. With professional team,

strict management, superior equipment, well received in India, Egypt, Pakistan, Vietnam, Thailand, Uzbekistan etc. With after-sales

service offices in more than 20 provinces and cities, supply efficient, quality and considerate

Q:could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge

Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q: could you do the design for the whole plant ?
A: Yes , we can.
Q: what is the difference with other supplier?
A: what we could offer to other customer is not only the machine itself, also we could offer: factory design,

production process design , QC control and education and assist machine and raw material offering .
Q:How long the guarantee:?
A: one year and charge for repair the whole life.

large/intermediate/fine aluminum/copper wire drawing machine
