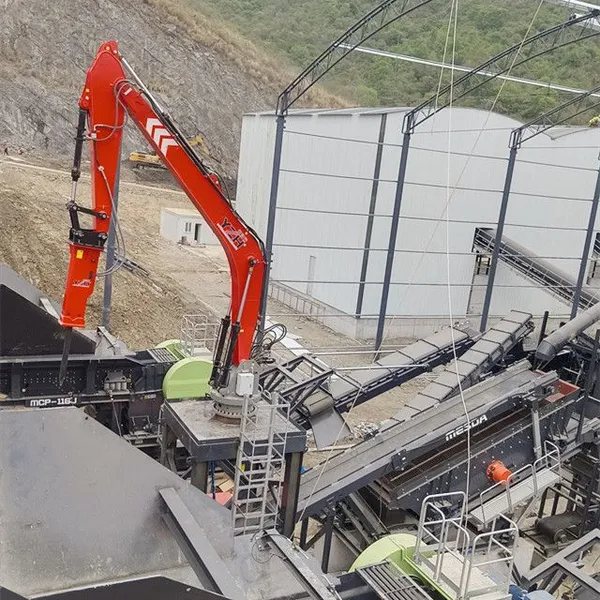

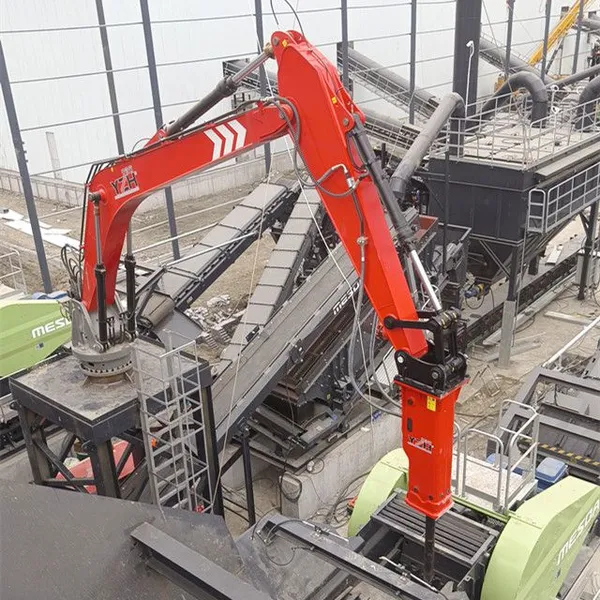

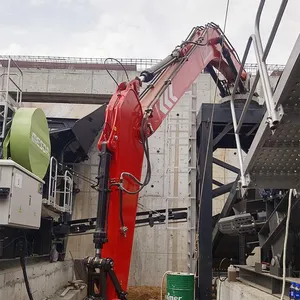

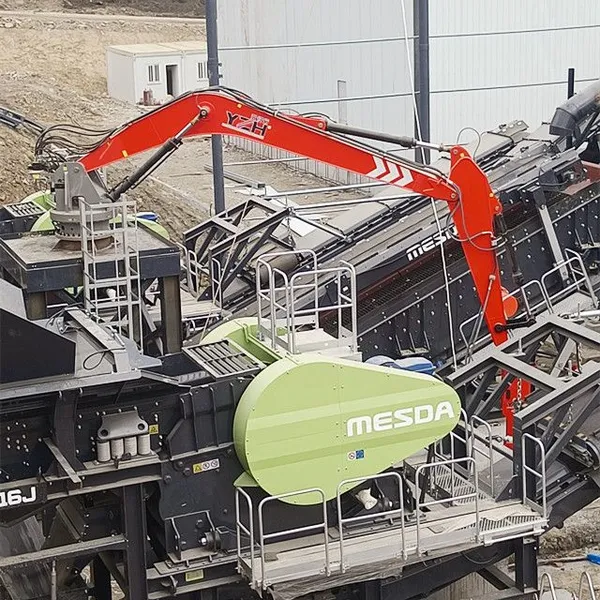

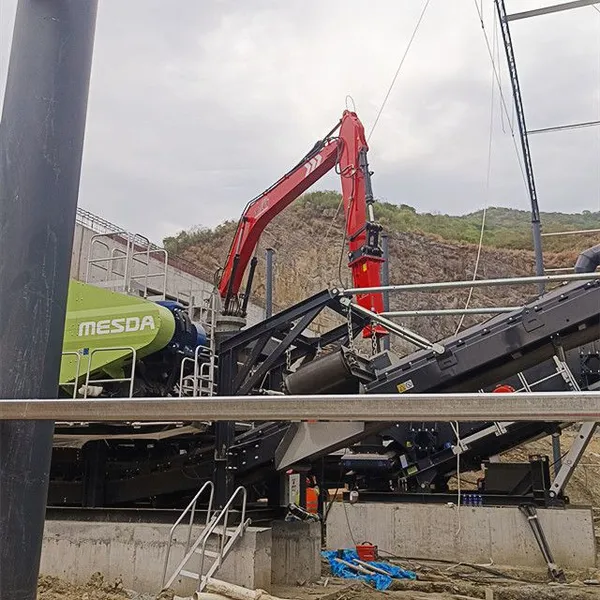

YZH WHC1030 Rockbreaker System
Main parameters of YZH WHC1030Rockbreaker System:
Model No. |
WHC1030 |
|
Boom weight(without hammer) |
KG |
8715 |
Max.Horizontal Working radius |
MM |
12606 |
Max.vertical working radius |
MM |
10256 |
Min.vertical working radius |
MM |
2898 |
Max.Height |
MM |
7200 |
The Features of YZH WHC1030 Rockbreaker System:
Powerful Crushing Capability: Equipped with a high-quality hydraulic breaker delivering strong impact force, effectively breaking rocks and materials of various hardness levels. The robust arm beam structure is constructed from rectangular steel, utilizing large-diameter cylinders and reinforced pins to ensure the mechanical arm possesses formidable crushing power.
Flexible Operational Performance: Swing angles reach up to 170°/360°, offering a wide working range for operations in larger spaces. The rotating mount incorporates high-speed low-altitude gearing and responsive braking systems, enabling rapid, precise, and accurate equipment reactions.
Intelligent Control System: Utilizes flexible control for precise positioning. Features video monitoring + remote control functionality with diverse operation modes, achieving control distances of 10-20km. Equipped with high-protection controllers for multi-parameter integration.
High Adaptability: Compatible with various front-end tools like hydraulic lotus claws and hydraulic cutters for multi-functional operation. Modular design rapidly adapts to diverse customer requirements, enabling long-term operation in harsh environments including corrosion, explosion-proof zones, and high altitudes.
The Benefits of YZH WHC1030 Rockbreaker System:
Energy Efficiency & Environmental Protection: Utilizes electro-hydraulic drive with clean, energy-efficient motor operation. Energy costs reduced by over 60% compared to traditional diesel equipment, with zero emissions meeting environmental standards.
Safety and Reliability: Intelligent control enables remote operation, eliminating worker exposure to hazardous environments and enhancing workplace safety while reducing risks. A high-performance shock absorption system minimizes impact loads on the machine and foundation. New simulation-optimized design ensures rational layout, high safety factors, and uninterrupted operation.
Low Operating Costs: Maintenance expenses are minimal, with failure rates reduced by 85% compared to conventional diesel equipment. It minimizes crusher wear, ensuring healthier operation and extended service life. Additionally, fuel consumption is only one-sixth that of excavators with equivalent power output.
High Production Efficiency: Significantly reduces downtime caused by material jams, enhancing overall production line efficiency. It also boosts the output of primary crushers by up to 20%, increasing production capacity.
The Application of YZH WHC1030 Rockbreaker System:
Shen Dong Coal Customized Robotic Arm: Shen Dong Coal Group's fixed crushing robotic arm employs electro-hydraulic control for intelligent remote operation. Its one-touch extension/retraction functionality enables convenient and safe crushing, supporting Shen Dong Coal's goal of establishing a world-class benchmark in the coal industry.
Multiple Custom Orders from Hongshi Cement Group: Hongshi Cement Group has repeatedly customized Yuanzhengxing fixed excavation robotic arms for crushing operations in cement production. This has enhanced safety, productivity, and profitability in crushing tasks while significantly improving the construction environment under special working conditions.
