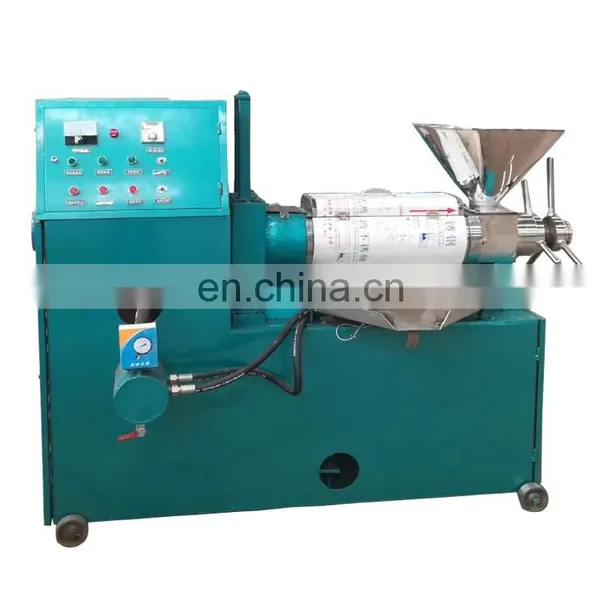

China popular hydraulic screw oil press extraction machine price

1). This screw oil press extraction machine can process sesame seed, rapeseed, peanut, soybean, cottonseed, almond, Tung-oil seed, sunflower seed, tea seed, walnut, caster seed, Perillaseed , Hazelnut,oil palm, oil olive, avocado, pomegranate seed , pistachio nut, neem seed, coconut, about 150 types of oil crops;

6). Parts: Infeed Hopper, Gear Box, Press Cage, Press Bolts, Bar Oil Leakage Cage, Pie Mouth, Rack Body, Oil Cylinder, Vacuum Pump, Electric motors, Voltage Meter,Pressure Meter;

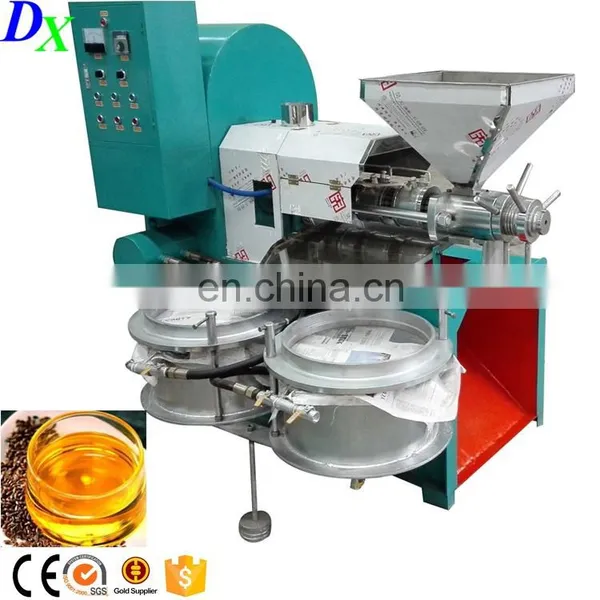

7). This series are equipped with the air-pressure / vacuum filtration system, which make it the press integrated with the filtration, more convenient and automatic;

8). Materials:All our machinery's core parts are all made of high quality 20 CrMnTi alloy steel, processed with the imported equipment, going through the process of the cementite quenching and high frequency quenching.So this screw oil press machines can give the maximum oil yield with the minimum wearing and tearing;

9). We can develop and manufacture the hydraulic oil press machine according to your sample or your design or your any other request , the whole solution for you sincerely!

When the oil press is running, the treated oil enters the squeegee from the hopper. By the squeeze screw rotation of the material embryo continue to push forward, for pressing. As the material embryo in the press of the press chamber is carried out in the state of motion, in the press chamber under the conditions of high pressure, the embryo and the squeeze, the embryo and the press between the chamber produced a great friction resistance, so Can make the embryo between the micro-material friction, resulting in relative movement. On the other hand, since the diameter of the root garden of the screw is gradually thickened, the pitch is gradually reduced, so that when the screw is rotated, the thread is pushed forward and can be turned outward, and is close to the thread The surface of the material also with the rotation of the shaft. So that in the press chamber of each embryo particles are not equal speed, with the direction of movement, but also between the particles there is relative movement. The heat generated by the friction also satisfies the heat necessary for the operation of the oil extraction process, which helps to promote the thermal denaturation of the protein in the embryo, to destroy the colloid, to increase the plasticity, and to reduce the viscosity of the oil. Improve the oil press oil rate, so that the material in the oil squeezed out.

1). easy to operate.

2). Adequate quality.

3). The oil yield could reach 40%-60%.

4). Stainless steel used on the surface to reach the standard of food hygiene.

5). Durable, for 1 year free after-sales service. Include replace the parts costs.

6). A double helix oil press equals two oil press, can obtain double benefit.

7). High quality parts, stable oil pressing effect, saving the maintenance cost.

8). Military industrial manufacturing, quality chrome materials, quality trustworthy.

1). After 50 hours of work should check the lubrication, the gear box above the oil cup shall not be lack of oil, the source through the screw adjustment screw bearings should be drawn from the adjustment screw hole filling butter once, is strictly prohibited dry grinding.

2). The lubrication parts should prevent the intrusion of dust and other impurities, the annual inspection of the oil quality of the gear box once, if found deterioration, should replace all the oil.

3). When the crush is reduced, the cake or oil is not normal, the squeeze should be extracted, check the squeeze, squeeze, a cake, the cake mouth wear, wear parts to be replaced.

4). After each work, you should clear the machine inside the cake, wipe the surface of the machine dust dirt.

5). After the end of the production season after long-term storage, should be a maintenance, and squeeze the snail, squeeze the material, a cake wash and reload oil, placed in a dry place.

6). After each squeeze oil, the screw shaft to remove the cleaning residue, while the dry cloth and cotton swabs to clean the rotating mouth to prevent clogging.

Gongyi Dongxing Material Trade Co., Ltd. is located in Gongyi City and is specialized in manufacturing mechanical equipment, chemical products and water purification materials.

With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, South America, and the Middle East. Our products enjoy a good reputation among our customers.

We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.

Pre-sales
1). Guiding customers to choose the most applicable equipment model.
2). Sending engineering and technical personnel to the scene for the user planning venues, design the best process and program freely
3).  According to the special requirements of customers, design and manufacture of products.

During-sales
1). Inspect products strictly before delivery.
2). Shipping according to the contract

After-sales
1). The machine warranty period is one year and the wearing parts are three months. During the warranty period, if any quality problems arise (except for improper manual operation), we will provide free technical repairs. If the accessories are damaged, will be the fastest way to send free of charge.
2). During the installation and commissioning process, we can provide training services.
3). We can supply the machine's accessories at a very favorable price and can be repaired for life. After the warranty period, if the equipment needs repair, we only charge the cost.
4). If the equipment due to improper operation of the equipment damage, we will be responsible for maintenance, and charge the appropriate fees.

Q: How to choose oil press machine?

1.Based on your local demand of extraction custom, for example, whether your local people are customed to get oil from the heated material or the raw material, and we will suggest the exactly proper machine according to the specific seeds , nuts, beans or fruit,different oil materials should be pressed by different model or design of oil press machine,

2.Choose the professional manufacturer to ensure warranty and after sales services, we have been in the oil machine manufacture field since 1999, we only manufacture oil press machines, so we r right the professional supplier you can believe and choose;

Q: What should I do if I want to open a oil mill plant?
Equip the hydraulic oil press machine, the screw oil press machine and the auxiliary equipment, they are all essential and indispensable to invest a oil mill, and we can provide u all of those, for more, plz contact us for more information;

Q: Why I choose u as my oil press machine supplier?
1. we have our own machinery develop and research institution and we have many engineers and senior technicians here to develop and manufacture the most advanced machinery for your specific demand;
2.The main materials of our machines are all made of high hardness and heat treatment Alloy Steel, so we can guarantee its least wearing and tearing and durability;

3.We can provide u the whole solution to use this machine, including choosing the proper machine to match with your seeds, nuts, beans to extract the largest quantity of oil and install, debug and after-sale service

Packaging Details: The normal package is wooden box. If export to European countries,the wooden box will be fumigated.If container is too tight,we will use pe film for packing or pack it according to customers special request.
Delivery Detail: 10-15 working days after receipt front money.
