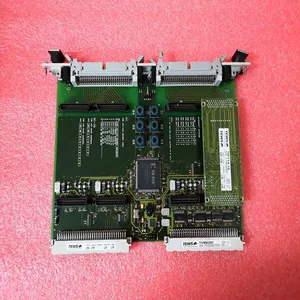

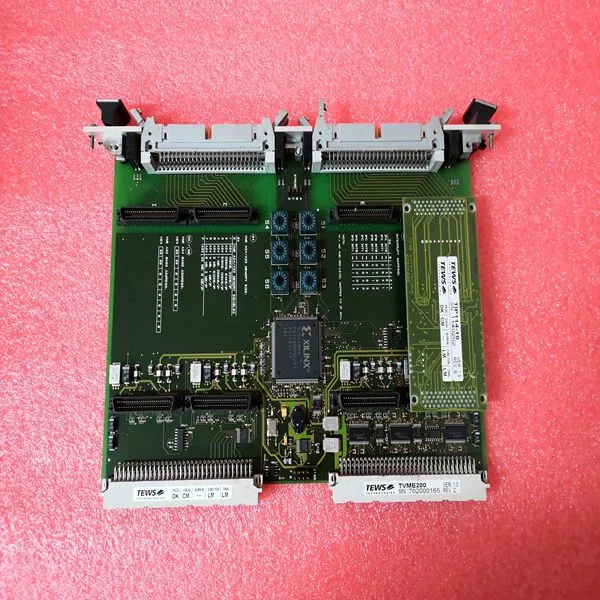

Help CenterTEWS TVME200
Related Products
Brand:TEWS TVME200
Type:TEWS TVME200
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
The CI852 FOUNDATION Fieldbus H1 interface has the following LED indicators. Technical Data Table 78. CI852 FOUNDATION Fieldbus H1 – LED Indications Indication/Color Function F(ault) /Red Unit error detected. Controlled by Control Software. Set and cleared by the Hardware during controller Reset. R(un) /Green Operating. Controlled by the Control Software. Cleared by the Hardware during controller Reset. Rx/Tx /Yellow Transmission to or from the unit. Table 79. CI852 FOUNDATION Fieldbus H1 Interface Specifications Item Description Type – FOUNDATION Fieldbus H1 master and link schedule. – Note the complete controller has a HW capability necessary for a FOUNDATION Fieldbus linking device. Number of channels Single channel FOUNDATION Fieldbus H1 (31.25 kbit/s). Protocols FOUNDATION Fieldbus H1 via port on CI852. Communication speed 31.25 kbit/s (FF H1) Allowed node address 20 – 247 Galvanic isolation By means of transformer.
Status indicators Red LED for error Green LED for run Yellow LED for traffic Connector Male 9-pin D-type connector. Current consumption from CEX-Bus 24 V 140 mA typical (200 mA max.). Power dissipation 3.4 W typical Protection Rating IP20 according to EN60529, IEC 529. Weight 700 g (1.5 lb) (package CI852K01 with CI852 and TP852) Dimensions W 59 x H 185 x D 127.5 mm (W 2.9 x H 7.3 x D 5.0 in). See Mounting Dimensions for Proper Ventilation on page 149.
• Two RS-232C ports implemented with RJ45 connectors, located on the TP853 Baseplate, (act as an extension of the onboard RS-232C port on PM8xx should more RS-232C ports be required). • Modem support • Simple DIN-rail mounting • Transmission speed selectable between 75 baud and 19200 baud. • Ready-made Software options for several protocols • Pre-set, two-letter Alpha code locking device see Table 4 on page 75, installed in unit base, prevents mounting of incompatible components. Description Provides an RS-232C channel with full modem support for each of the COM1 and COM2 ports. A modem (for example TC562) will be required if the cables extend beyond 15 m.
